500kg/1000kg Pickup Jib Crane with Battery 12V/24V Powered
Lyfoo Industry Co., Ltd.- Power Supply：12,24V
- Single Line Lifting Capacity Max：500kg
- Double Line Lifting Capacity Mini：800kg
- Reach Max(From Center of Rotation)：1490mm
- Rotation with Brake：360 Manual
- Switch Cable：4.2m
Base Info
- Mounting Base：250*250*18mm
- Sling Type：Wire Rope
- Power Source：Electric
- Application：Car or Truck
- Transport Package：Wooden Package
- Specification：CE
- Trademark：LYFOOCRANE
- Origin：Zhejiang, China
- HS Code：84253190
- Production Capacity：1000units,Month
Description
Basic Info.
Mounting Base 250*250*18mm Sling Type Wire Rope Power Source Electric Application Car or Truck Transport Package Wooden Package Specification CE Trademark LYFOOCRANE Origin Zhejiang, China HS Code 84253190 Production Capacity 1000units/MonthProduct Description

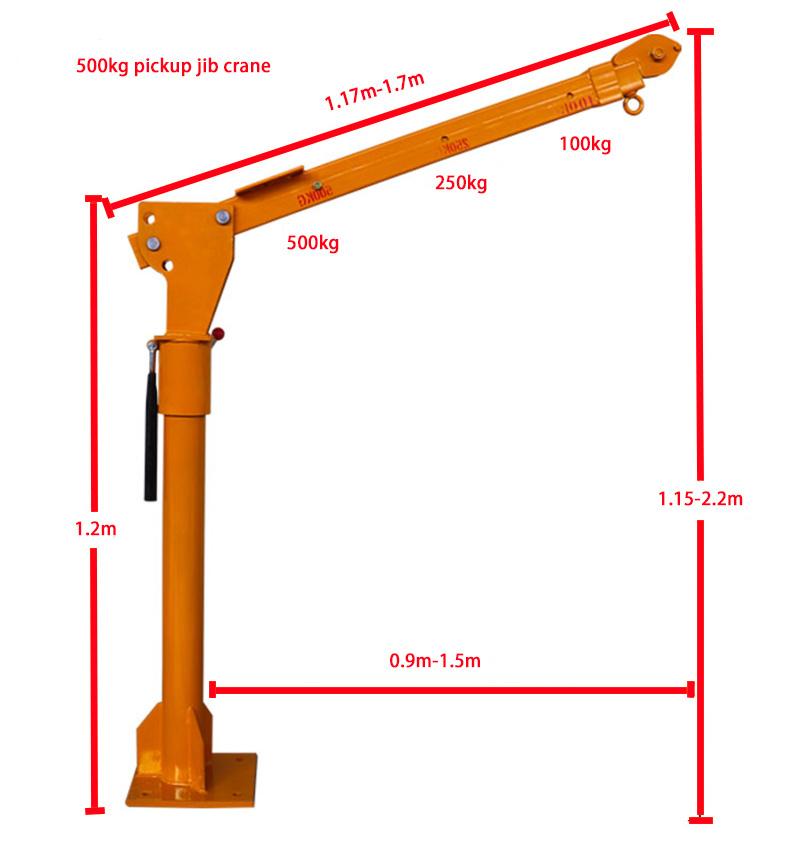

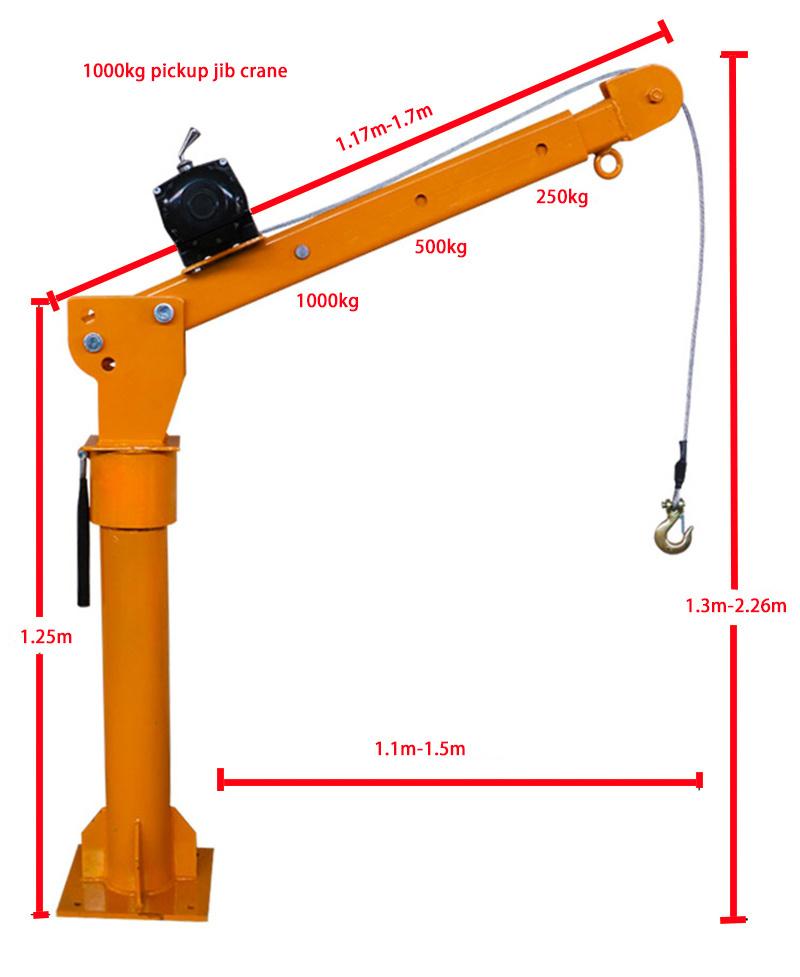

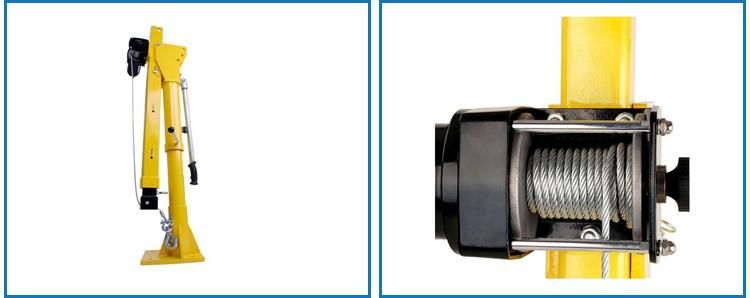

Portable truck lifter 12V power supplyPickup Jib Crane
A battery powered useful tool for loading and unloading trucks. You do not need any other power source, but the battery on your truck. The pickup jib crane can give a 1000kg lifting capacity maximum and to meet most of loading works.
- Extentional arm to 1.94m maximum
- 250kg to 1000kg loading range

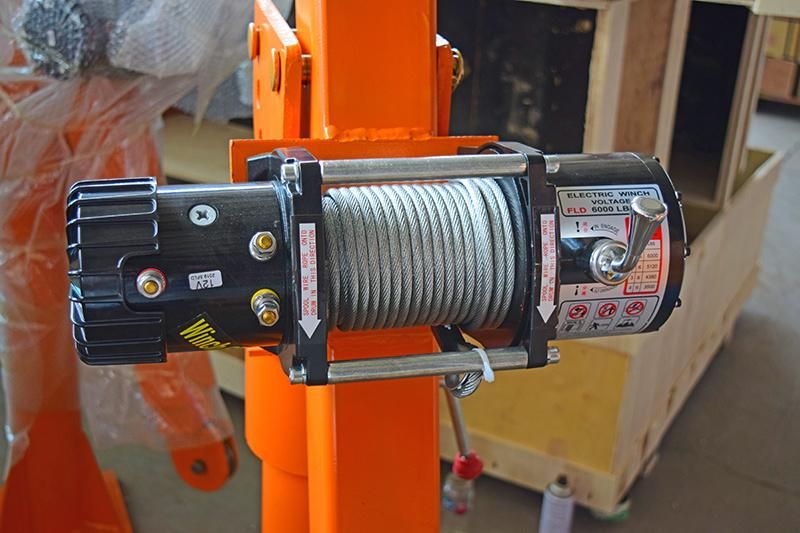

- 12v battery powered directly from the truck battery
- Adjustable arm angle against the pillar
- Easy assemble and deassembly manually
The pickup jib has been packaged by a hard cartoon box with dimensions of 60mm*400mm*1600mm, and can be delivered within 7 working days.
1. This truck crane power is from truck battery
2. Easy to operate and portable
3. Popular in European
Technical Parameter
| Max Single line lifting capacity | 500kg |
Max Double line lifting capacity | 800kg |
Lifting Height max. Std . (base to hook ) | 1940mm |
Reach Max (from center to rotation ) | 1490mm |
Rotation (continuous ) with Brake | 360 Manual |
Lifting Cable | 4.8mmx4.5m -1pc (for single line lifting ) |
Lifting Cable | 4.8mmx5.5m -1pc (for double line lifting ) |
Line speed with No load | 3.6m/min single line |
Power requirements | 12V DC 125 amps |
Switch Cable | 4.2m |
Mounting Base | 250*250*18mm |
Mounting Bolt Hole Pattern | 170*170mm |
Finish | Powder Coated |
Net Weight of Crane |
