AC Power 14m Vertical Double Aluminum Lift
Jinan Morn Technology Co., Ltd.- Application：Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Weight Level
- Moves：Moving
- Driven Type：AC
- Running Mode：Moving
Base Info
- Model NO.：TAM0.2-14
- Feature：Insulating
- Certification：CE, ISO 9001
- Platform Height：14m
- Loading Capacity：200kg
- Platform Size：1.45*0.6m
- Working Height：16m
- Voltage：AC220,50Hz,1 Phase
- Transport Package：Plywood Cases
- Specification：1.66*1.10*2.35m
- Trademark：MORNLIFT
- Origin：China
- HS Code：842890
- Production Capacity：50unit,Month
Description
Basic Info.
Model NO. TAM0.2-14 Feature Insulating Certification CE, ISO 9001 Platform Height 14m Loading Capacity 200kg Platform Size 1.45*0.6m Working Height 16m Voltage AC220/50Hz/1 Phase Transport Package Plywood Cases Specification 1.66*1.10*2.35m Trademark MORNLIFT Origin China HS Code 842890 Production Capacity 50unit/MonthProduct Description

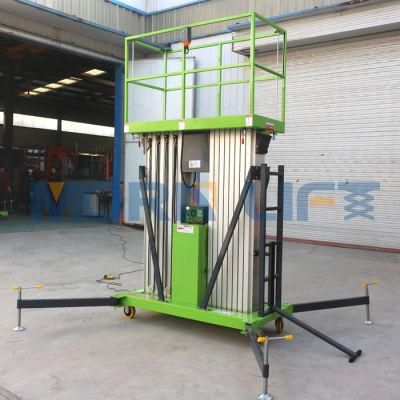

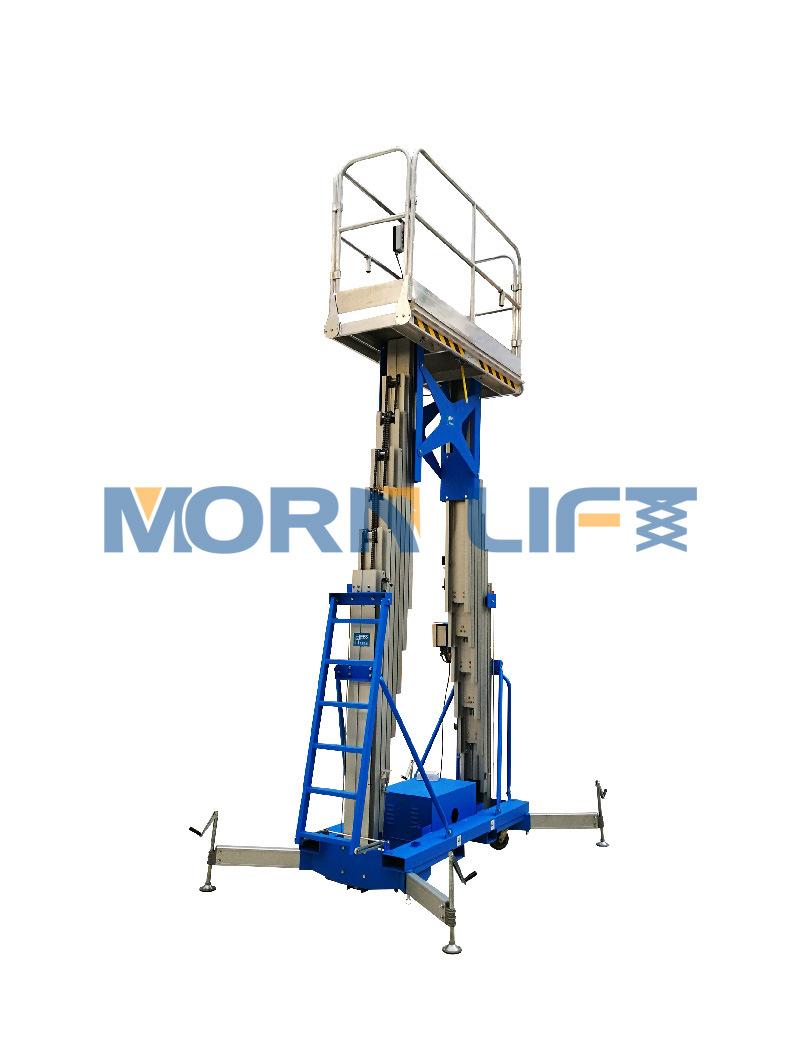

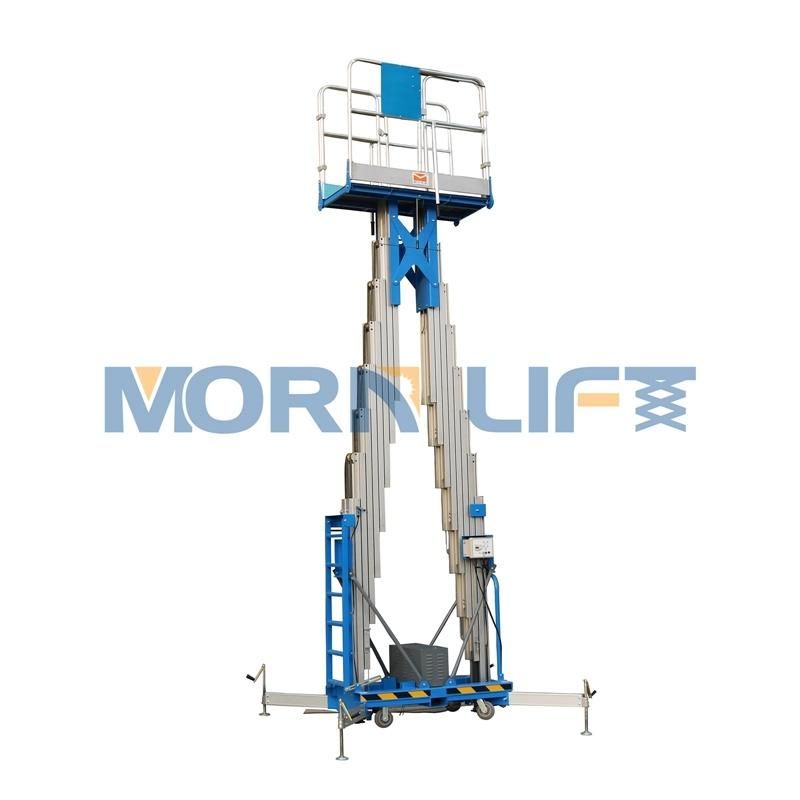

Product Description Push around man liftne man lift uses high strength aluminum section bar to produced. Featured by it's beautiful appearance, small volume, light self-weight, good stability, and flexible operation. The vertical mast aluminum hydraulic man lift has one, two, three or four masts according to the different heights..
Specification
aluminum hydraulic man lift mainly composed by aluminum mast, work platform, basement, control system, wheels and supporting legs. The main featured parts are showing in the below.1. easy to operation up/down on platform and ground

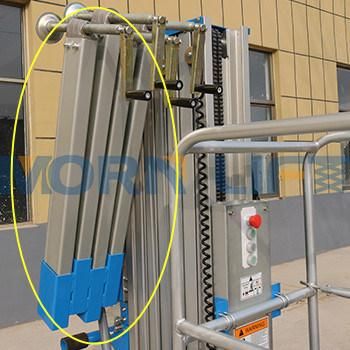

2. double chains improving the safety and make the strong

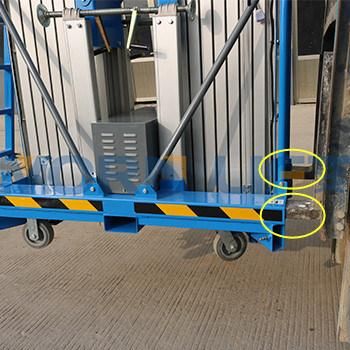

3. outrigger guarantee stability of machine when work, no use before open outrigger.
4. Hydraulic pump is the first brand in China.

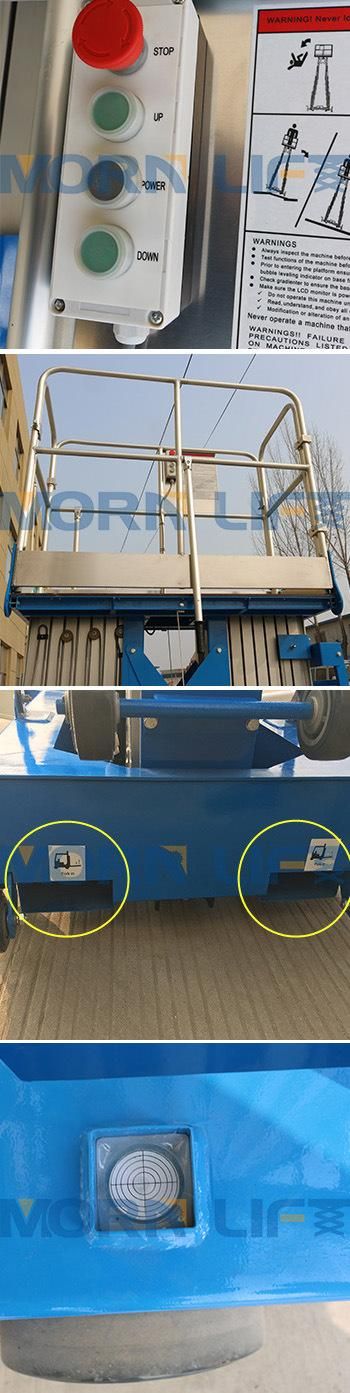

5. Emergency descend valve platform lowered when power interruption
detail discription
