• Model NO.：XGA26
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001, EPA
• Transport Package：Container or Roro Vessel
• Specification：20m lifting height
• Trademark：China brand
• Origin：China

ItemUnitParametera. Overall length of complete machinemm11280b. Overall width of complete machinemm2490c.  Overall heightmm3000d.  Wheelbasemm3000Max. working heightm26.38Max. platform heightm24.38Max. working rangem18.9Max. carrying weightkg230Scope of luffing of No. 1 arm°-1 ~ +70Scope of luffing of No. 2 arm°-35 ~ +68Slewing angle of turntable°360°Max. Tail swingmm1330 (boom lifting) Dimension of platformmm2400×900Slewing angle of platform°160Overall weightkg17800Max. traveling speedkm/h5Min. turning radiusm4.2m(Four-wheel steering) / 6.7m(Two-wheel steering)Min. ground clearancemm260Max. gradeability%45Specification of tire-18-625Engine model-Cummins QSF2.8 71BHP Engine rated powerkW/(r/min)53/(2200)ItemUnitParametera. Overall length of complete machinemm11280b. Overall width of complete machinemm2490c.  Overall heightmm3000d.  Wheelbasemm3000Max. working heightm26.38Max. platform heightm24.38Max. working rangem18.9Max. carrying weightkg230Scope of luffing of No. 1 arm°-1 ~ +70Scope of luffing of No. 2 arm°-35 ~ +68Slewing angle of turntable°360°Max. Tail swingmm1330 (boom lifting) Dimension of platformmm2400×900Slewing angle of platform°160Overall weightkg17800Max. traveling speedkm/h5Min. turning radiusm4.2m(Four-wheel steering) / 6.7m(Two-wheel steering)Min. ground clearancemm260Max. gradeability%45Specification of tire-18-625Engine model- QSF2.8 71BHP Engine rated powerkW/(r/min)53/(2200)


Advantages and highlights:

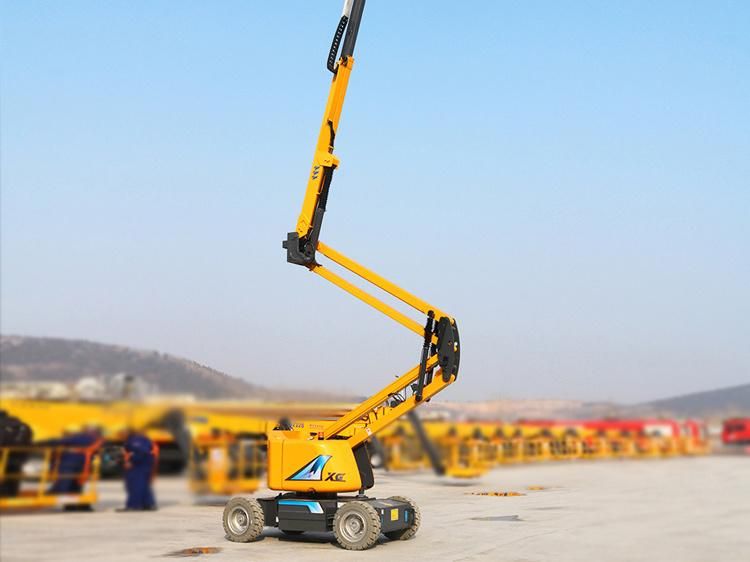

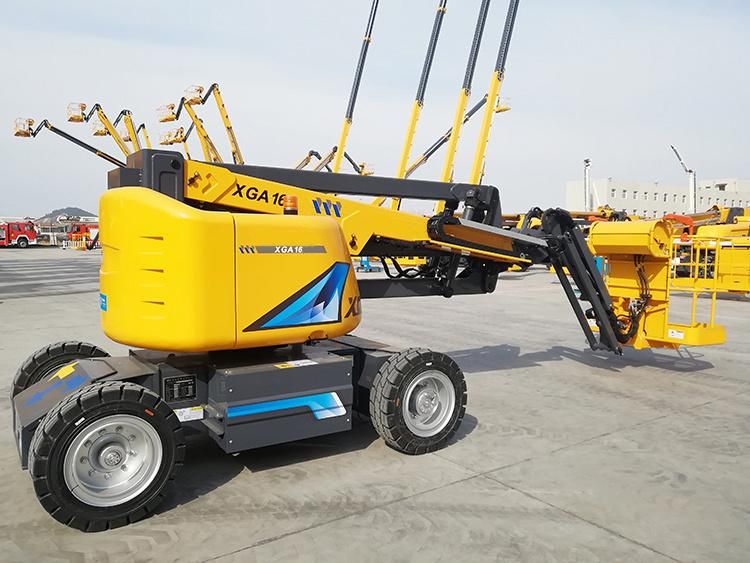

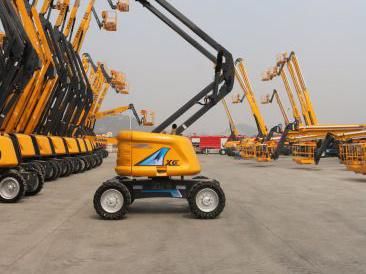

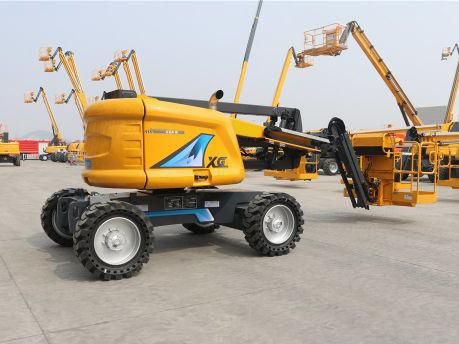

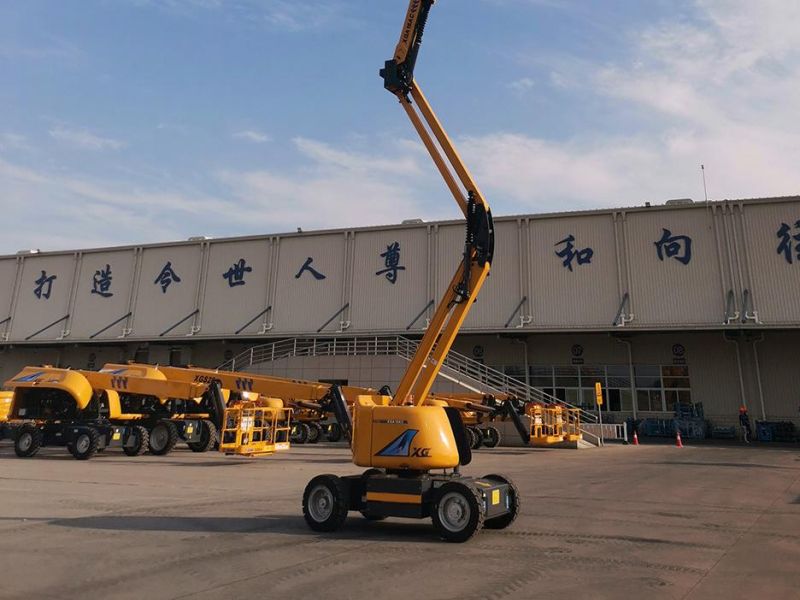

* Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles; the platform can turn 160°, creating a wider operation area; compact and narrow turntable eliminates tail swing and improves operation efficiency;

* Off-road chassis, 4W drive system, solid off-road wide tire, full-time axle balance system, 38kw power, excellent adaptation to any terrain. Work platform is enable to extend out, enlarging the work space, together with the foldable fence making the transportation easier.

* Full - range work; direct and friendly control panel easy to control; precise and effective electric-hydraulic proportional system Chassis tilting protection, platform overloading warning, emergent lowering, safety speed limit, flexible start/stop technologies.
