Marine Electric Hydraulic Windlass with ABS BV Class
Henan Nucrane Machinery Co.,Ltd.- Type：Hydraulic Winch
- Driven Type：Hydraulic
- Speed：10m,Min
- Carrying Capacity：Weight Level
- Tonnage：50ton
- Reel Number：2
Base Info
- Model NO.：HYNE-55
- Running Mode：Moving
- Feature：Ship Deck Hydraulic Winch
- Certification：GS, CE, ISO 9001, BV,SGS,Rmrs
- Standard：National Standards
- Hydraulic Winch Drum Capacity：600mm*38mm
- Deck Hydraulic Winch Rated Pull：25ton*10m,Min,40ton*10m,Min
- Boat Winch Clutch Assembly：Hyfraulic Operated Dog Clutch
- Hydraulic Winch Ratch Assembly：Hanual Operated
- Ship Winch Brake Assembly：Hydraulic Operated
- Single Drum Hydraulic Winchbrake Holding：80ton(1st Layer,Static)
- Double Drum Winch Control：Local Contral Stand&Remote Control
- Hydraulic Winch Color：Red,Yellow or Customer Requirements
- Transport Package：20 or 40 Feet Containers
- Specification：5310*2650*6500mm
- Trademark：Nucrane
- Origin：Taixing City
- Production Capacity：1500sets,Years
Description
Warping load(kn)AM2 AM3 AM2 AM3 AM2 AM3 17.5 17.5 13 14.6 19.5 21.9 80 115 9 8 19 19 15.3 17.2 23.0 25.8 95 135 9 10 20 20 17.9 20.0 26.9 30.0 110 157 9 10 22 22 20.6 23.0 30.9 34.5 126 180 9 15 24 24 24.5 24.4 36.8 41.1 149 214 9 20 26 26 28.7 32.1 43.1 48.2 175 150 9 20 28 28 33.3 37.2 50.0 55.8 202 289 9 20 30 30 38.3 42.8 57.5 64.2 231 330 9 30 32 32 43.5 48.6 65.3 72.9 261 374 9 30 34 34 49.1 54.9 73.7 82.4 294 421 9 30 36 36 55.1 61.6 82.7 92.4 329 470 9 30 38 38 61.4 68.9 92.1 103.4 365 522 9 40 40 40 68 76.0 102.0 114.0 402 576 9 40

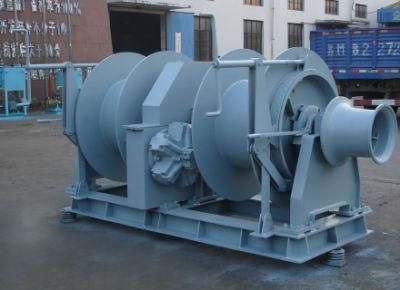

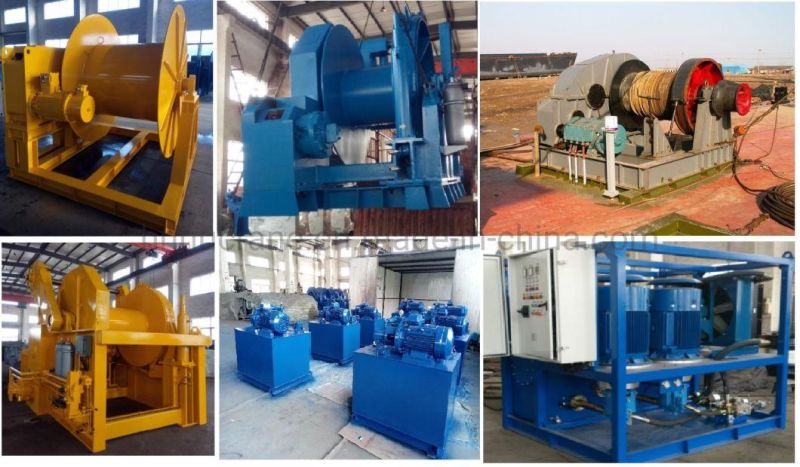

The windlass is a mechanical device for throwing, lifting and retracting the anchor. It is located at the bow of the ship.The roller on both sides of the sprocket wheel can be used for twisting and retracting ropes.Windlass can be divided into human windlass, electric windlass and electric hydraulic windlass according to different power.At present, the Marine windlass is mainly electric hydraulic windlass and electric windlass
4.In order to send you a most suitble model we need confirm the following information.
1), what is the winch pulling capacity?
2),what is the winch wire rope length?
3),what is the wire rope diameters?
4)You need the winch with single or double drum?and per drum pulling capacity?
5),what is the winch working environment?
6),Are you need power pack?
if you have inquiry, pls contact me freely
