Stationary Scissor Lift with Flap

Chenlift (Suzhou) Machinery Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Middle-Level
  • Moves：Stationary
  • Driven Type：AC
  • Running Mode：Stationary

Base Info

  • Model NO.：SJG
  • Certification：CE, ISO 9001
  • Stowed Height：600mm
  • Max Height：2500mm
  • Load Capacity：6800kg
  • Platform Size：4450*3780mm
  • Travelling Height：1900mm
  • Lift Motor：5.5kw
  • Power Voltage：380V 50Hz
  • Pit Size：4520*3855*2000mm
  • Cylinder：140*2
  • Gear Pump：5.8ml,R
  • Oil Presure：13.5MPa
  • Rise Time：65s
  • Roller Diameter：76
  • Roller Gap：100
  • Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
  • Specification：6800kg and 1.9m height
  • Trademark：CHEN LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：3000 Units Per Year

Description

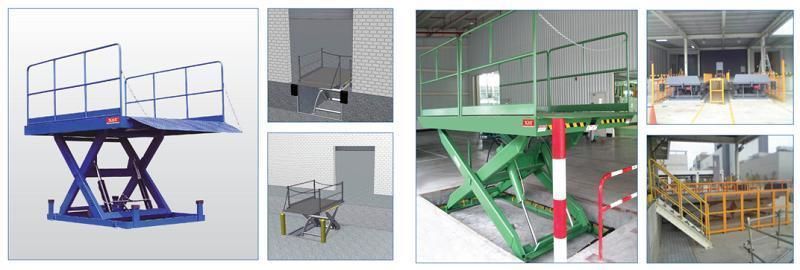

Multi-ForksSJG1-4.11913410050132200X10003931160SJG2-3.52722350042222100X1500485.52100SJG3-7.231050720082503400x15001177.55500Stationary Scissor Lift with big platform size Stationary Scissor Lift with Flap Pit mounted scissor lift with fence and lipsStationary Scissor Lift with FlapStationary Scissor Lift with flap sheetStationary Scissor Lift with FlapCompany IntroductionChenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.  We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and AfricaStationary Scissor Lift with Flap

Fabrication Equipment:Stationary Scissor Lift with Flap

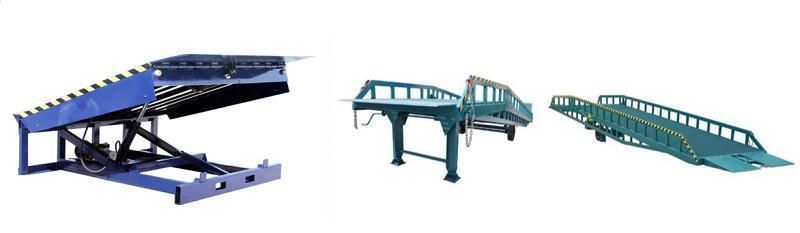

 Other Related productsStationary Scissor Lift with Flap
