• Model NO.：VT
• Condition：New
• Color：Orange
• Product Name：High Quality 3 Ton 5 Ton 10 Ton Chain Hoist 3 Mete
• OEM：Available
• Bearing：Yes
• Transport Package：Cartons,Wooden Case
• Specification：Capacity: 0.5ton -30ton
• Trademark：OEM
• Origin：China
• HS Code：8425190000
• Production Capacity：50000,Year

Product Parameter of hand manual chain pulley block 2ton Model HS-VT 1/2HS-VT  1HS-VT  1.5

HS-VT  2

HS-VT  3HS-VT  5 HS-VT  10HS-VT  20HS-VT 30HS-VT  50Capacity(t) 0.51 1.52 3 5 10 20 30 50 Standard lift(m) 2.52.5 2.5 3 3 3 3 3 3 3 Running test load(t) 0.751.5 2.25 3 4.5 7.5 15 30 45 75 No.of falls of load chain 111 1 2 2 4 8 12 24 Load chain diameter(mm) 56.3 7.1 8 7.1 9 9 9 9 9 Dimension(mm) A 129149.5 157.5 161.5 151.5 163 207 215 350 406             B 136 145164.5 187 164.5 211 398 650 680 962             C 270317 399 414 465 636 798 890 1380 2587 Net weight(kg) 8.4 1216.2 20 24 41 79 193 220 1092 Packing(L*W*H)(cm)

22x14

x15

25x19

x16

33x24

x16

33x24

x19

34.5x24

x16

40x30

x19

48x42

x18.5

78x68

x20

85x67

x30

110x100

x130





 introduction of hand manual chain pulley block 2ton Gear:  Manual chain pulley block 5Ton  is innovated symmetrical arrayed highspeed synchronous gears,and are made form international standard gear steel.Compared with common gears,they are more wearable and steadier,and more laborsaving.Chain: manual chain pulley block adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling;multi-angle operation(with 45 degree).Conditions; Multi-angle operation(with 45 degree).Hook: made of high-class alloy steel,it has high strength and high security;by using new design,weight will never escape.Switch: using limit switch component in designation to protect chain and ensure security.Components:  main components are all made of high-class alloy steel,with high precision and security.Plastic Plating: by adopting advanced plastic plating technology inside and outside,it looks like a new one after years of operation.Encloser:mual chain pulley block is  made of high-classed steel,more firmly and dexterous

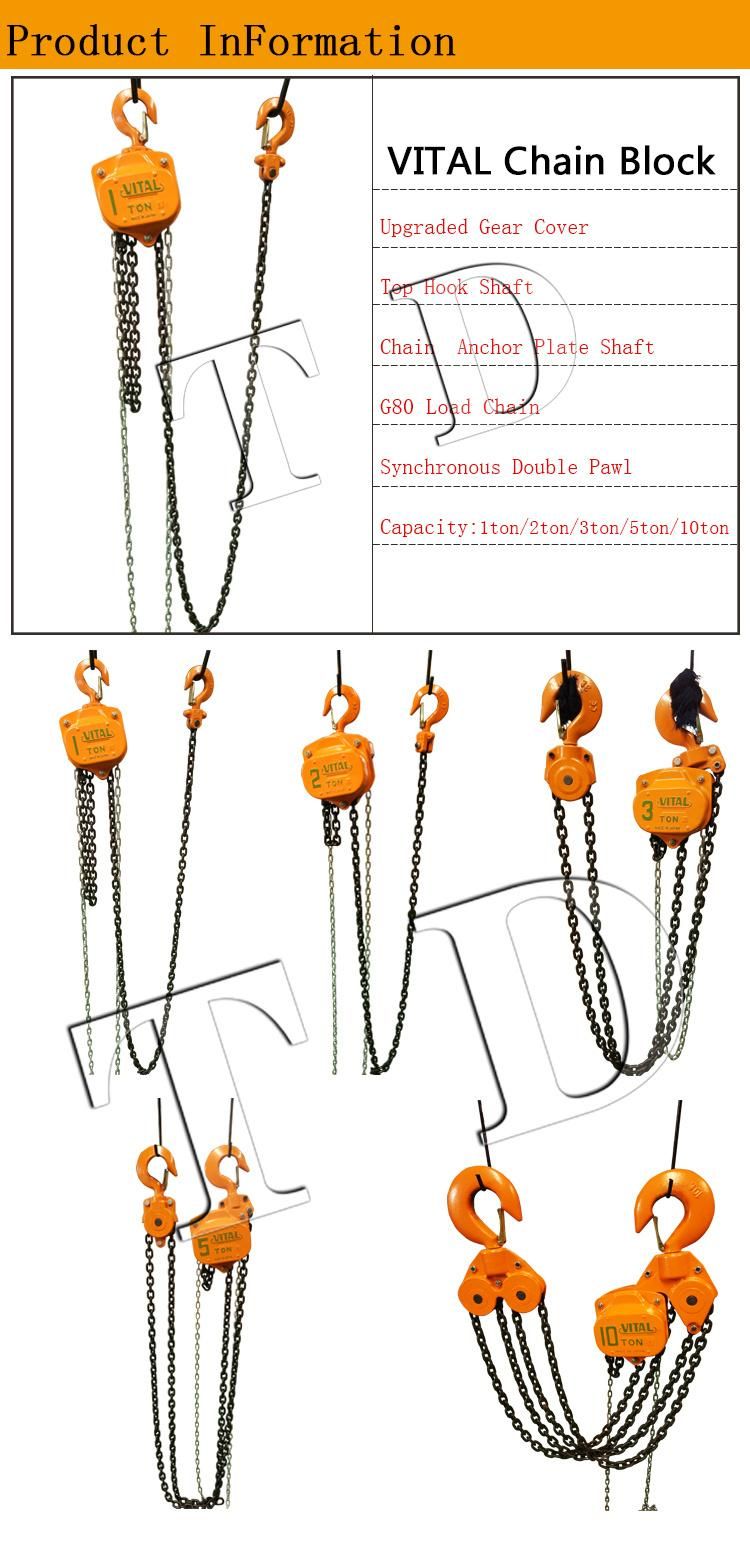

Features of  hand manual chain pulley block 2ton 1.  manual chain pulley block 5Ton is Specially heat-treated and proof tested steel chain hoists equipped with a safety guard.2.  manual chain pulley block 5Ton Got certificate of ISO9001&CE&GS3. Ratchet type brake warrants, safe and dependable operation4. Standard lift heights is 2.5-3.5 meters and optional lift heights also available upon request 5. Automatic double-pawl braking system. 6. Drop forged hooks and hook holders to ensure superior quallity and safety.7. More thickness of sheet cover,gear cover and side plates for good quality.8. The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one.9. Complies with EC Council Directive 2006/42/EC Machinery, ASME B30.16, AS 1418.2.





Just feel free contact us,we are always at your service
