• Model NO.：ZA14JE
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, ISO 9001
• Work Height：16m
• Platform Height：14m
• Horizontal Outreach：7.50m
• up and Over Height：7.74m
• a - Stowed Length：6.6m
• B - Stowed Width：1.75m
• C - Stowed Height：2m
• D - Platform Length：1.52m
• E - Platform Width：0.76m
• F - Wheelbase：2.05m
• G - Ground Clearance：200mm
• Platform Capacity：230kg
• Drive Speed：6.1km,H
• Gradeability：30%(17°)
• Turning Radius (Inside)：0.79m
• Transport Package：Wooden
• Trademark：ZOOMLION
• Origin：Hunan China
• Production Capacity：1000units Per Month

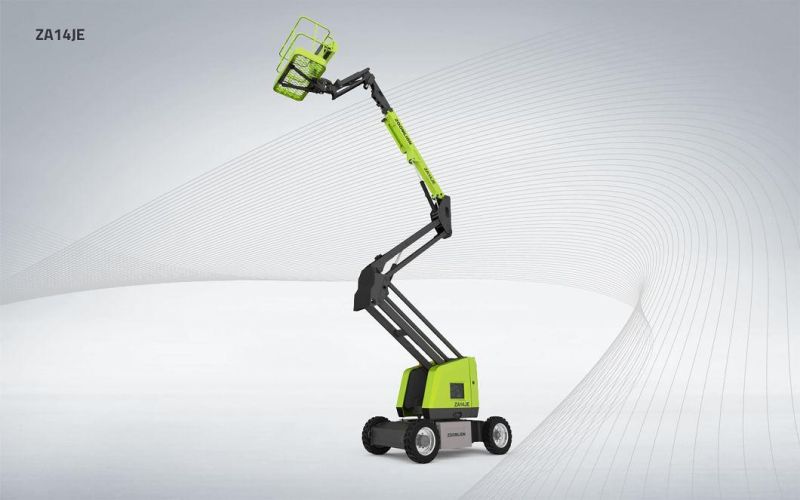

Electric Articulating Boom LiftsComply with CE/ANSI/GB StandardModel ZA14JESizeWork Height16mPlatform Height14mHorizontal Outreach7.50mUp and Over Height7.74mA - Stowed Length6.6mB - Stowed Width1.75mC - Stowed Height2mD - Platform Length1.52mE - Platform Width0.76mF - Wheelbase2.05mG - Ground Clearance200mmPerformancePlatform Capacity230kgDrive Speed6.1km/hGradeability30%(17°)Axles OscillationTurning Radius (Inside)0.79mTurning Radius (Outside)3.15mSwing360°   continuousPlatform Rotation±90°H-Tail Swing0mMax. Working Slope2/4°Max. Wind Speed12.5m/sPowerBattery24×2V/320AhCharger48V/60ADrive MotorAC 32VLift MotorDC 48VAuxiliary PowerManual PumpHydraulic Tank Capacity30LTireType240/55D17.5 Foam-filled TiresWeightGross6800kgHighlightsZA14JECenter layout, great structural rigidity, and small boom deflectionAdvanced dual control system (valve control + pump control) offers a energy-saving and smooth controlAccurate and efficient traveling AC drive system provides strong power and stable controlFeaturesStandard FeaturesProportional controlAll motion alarmFlashing amber beaconSelf-closing entry gateEmergency descent systemEmergency stop buttonAuto-leveling systemOn-board diagnostic systemOver tilt protection systemLoad sensing system4.3' LED displayHornAccessories & OptionsAC power to platformAirline to platformNon-marking tireHotline: +86 400-800-0157 Add: ZOOMLION Wangcheng Industrial Park, Tengfei Road 997, Wangcheng District, Changsha, Hunan, PRC.Zip Code: 410200
