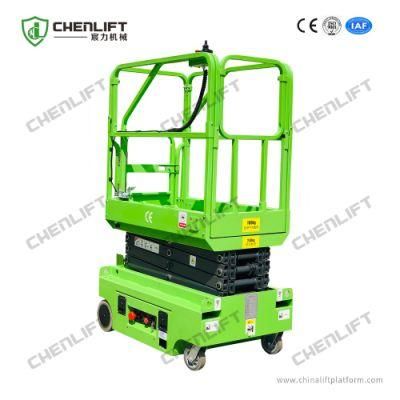

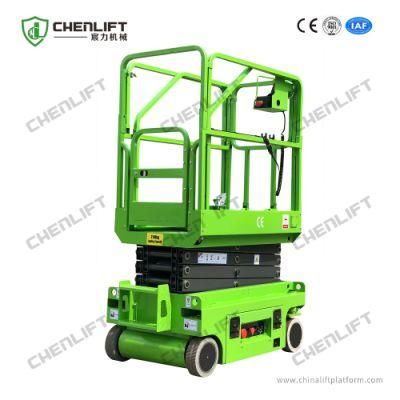

• Model NO.：MX1000S
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Platform Height：10m
• Working Height：12m
• Loading Capacity：320kg
• Lifting Power：3.3kw
• Gradeability：25%
• Platform Size：2.27*1.12m
• Platform Extension Length：0.90m
• Extension Loading：113kg
• Wheelbase：1.87m
• Power Source：4*6V,240ah
• Transport Package：PVC Film Wrapped in Pallet
• Specification：2.43*1.15*1.91m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：2000 Units Per Year

Model MX580SMX600SNMX800SNMX800SMX1000SMX1200SLoad230 kg230 kg230 kg450 kg320 kg230 kgExtension Load113 kg113 kg113 kg113 kg113 kg113 kgPlatform Height5.8 m6 m8 m8 m10 m11.8 mWorking Height7.8 m8 m10 m10 m12 m13.8 mPlatform Size1.67*0.74m2.27*0.81m2.27*0.81m2.27*1.12m2.27*1.12m2.27*1.12mPlatform Extension Length0.9 m0.9 m0.9 m0.9 m0.9 m0.9 mLift/Drive Motor24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/4.5 kw

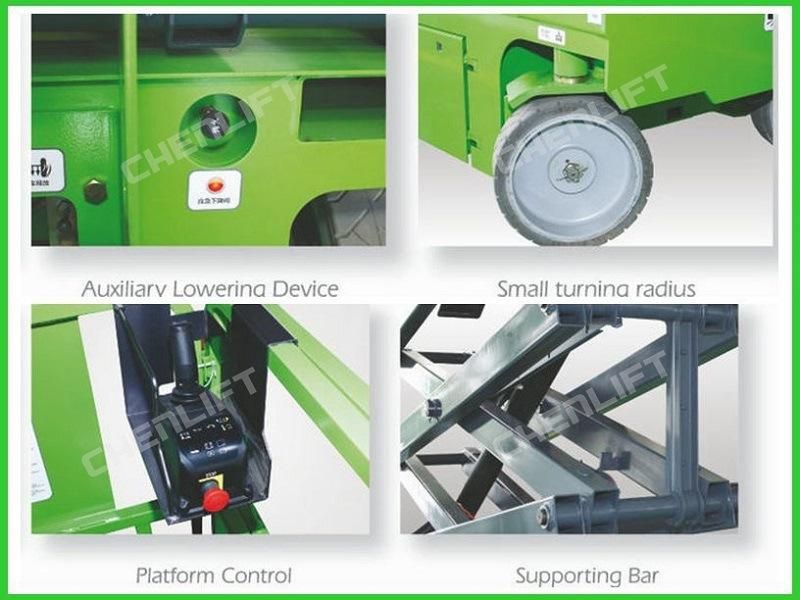

Details


Safety Precaution

• Auxiliary Lowering Devices
• Anti-burst System
• Emergency Stop Button
• Tilting Protection System
• Charging Protection System
• Automatic Pothole Protection
• Automatic Braking System
• Buzzer and Horn

Our Company
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa


Certificates


Factory Equipment


Client &Exhibition


Other Related Products


Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
