• Quantity of Suction Caps：4 PCS, 6 PCS, 8 PCS, Customized
• Suction Cap Diameter：300mm
• Hydraulic Motor：24V,2000W
• Drive Motor：24V,900W
• Suction Plate Size：Customized as Need
• Battery：2X12V,70ah to 2X12V,160ah, for Various Modes
• Operation Mode：Walking Type or Self Propelled Type
• Charger：24V,20A
• Working Principle：Hydraulic Lifting and Vacuum Sucking
• Certificate：CE
• Machine Weight：1200kg to 1600kg
• Packing：Wooden Box
• Transport Package：Wooden Case
• Specification：10CBM
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：50000 Set Per Year

Basic Info.

Quantity of Suction Caps 4 PCS, 6 PCS, 8 PCS, Customized Suction Cap Diameter 300mm Hydraulic Motor 24V/2000W Drive Motor 24V/900W Suction Plate Size Customized as Need Battery 2X12V/70ah to 2X12V/160ah, for Various Modes Operation Mode Walking Type or Self Propelled Type Charger 24V/20A Working Principle Hydraulic Lifting and Vacuum Sucking Certificate CE Machine Weight 1200kg to 1600kg Packing Wooden Box Transport Package Wooden Case Specification 10CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 50000 Set Per Year

Product Description

Self Propelled Electric Hydraulic Vacuum Lifter Machine

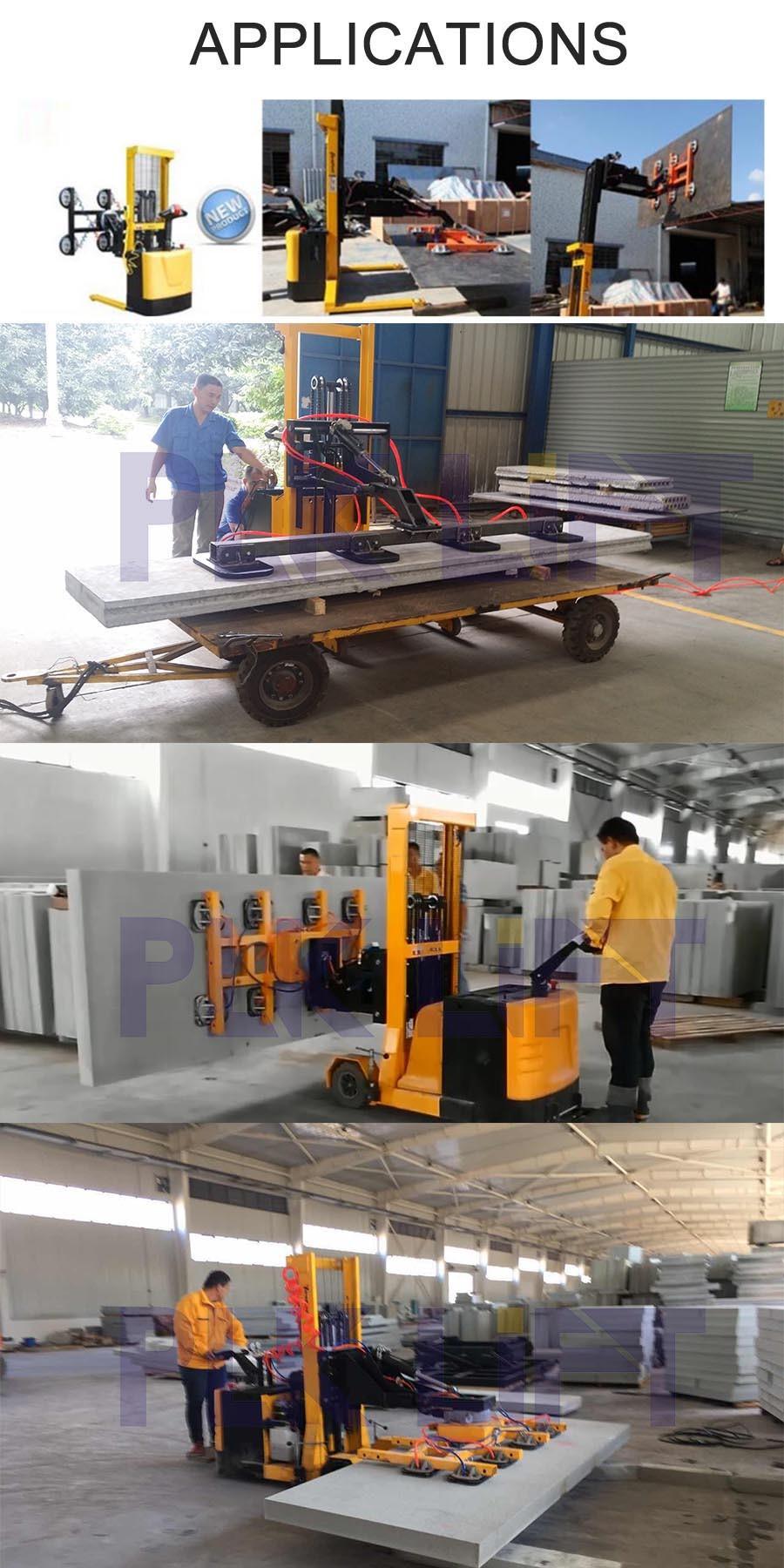

PLK LIFT - GL-HD series vacuum lifter robot is specially designed for handling different kinds of heavy plate, board and glass, especially when you need to pick up the board and move to the cutting machine. It is very good tool for moving various kinds of material to the CNC machines for further processing. Easily handle lifting and moving with vacuum suction caps and powerful drive system.


Model	GL-HD-8015(6)	GL-HD-8025(8)	GL-HD-6015(4x30)	GL-HD-4015(4x30)
Max. Load Capacity	800kgs	800kgs	600kgs	400kgs
Safe Load Capacity	400kgs	400kgs	300kgs	200kgs
Lifting Height	1500mm	2500mm	1500mm	1500mm
QTY of Caps (customized)	6pcs	8pcs	4pcs	4pcs
Cap Diameter	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Plate Size (or customized)	3660x2440mm	3660x2440mm	2440x1830mm	1220x1830mm
Drive Motor	24V/900W	24V/900W	24V/700W	24V/500W
Hydraulic Motor	24V/2000W	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/160Ah	2x12V/160Ah	2x12V/100Ah	2x12V/70Ah
Charger	24V/20A	24V/20A	24V/15A	24V/10A

Advantages

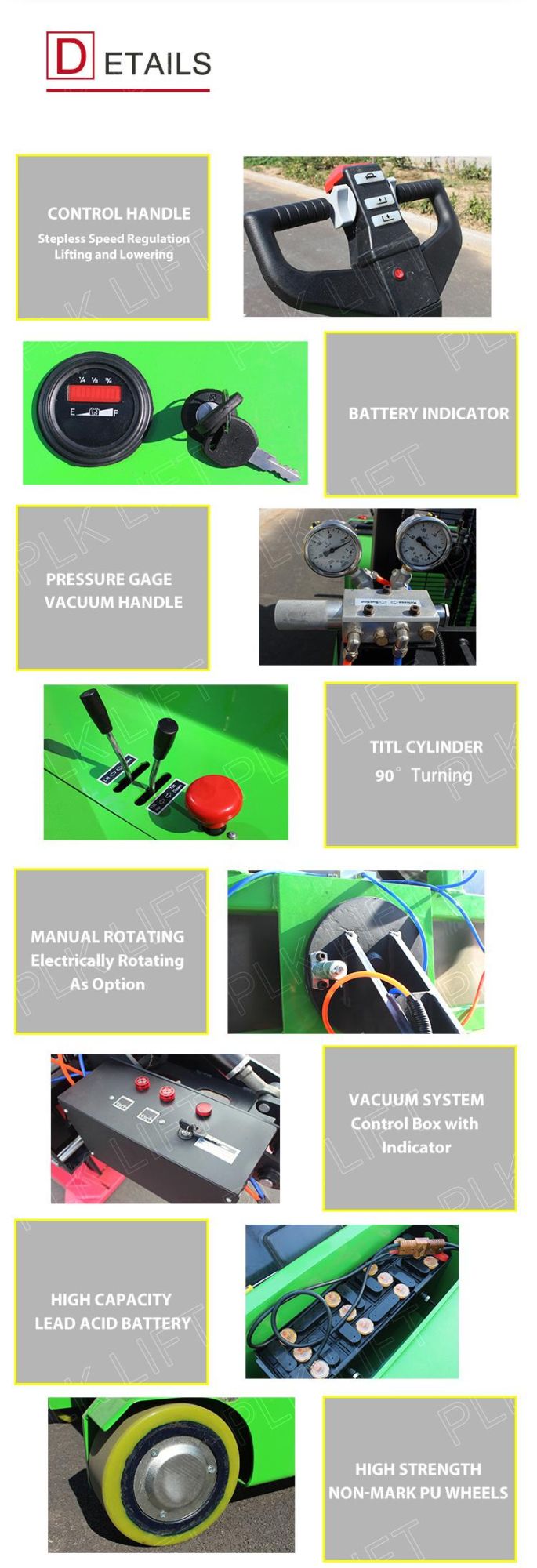

1. Integrated control system secures quick and automatic positioning vertically and horizontally.
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
3. Attractive price, staff saving, strong improvement of working environment.
4. Vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.

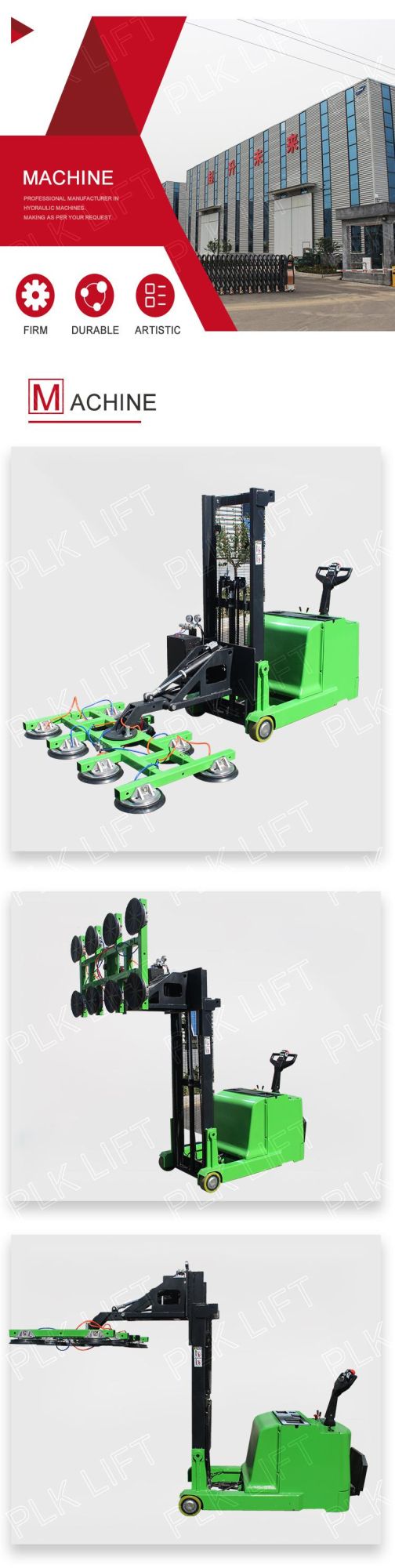

Machines Display:
