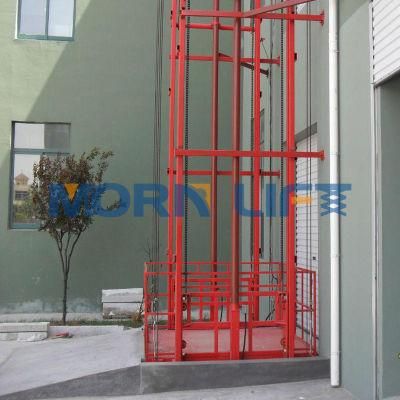

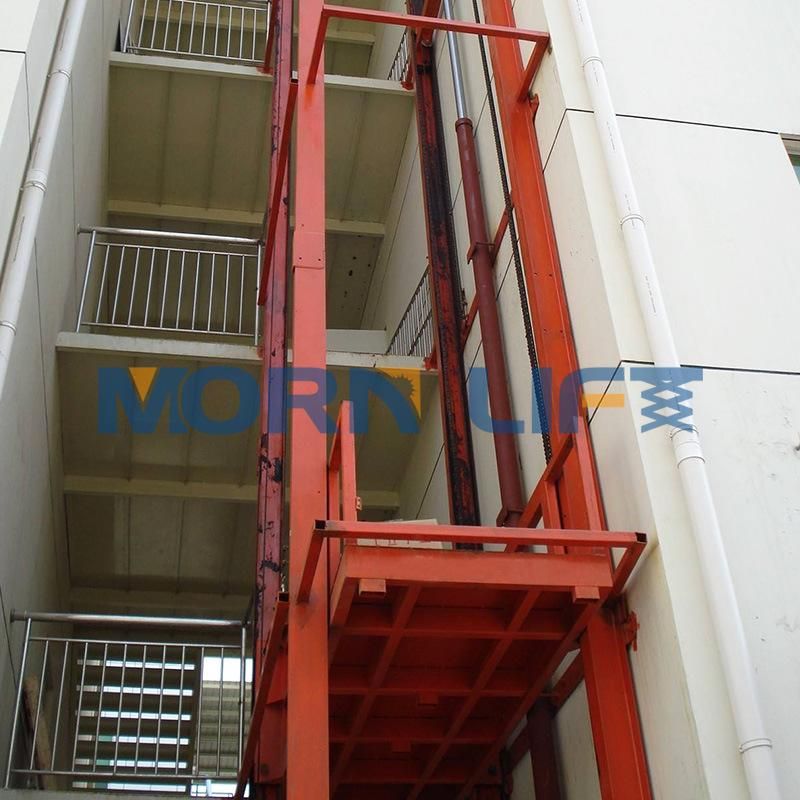

4 Floors Hydraulic Chain Lift Platform
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Special Weight Level
- Moves：Stationary
- Driven Type：AC
- Running Mode：Stationary
Base Info
- Model NO.：LRL2-11.5
- Feature：Explosion-Proof
- Certification：GS, CE, ISO 9001
- Platform Size：According to Request
- Lifting Height：From 1m to 20m
- Load Capacity：300kg to 100t
- Color：According to Request
- Lifting Speed：4-6m,Min
- Guardrail：Optional
- Wire Mesh Around：Optional
- Doors：Optional, Manual or Aotumatic
- Stops：2-8
- Installation Manual：Provided
- Transport Package：Plywood Case
- Specification：CE, SGS
- Trademark：MORN
- Origin：Shandong China
- HS Code：8428909090
- Production Capacity：200 Units Per Month
Description
For exact quotation, please tell us the lifting height, load capacity and platform size needed.
5. Application:
1) Cargo lifting. Mainly used between floors, from lower to upper or from upper to lower. Can deliver goods or forklift.
2) Car lifting. Long platform and heavy duty lift used for car lifting.
6. Packing:
The hydraulic cargo lift will be separated when finished production. It is firstly packed by films, then be packed into plywood cases.
When the lead rail is too long, then can be directly fixed in the container.
7. Installation:
1) Can be installed in pit or without pit. If you don't have pit, it can be directly installed onto the concreted ground, and we will make a ramp for easy operation.
2) Installation manual, detailed drawings, and user manual will be provided with the shipment, which can help customer easily install.
8. Safety Precaution:
1) Hydraulic elevators not only have all safety device of the traditional elevator, but also have the special safety system hereinafter.
2) Spillover valve, it can prevent high pressure when the machine moves up.
3) Manual emergency valve, it can go down to the nearest floor and open the door when you meet an emergency.
4) Manual pump: it can move up the nearest floor and open the door when you meet an emergency.
5) Pipe fracture valve, when the hydraulic system pipe fracture, it can cut down the channel of the oil to stop the falling.
6) Temperature protection, when the temperature of the hydraulic oil is substandard, the machine will stop working until the temperature reverts to the safe standard.
9. Morn service:
1) Installation drawing and manual will be provided after the order.
2) All the machines will be full tested before shipment.
3) The total machine guarantee is 12 moths.
4) 24 Hours technical support, email, telephone or video online.
5) User-friendly English manual for machine using and maintaining.
6) Several sets wearing parts will be free for you.
