• Model NO.：400T
• Voltage：380V
• Tension Stroke：300
• Rated Oil Pressure：50MPa
• Theoretical Tension Strength：2093 Kn
• Transport Package：Plywood Case
• Specification：60T
• Trademark：AMITYCARE
• Origin：China
• HS Code：84798190
• Production Capacity：300pieces,Year

S/nr.
Item
YC100
YC120
YC200
YC300
YC600
1
Rated oil pressure
46Mpa
32Mpa
43Mpa
37Mpa
48Mpa
2
Tension stroke
200
200
200
300
300
3
Plunger area,tension cylinder
212.64cm²
418.6 cm²
452.4 cm²
790 cm²
1209.7 cm²
4
Theoretical tension strength
1063KN
2093KN
3000KN
3955KN
5950KN
5
Plunger area,back stroke cylinder
106.8 cm²
171.3 cm²
216 cm²
311 cm²
572.27 cm²
6
Diameter of feed through hole
74mm
104mm
112mm
144mm
175mm
7
Net pitch between supports
150
210
210
370
470

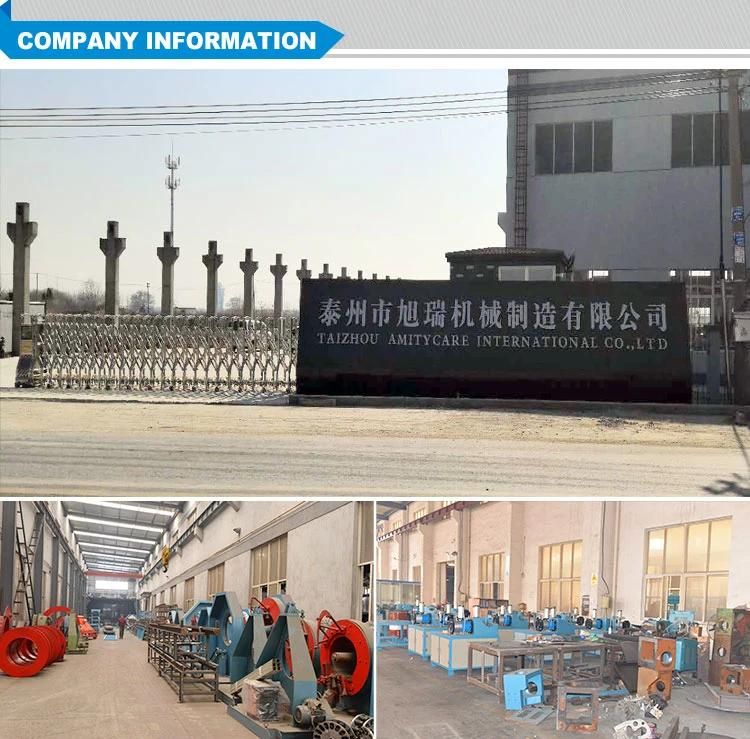

Taizhou amity care international co.,ltd is regarded as the foreign trade department of Taizhou xurui machinery
manufacturing co;, all abroad (overseas) tasks and international businesswill be undertaken by "amitycare ".

We are manufacturers of cage welding machine(concrete pile,pole,pipe )centrifugal spinning machine

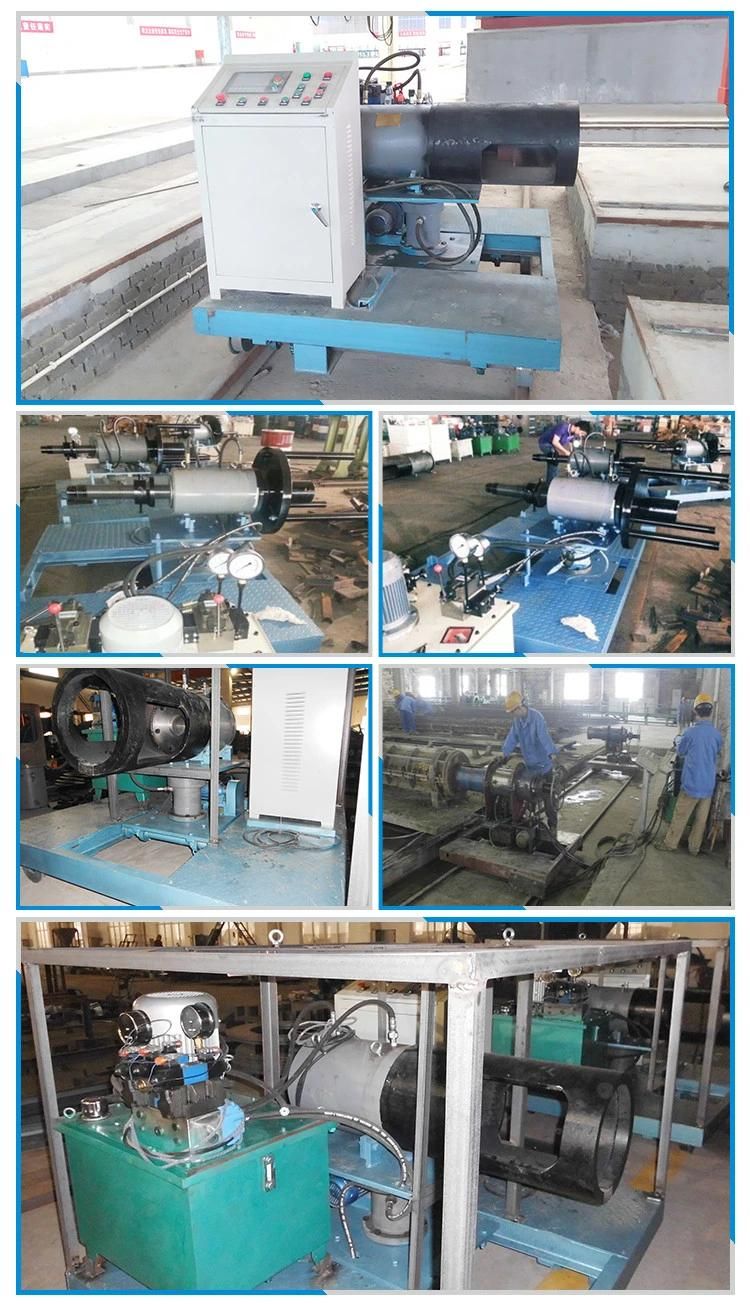

,concrete mould(pile ,pole,pipe) ,ring bending machine,heading machine ,endplate, ,tension jack
for pre-stress .feeding machine for different capacity welding machine ,steel wire Processing machine etc.

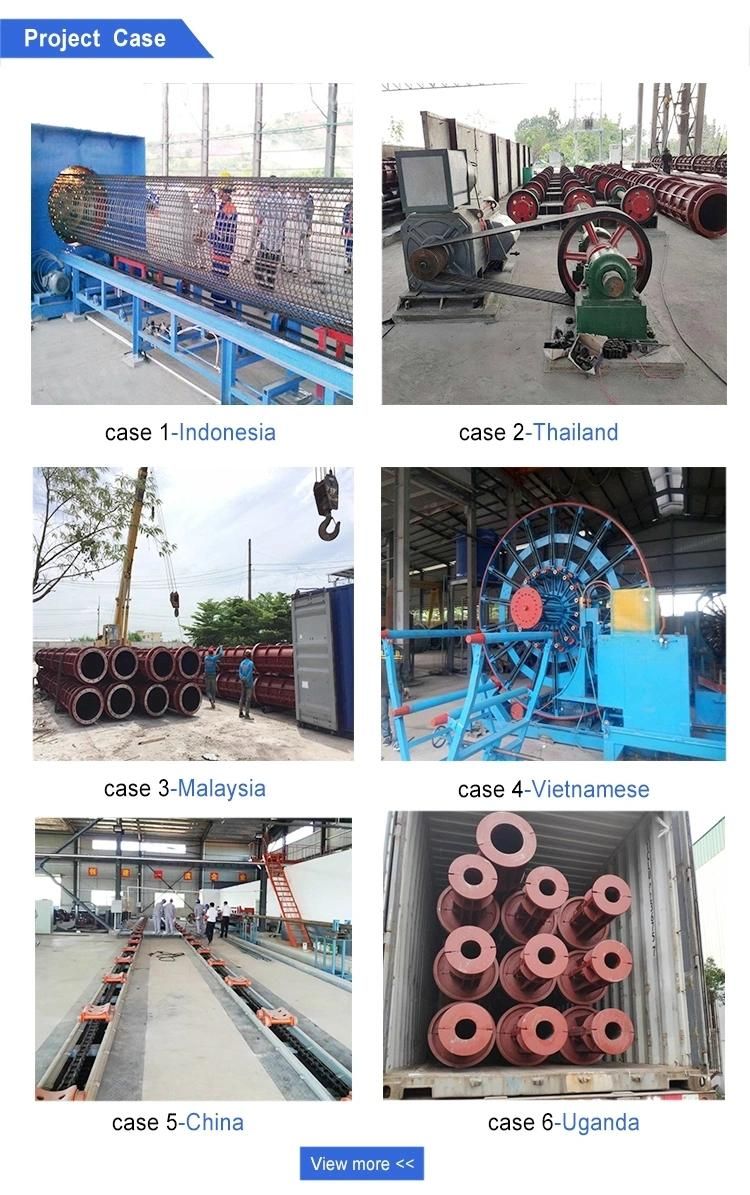

we also can supply setting up a new factory full line service . We have already exported various kinds of
concrete pile , pole and pipe concern making machines to overseas countries and regions such as indonesia,
parkistan,Vietnam ,myanmar ,korea,malaysia ,south african etc .Mideast, Southeastern Asia.
