• Model NO.：YD160
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Transport Package：1850 *1450  * 1340mm
• Specification：Model 160SCY-250M-6-37KW
• Trademark：YOUYAO
• Origin：China
• HS Code：8413910000
• Production Capacity：100 Sets Per Month

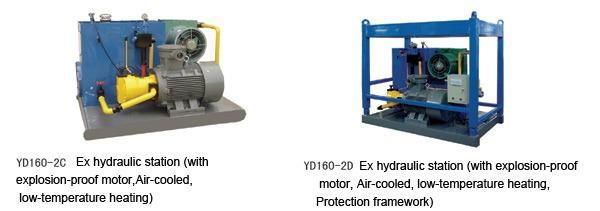

| Drilling equipment >> Hydraulic Station >> YD160-2C Hydraulic Station



YD160-2C main hydraulic station hydraulic equipment for various power sources, YD160-2C for proof. In the oil, such as quarry operations, the main driving force clamp used for drilling, screw machines and other equipment deduction.
     The hydraulic station is simple in structure, easy to operate, safe, reliable, low-noise, stable performance, low temperature heating oil temperature, oil temperature cooling under high temperature and oil temperature can be stabilized at 60 ºC following advantages.
Second, technical parameters
1, the maximum working pressure of 20MPa
2, the public said displacement 5 MPa(725psi)-160L / min(41.6gpm)/16MPa(2320psi)-120L / min (32gpm)
3, the fuel tank volume 650L
4, pump motor group Model 160SCY-250M-6-37KW
5, the electrical voltage, frequency, type 380 V-50HZ-6 (proof)
6, rated the oil temperature is :sixty-five to eighty centigrade
7, Dimensions 1850 *1450 * 1340mm
8, with a total weight of 1300kg (2860lbs)
9, electric heater 3 Kw * 2
10, cooling apparatus FL-12.5 Drilling equipment >> Hydraulic Station >> Various hydraulic station
