Ship Hydraulic Anchor / Mooring Windlass
Henan Nucrane Machinery Co.,Ltd.- After-sales Service：Give The Solution Within 6 Hours
- Warranty：1 Year
- Type：Hydraulic Windlass
- Driven Type：Hydraulic
- Speed：Slow
- Carrying Capacity：Special Weight Level
Base Info
- Model NO.：150kn windlass
- Tonnage：50ton
- Reel Number：2
- Running Mode：Moving
- Feature：Antiseptic, Insulating, Explosion-Proof
- Certification：CE, RoHS, ISO 9001, CCS
- Standard：Nonstandard
- Rated Pull：500 Kn
- Holding Load：1500 Kn
- Nomial Speed：≥7 M,Min
- Rope Dia：52mm
- Drum Capacity：600 M
- Motor Power：200 Kw

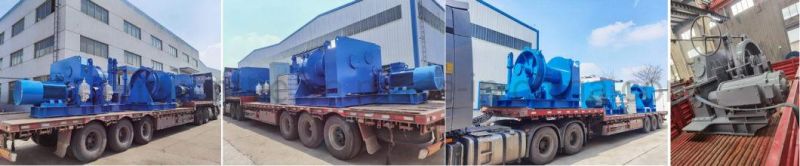

- Transport Package：Container Transportation
- Specification：20 or 40 feet container
- Trademark：Nucrane
- Origin：China, Henan
- Production Capacity：1000sets,Years
Description
ModelRated load Rated speed Rope capacity Rope diameter Motor power Overall Dimensions KN m/min m mm KW mm YT1-16 160 7.5 500 28 45 3200x4050x2200 YT1-20 200 7.5 500 30 55 3200x4050x2200 YT1-25 250 7.5 550 32 75 3600x4350x2580 YT1-32 320 7.5 600 36 90 3600x4500x2600 YT1-40 400 5 750 40 90 3700x4800x2860 YT1-50 500 5 750 52 110 3900x4900x3000 YT1-63 630 5 850 54 110 4000x5100x3100 YT1-80 800 5 1000 58 132 4250x5300x3300 YT1-100 1000 5 1000 64 180 4550x5500x3450 YT1-125 1250 5 1200 70 220 4850x5800x3700 YT1-130 1300 5 1200 72 220 5000x6800x3800 YT1-160 1600 4 1500 82 220 5200x7000x3860 YT1-200 2000 4 1500 90 250 5350x7200x4000 YT1-250 2500 4 1500 102 300 5500x7450x4200 YT1-300 3000 4 1500 110 360 5800x7600x4200
1)Compact costruction, safe & easy operation.

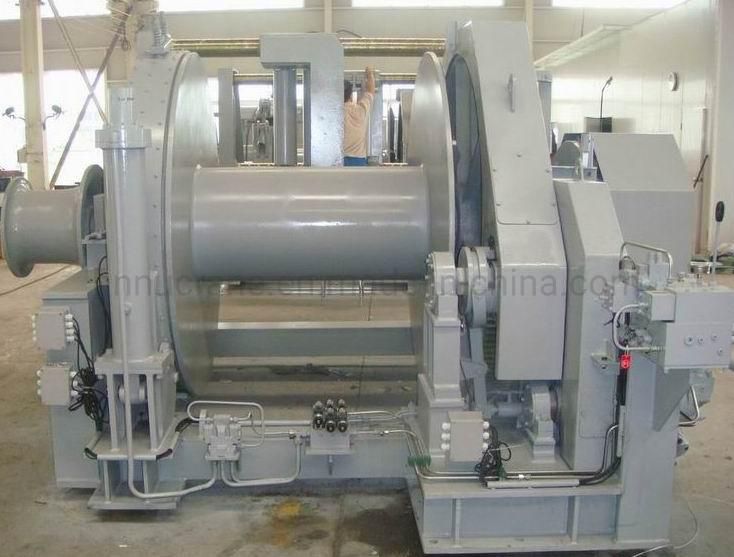

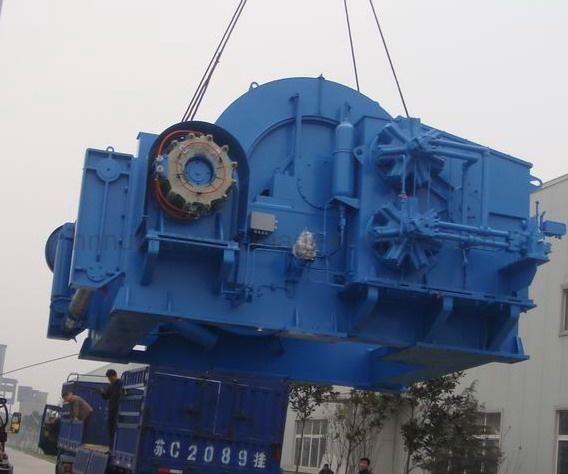

2) Hydraulic Anchor Winch with double drums in waterfall Specifications Details Hydraulic Mooring Winch with double drums in waterfall It consists of a hydraulic motor,spur gears with cover, three main shafts , two drums, ratchet wheel and detent, etc. Feature Double drums in waterfall. Two drums can work simultaneously and independently. Each Drum's load 90T (1st layer) Nominal speed 90T X 5m/min(High speed, Winch control Local control & Remote control including amplifier and joystick Brake Hydraulic operated band brake (normally shut) Clutch Hydraulic claw clutch Power Two units 90T double drums winch share one hydraulic power unit placed in a room with doors. Two winches drums can work simultaneously and independently.
The main components of the winch include: hydraulic motor (low speed or high speed motor), hydraulic NC multi-plate brake, gearbox, clutch (optional), drum ( single drum or double drum), support shaft, frame spooling device (optional) etc. The winch motor has high mechanical efficiency. The brakes and gearbox are installed in the winch drum, and the drum, support shaft and frame are designed in accordance with mechanical requirements, which makes the overall structure simple and reasonable with sufficient strength and rigidity.
Features Of Marine Hydraulic Winch
In structure: the winch structure is compact, and it has nice appearance with small volume and light weight, etc.;
In function: the hydraulic winches have high safety and efficiency, large starting torque, good stability with low speed, low noise, reliable operation etc;

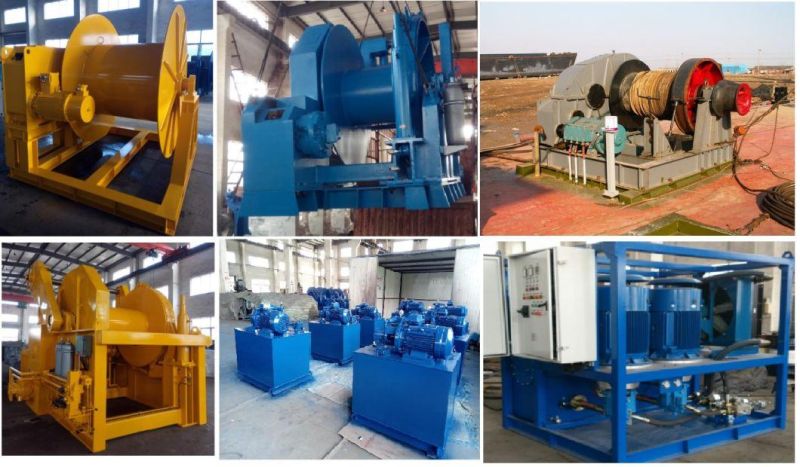

In application: the marine hydraulic winches can be used on ship deck, in port, on offshore platforms and so on. They can be used for anchoring, mooring, towing and other marine operations, to meet different work requirements, there are marine hydraulic towing winch, hydraulic anchor winch and hydraulic mooring winch supplied by us.
1)Compact costruction, safe & easy operation.
2) Hydraulic Anchor Winch with double drums in waterfall Specifications Details Hydraulic Mooring Winch with double drums in waterfall It consists of a hydraulic motor,spur gears with cover, three main shafts , two drums, ratchet wheel and detent, etc. Feature Double drums in waterfall. Two drums can work simultaneously and independently. Each Drum's load 90T (1st layer) Nominal speed 90T X 5m/min(High speed, Winch control Local control & Remote control including amplifier and joystick Brake Hydraulic operated band brake (normally shut) Clutch Hydraulic claw clutch Power Two units 90T double drums winch share one hydraulic power unit placed in a room with doors. Two winches drums can work simultaneously and independently.
The main components of the winch include: hydraulic motor (low speed or high speed motor), hydraulic NC multi-plate brake, gearbox, clutch (optional), drum ( single drum or double drum), support shaft, frame spooling device (optional) etc. The winch motor has high mechanical efficiency. The brakes and gearbox are installed in the winch drum, and the drum, support shaft and frame are designed in accordance with mechanical requirements, which makes the overall structure simple and reasonable with sufficient strength and rigidity.
Features Of Marine Hydraulic Winch
In structure: the winch structure is compact, and it has nice appearance with small volume and light weight, etc.;
In function: the hydraulic winches have high safety and efficiency, large starting torque, good stability with low speed, low noise, reliable operation etc;
In application: the marine hydraulic winches can be used on ship deck, in port, on offshore platforms and so on. They can be used for anchoring, mooring, towing and other marine operations, to meet different work requirements, there are marine hydraulic towing winch, hydraulic anchor winch and hydraulic mooring winch supplied by us.
