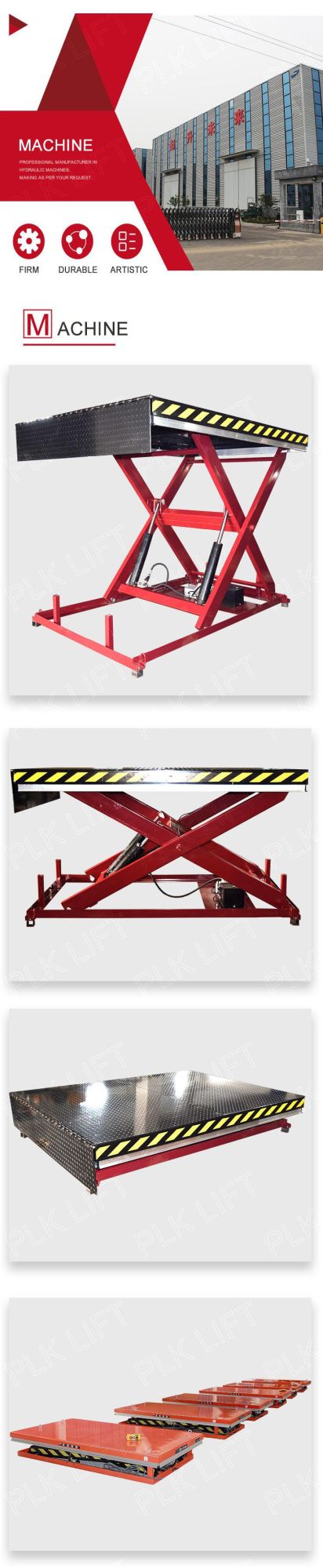

1m 3m Movable Scissor Lift Table Hydraulic Material Cargo Lift
Jinan PLK Machinery Co., Ltd.- After-sales Service：Online Service, Free Express Accessories.
- Warranty：12 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Stationary
Base Info
- Model NO.：HW
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：GS, CE, RoHS, ISO 9001
- Voltage：220V 380V
- Color：Customized
- Used：Lifting Goods
- Load Capacity：3000kg, 5000kg etc
- Material：Steel
- Package：Wooden
- Product Name：Hydraulic Car Scissor Lift
- Control：Control Panel
- Transport Package：High Quality Box
- Specification：1300*820*2000mm 320kg
- Trademark：PLK LIFT
- Origin：China(Mainland)
- HS Code：8428909090
- Production Capacity：1000 Set,Month
Description
Model
Load Capacity(KG)
Self Height
(MM)
Max Platform Height(MM)
Platform Size(MM)
HW1001
1000
205
1000
1300×820
HW1002
1000
205
1000
1600×1000
HW1003
1000
240
1300
1700×850
HW1004
1000
240
1300
1700×1000
HW1005
1000
240
1300
2000×850
HW1006
1000
240
1300
2000×1000
HW1007
1000
240
1300
1700×1500
HW1008
1000
240
1300
2000×1700
HW2001
2000
230
1000
1300×850
HW2002
2000
230
1050
1600×1000
HW2003
2000
250
1300
1700×850
HW2004
2000
250
1300
1700×1000
HW2005
2000
250
1300
2000×850
HW2006
2000
250
1300
2000×1000
HW2007
2000
250
1400
1700×1500
HW2008
2000
250
1400
2000×1800
HW4001
4000
240
1050
1700×1200
HW4002
4000
240
1050
2000×1200
HW4003
4000
300
1400
2000×1000
HW4004
4000
300
1400
2000×1200
HW4005
4000
300
1400
2200×1000
HW4006
4000
300
1400
2200×1200
HW4007
4000
350
1300
1700×1500
HW4008
4000
350
1300
2200×1800
HD1000
1000
305
1780
1300X820
HD2000
2000
350
1780
1300X850
HD4000
4000
400
2050
1700X1200
HT1000
1000
470
3000
1700x1000
HT2000
2000
560
3000
1700x1000
HF400
400
600
4140
1700x1000
HF800
800
706
4210
1700x1000

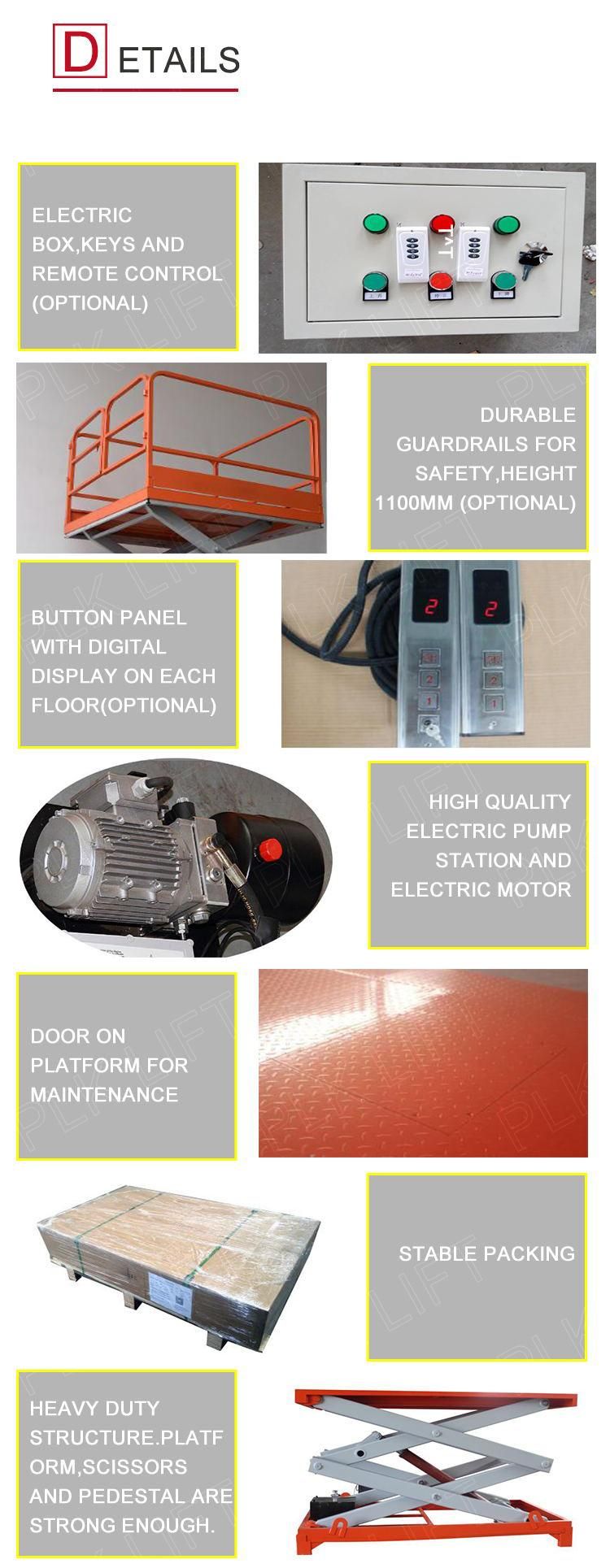

Features & Advantages:- Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
- High quality pump station makes scissor lift table lifts and fall very stable.
- Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
- Removable lifting eye to help lift the table and install.
- Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
- Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
- Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
- Up to American standard ANSI/ASME and Europe standard EN1570
- Safe clearance between scissor to prevent damages during operation.
- Brief structure make it much easier to operate and maintain.
- Stop at the per-concerted and accurate location point.
- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
- Emergency decline valve: it can go down when you meet an emergency or the power off.
- Overload protection locking device: in case of dangerous overload.
- Anti-dropping device: Prevent falling of platform.
- Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
