• Model NO.：YLF201,YLF202
• Driven Type：DC
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Model：Ylf201,Ylf202
• Platform Height Min：330mm,460mm
• Platform Height Max：1100mm,1880mm
• Platform Size：1300mm*850mm
• Battery：24V,120ah
• Capaticy：1500kg
• Driving Tupe：Electric
• Operator Type：Pedestrian
• Turning Radius：1500mm
• Driving Wheel Size：250mm*80mm
• Transport Package：Pallet with Stretch Film ,Cartons
• Specification：7 cube
• Trademark：Yinglift
• Origin：China
• HS Code：8428909090
• Production Capacity：500sets,Month

Model YLF201Driving Type ElectricOperation Type PedestrianCapacitykg1500Turning Radiusmm1500Driving wheel material PUDriving wheel sizemmφ250*80Gradeability(laden/unladen)%3/5Brake type Electric magneticDrive Motor powerkw1.2Lifting Motor powerkw2.2BatteryV/Ah24/120Platform Sizemm1300*850Min.heightmm330Max.Heightmm1100

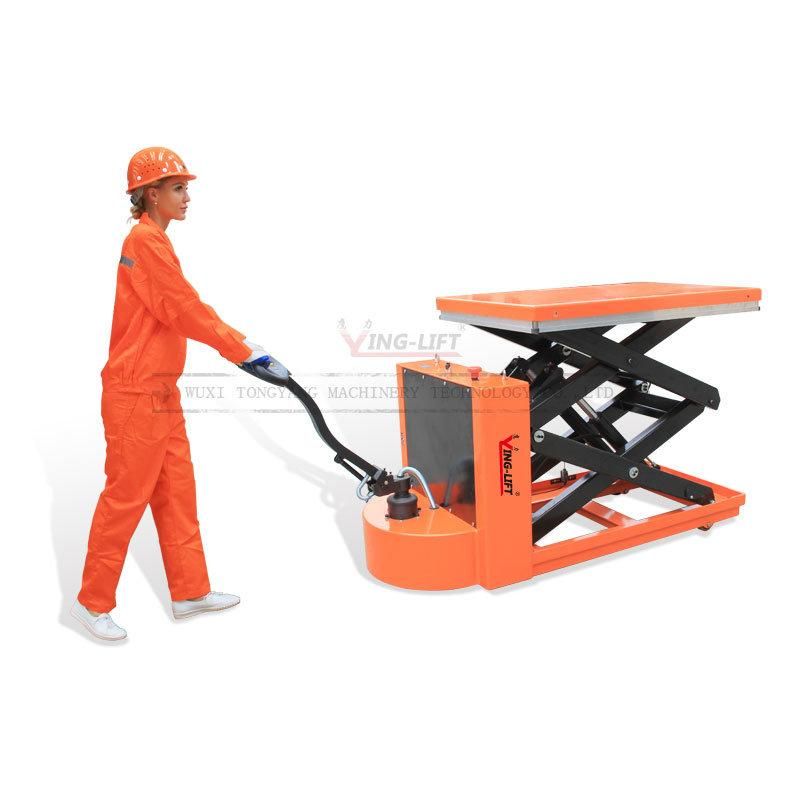

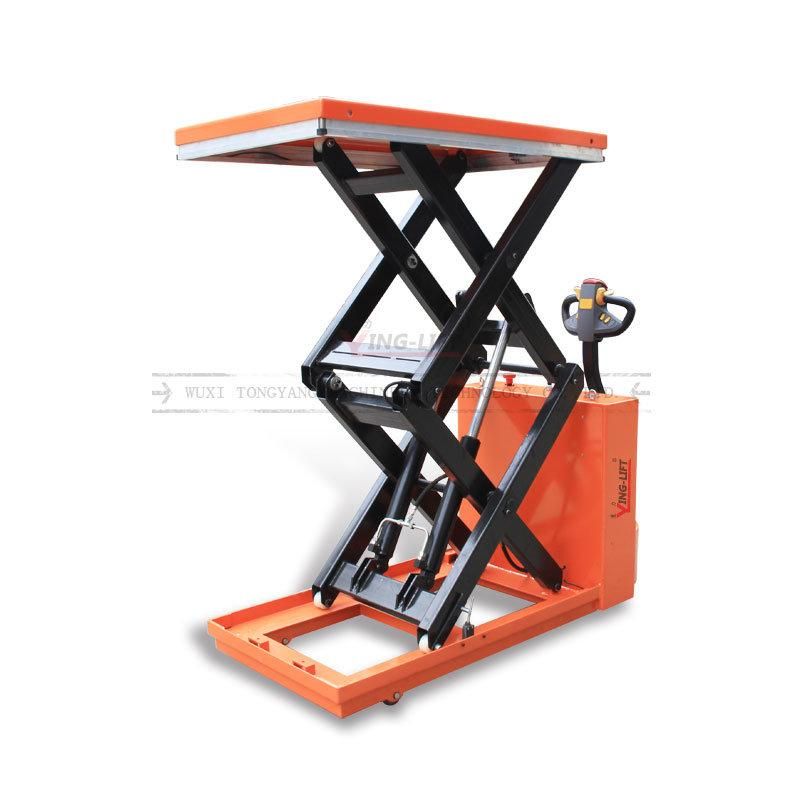

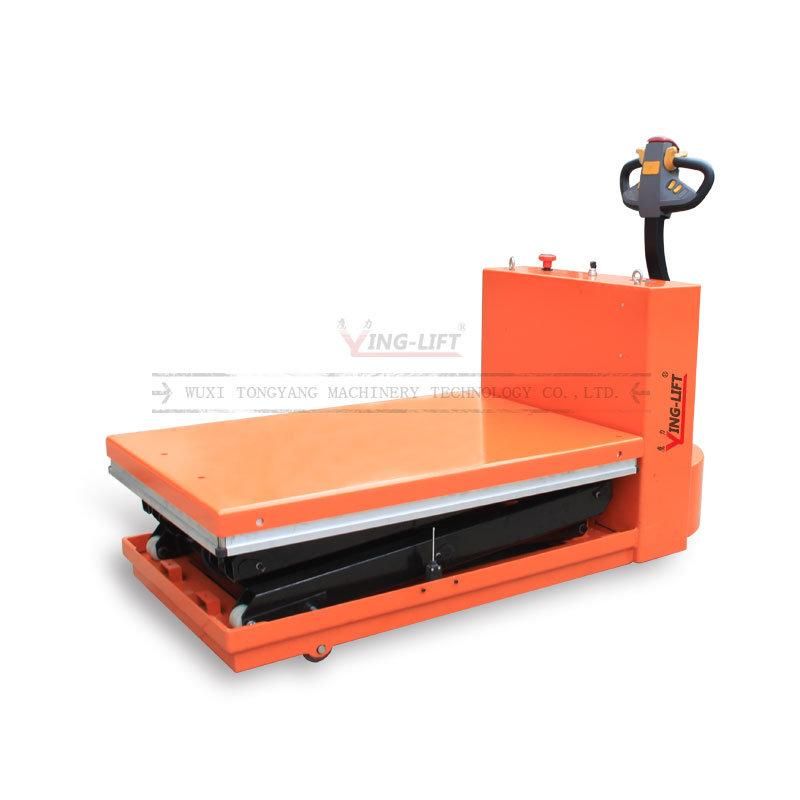

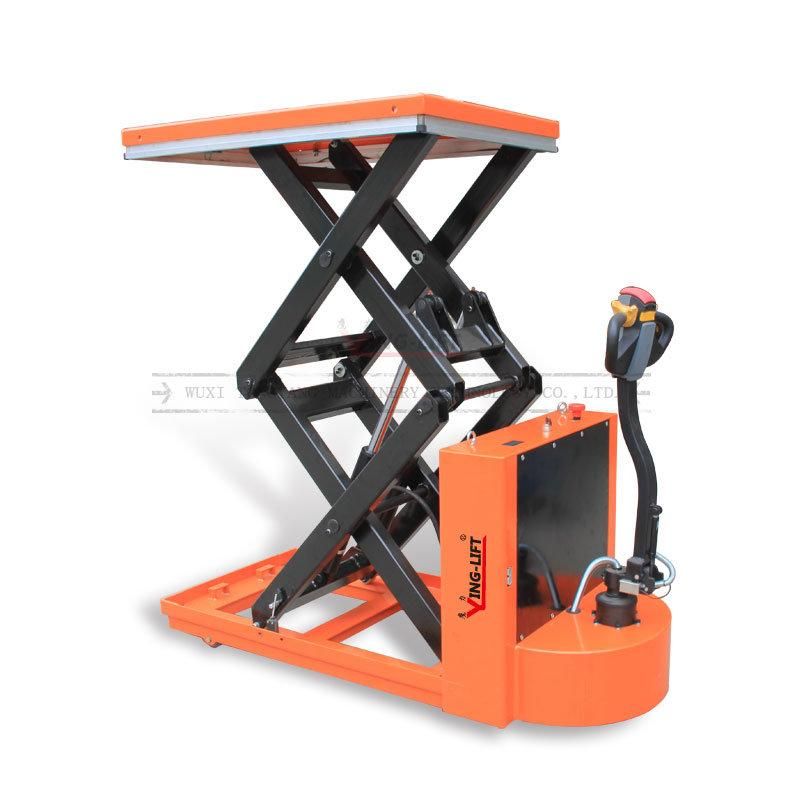

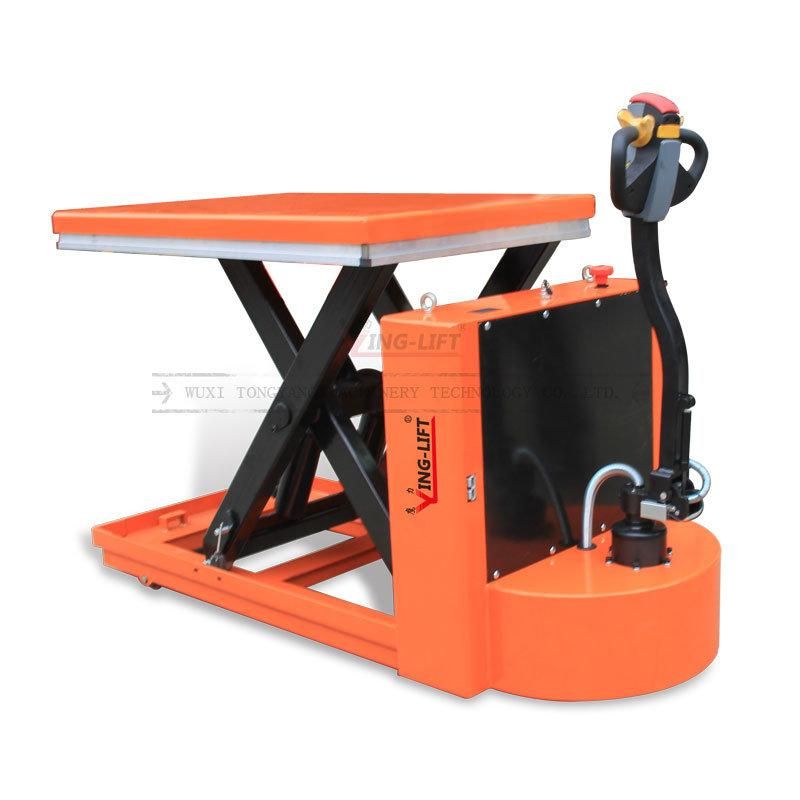

1.5T Mobile Electric Hydraulic Scissor Lift Table YLF202
1.Load capacity up to 1500kg and with 1880mm max. height;
2.REMA handle;
3.24VDC-120AH VARTA maintenance free battery;
4.Step-less speed regulator and integrated hydraulic pump stations to ensure a smooth lifting powerful and high power drive;
5.Heavy duty cylinders with drainage system and anti-exploded valve to stop the lift table lowering in case of house burst;with anti-pinch and overload protection function;
6.Aluminum alloy safety bar fitted to the underside of the platform stops table from lowering in the case of an obstruction;
7.Standard:built-in charger;
8.Optional:built-out charger.

Model YLF202Driving Type ElectricOperation Type PedestrianCapacitykg1500Turning Radiusmm1500Driving wheel material PUDriving wheel sizemmφ250*80Gradeability(laden/unladen)%3/5Brake type Electric magneticDrive Motor powerkw1.2Lifting Motor powerkw2.2BatteryV/Ah24/120Platform Sizemm1300*850Min.heightmm460Max.Heightmm1880















FAQ:
1.Q.Are you factory?
   A.Yes.Our factory mainly produce drum handling equipment,drum stacker,drum truck,aluminum hand trolley ,kinds lift table ,forklift attachment and shop crane with CE approved, pasted Third-party certification(SGS/ISO9001).
2.Q.Can I place mix order?
   A.Yes.You can mix different models as your request.
3.Q.Can we order products?
   A.Yes. Customers can option size,color,weighing,panel etc.Welcome ODM/OEM orders.
4.Q.Can we visit your factory?
   A.Welcome anytime .Our factory address:No. 38, Yansheng Road, Yanqiao Industrial Park,Huishan District,Wuxi,Jiangsu,China (Mainland) .You can take the plane, high-speed rail, motor car, train, car.
5.Q.Are the products covered by a warranty?
   A.Yes.All our machines carry a full 1 year major parts warranty.

Quality Control in our Wuxi Tongyang:
The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1) Strict quality control system on the whole process of production
2) Imported key arts to ensure the high quality of our products
3) Advanced equipment and tools for examination and quality control
4) 100% strict examining products before shipment
5) All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
