• Model NO.：EE050
• Shape：Flat
• Certification：GS, CE, ISO 9001
• Sling Color：Violet
• Wll：1t,2t,3t,4t,5t,6t,8t,10t,15t,20t,30t
• Transport Package：Polybag+Carton or as Customer′s Requirement
• Specification：standard coulour, length: as coustomer requirement
• Trademark：Z&J or as customer requested
• Origin：China
• HS Code：5609000000
• Production Capacity：200000 PCS,Year

Stock No. Color WLL                        SWL  WLL(t)  M  CC     Double multi-set SWL(t)verticalchoke<7ºa>7º
a<45ºa>45º
a<60ºa<45ºa>45º
a<60ºa<45ºa<45ºa<60ºa>45º
a<60ºM=1.0M=0.8M=2.0M=1.4M=1.0M=0.7M=0.5M=1.4M=1.12M=1.0M=0.8Comply wit ISO4878 EN1492-1:2000 JB/T8521.1Width of duplex webbing sling or single endless sling for defferent safety factor              S.F                    5:1             6:1              7:1               8:1          WLLWidth  M.B.S  WidthM.B.S     WidthM.B.SWidthM.B.S1t25mm5t25/38mm6t30/50mm7t50mm8t2t50mm10t50mm12t60mm14t65mm16t3t75mm15t75mm18t90mm21t95mm24t4t100mm20t100mm24t120mm28t120mm32t5t125mm45t100/125mm30t150mm35t150mm40t6t150mm30t100/150mm36t180mm42t180mm48t8t200mm40t100/200mm48t240mm56t240mm64t10t250mm50t150/250mm60t300mm70t300mm80t
Technical specifications:
-Colour coded according to EN 1492-2 & AS 4497 & NBR 15637-1 or White
-Safety Factor 8:1, 7:1, 6:1, 5:1
-Capacity stripes; Each stripe is equal to 1 tonne capacity.
-Extra strong PU-impregnated webbing of the sleeve, which does not allow dirt to enter.
-Each sling is packed in plastic with CE declaration of conformity or Test Certificate.

 Application:

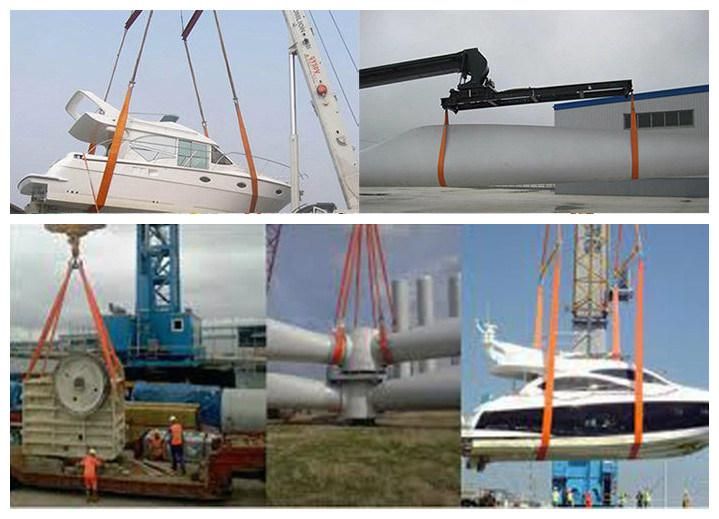

  Webbing lifting slings are used in variety of ways throughout several industries, including marine, construction, engineering, power, defense and transport industries, warehousing, house removals and manufacturing plants.

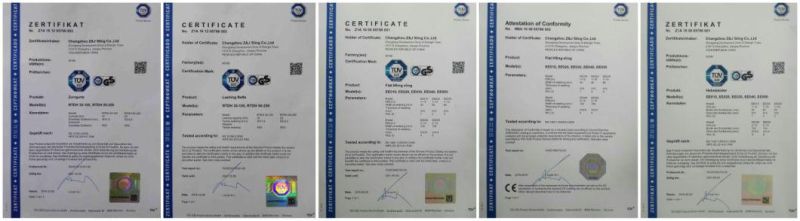

 Certificates:


Properity :
-Low elongation.
-Extremely wear-resistant.
-According to standard 2006/42/EC
-Options:
The safe working load is clearly printed on the sleeve.

Notes:
1, Always protect webbing from hot surfaces, sharp edges and acids
2, Don't use if webbing is torn or frayed or if hardware is damaged
3, Observe working load limit (WLL) as started to determine quantity of strap assemblies

 Necessary for quotation:
1. Quantity you need
2. WLL ( Working limited load)
3. Length
4. Safety factor
5. Type
6. Other special requirement

Warmly welcome to enquire all the products that you need which not listed in our showroom, your safification is the best return to us. Z&J is your trust and realiable partner. wish to cooperate with you to make win-win.
