• Model NO.：PML
• Power Source：Magnet Lifting
• Shape：Yellow
• Certification：CE
• Sling Color：Yellow
• Produt：3.5 Safety Rate Permanent Magnetic Lifter NdFeB Ma
• Capacity：100kg-10t
• Gw of Magnetic Lifter：39kg

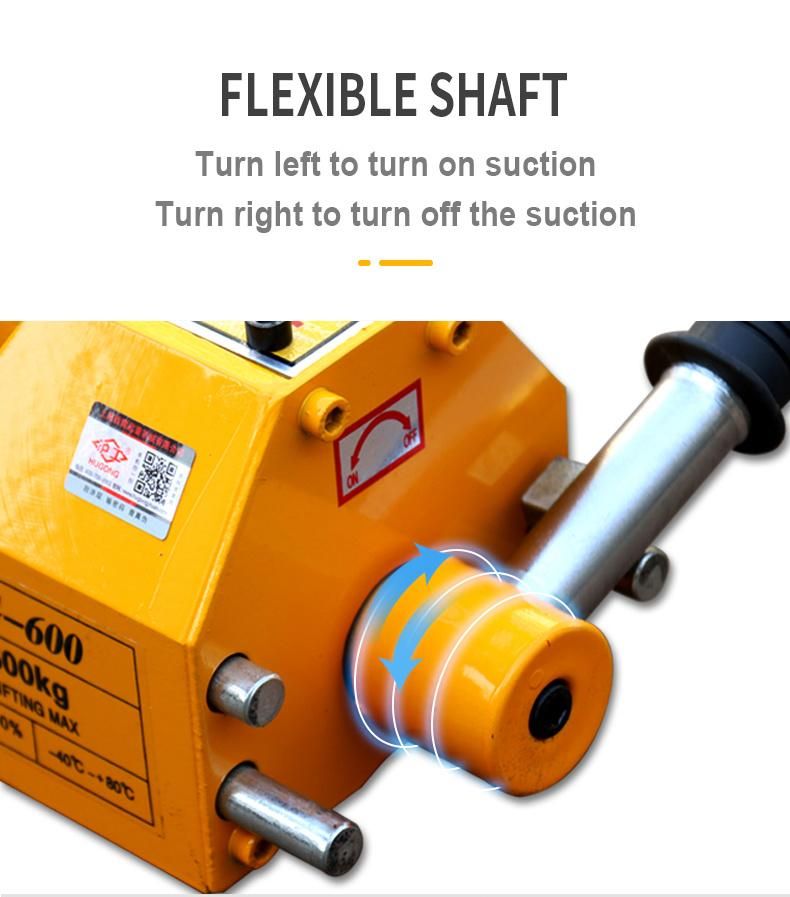

• Magnet Activation：Locking on,off Handle
• Material of Magnetic Lifter：Steel
• Usage：Lifting
• Operation Temperature (°c)：Lower Than 80
• Key Words：Magnetic Lifter
• Color：as Your Order
• Transport Package：Wood Box
• Specification：lifting magnet
• Trademark：HOGO
• Origin：China
• HS Code：8505901000
• Production Capacity：1000piece,Month

ModelRated capacity(Ton)Max tension(kg)Size(mm)Net weight(kg)LBHRYS-1001003009063681453YS-40040012001609518016011YS-600600180022011512523020YS-10001000300026014514528040YS-15001500375031014514528048YS-20002000500034016016541060YS-30003000750042018518551090YS-4000400010500480200200510120YS-5000500015000580300300650400



Advantage of 100kg 1ton all size hand lifting equipment permanent magnetic lifter







1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.

2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.

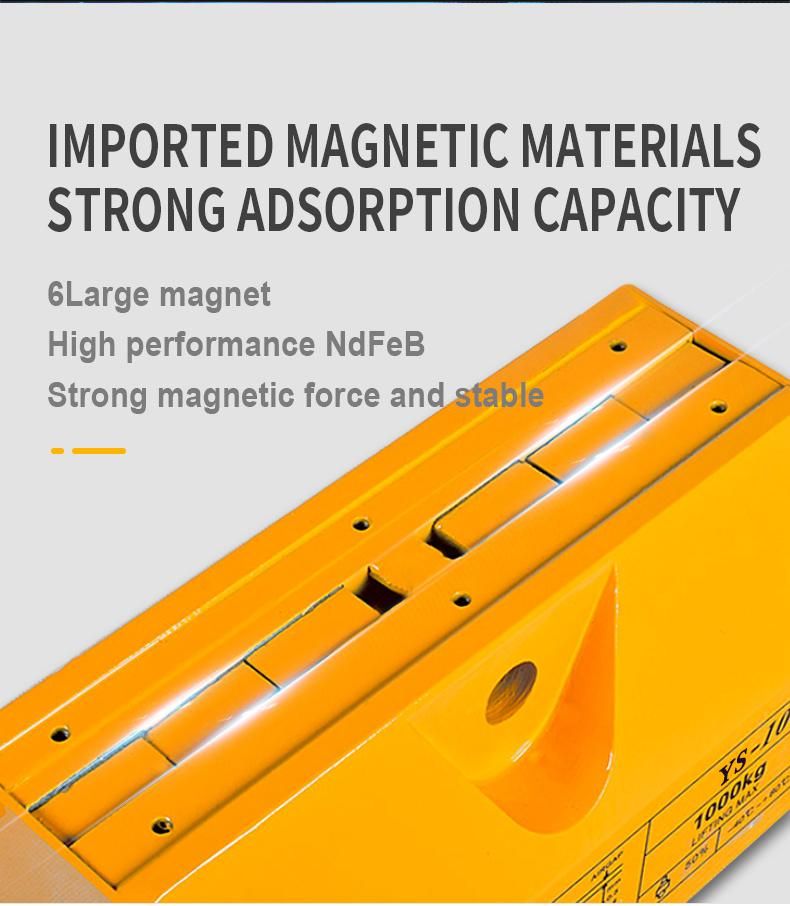

3. Using high-performance permanent magnet, ensure the power and high safety.

4. With a "V" style design at the bottom of lifter, can lift both round steel and steel plate.

5. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught.

6. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of loading operation and labor productivity.

7. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.



Usage and application of 100kg 1ton all size hand lifting equipment permanent magnetic lifter

:
The permanent magnetic lifters are mainly used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.

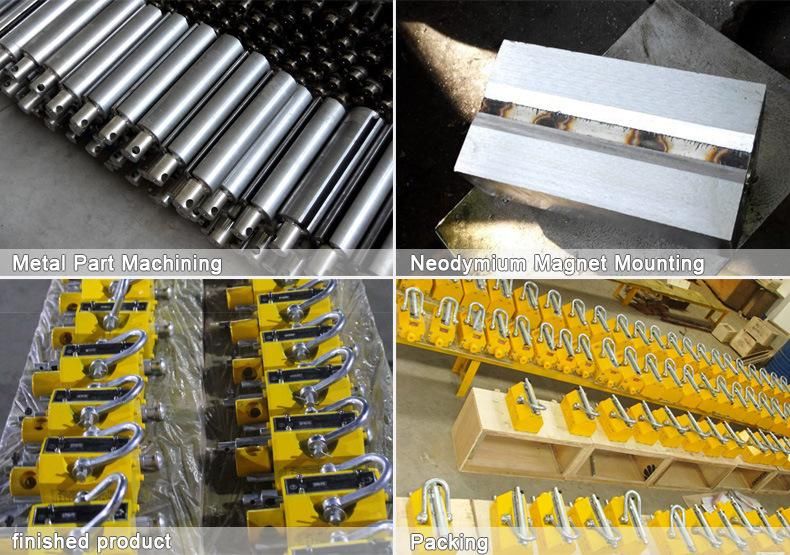

magnetic lifting parts

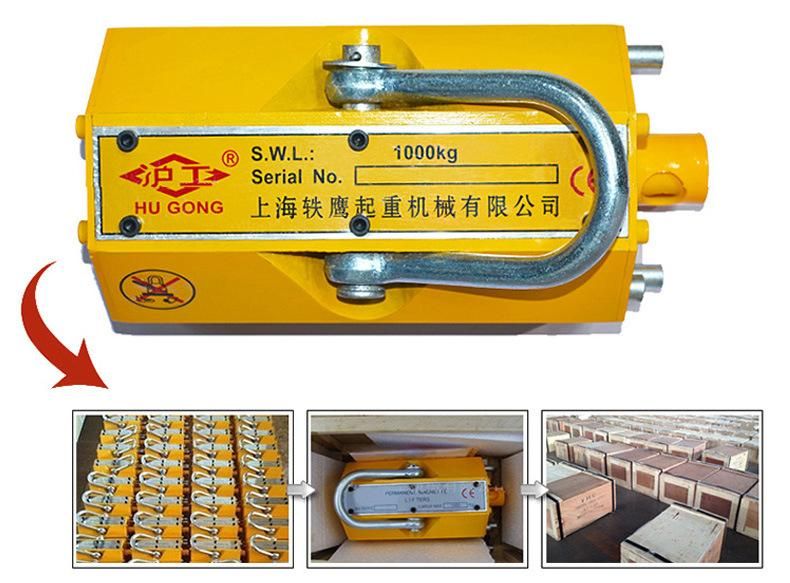

Package of 100kg 1ton all size hand lifting equipment permanent magnetic lifter

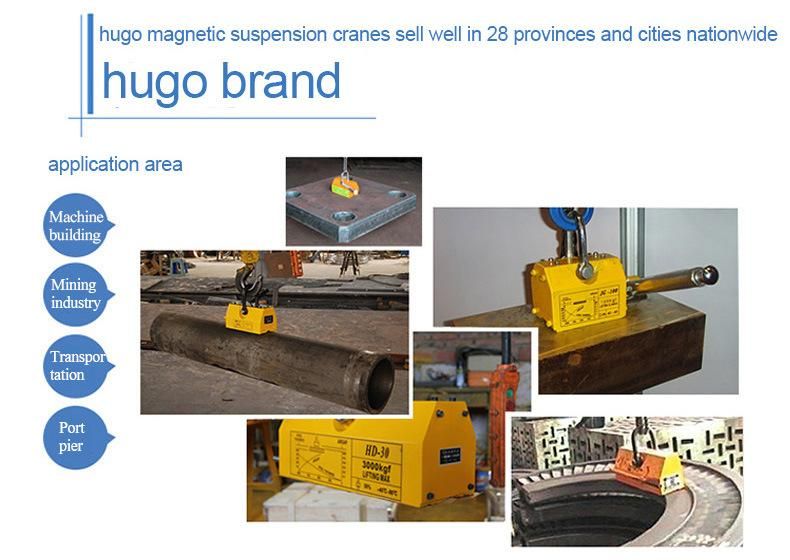

magnetic lifting application case
