130kg Loading 9m Platform Height Manual Pushing Vertical Lift Aerial Work Platform
Chenlift (Suzhou) Machinery Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Telescoping Lift
- Carrying Capacity：Light Level
- Moves：Moving
- Driven Type：Man Pushing
- Running Mode：Moving
Base Info
- Model NO.：GTWY9-100,ME900-1
- Feature：Explosion-Proof, Insulating
- Certification：CE, ISO 9001
- Platform Height：9m
- Working Height：11m
- Loading Capacity：125kg
- Lifting Power：0.75kw
- Platform Size：0.6*0.55m
- Weight：400kg
- Transport Package：Wrapped in Film on Pallets
- Specification：Aluminum Profile
- Trademark：Bestmax Lift
- Origin：China
- HS Code：8428909090
- Production Capacity：80 Units Per Month
Description
Basic Info.
Model NO. GTWY9-100/ME900-1 Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Platform Height 9m Working Height 11m Loading Capacity 125kg Lifting Power 0.75kw Platform Size 0.6*0.55m Weight 400kg Transport Package Wrapped in Film on Pallets Specification Aluminum Profile Trademark Bestmax Lift Origin China HS Code 8428909090 Production Capacity 80 Units Per MonthProduct Description
Man Pushing around Aluminum Aerial Work PlatformDescription

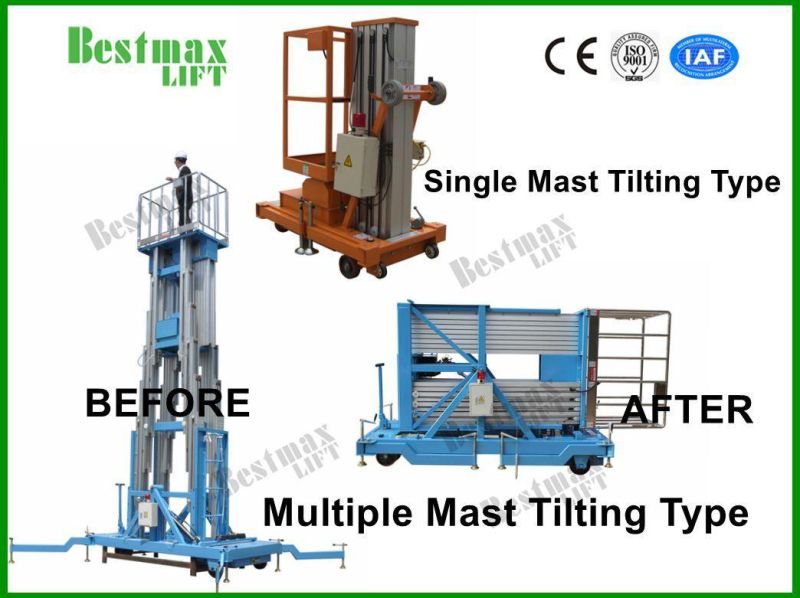

By the mast quantity: single mast, double mast, triple mast, quadruple mast and six masts (four plus two) are ranked in the product range of man pushing around aerial work platform
Features non-marking tires and anodized aluminum mast. Easily pushed around to the designated sites, beautiful structure, compact main body, light weighted, safe and reliable. It is operated by the telescopic cylinder which is strong and reliable working and the control panels are available on the lift platforms and ground.
Power supply standard is AC version (110V or 220V) and DC chargeable battery version (12V or 24V) or AC &DC version are both optional. Extendable platform can be made also for double mast type.
DC battery version always comes with battery charger, batteries can be recharged using automatic, built-in charger, and battery discharge indicator warns of low charge conditions.
The lifting height ranges from 4m to 22m for different mast Aluminum Aerial Work Platform and the loading capacity varies from 130Kg to 300Kg.
Application
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.

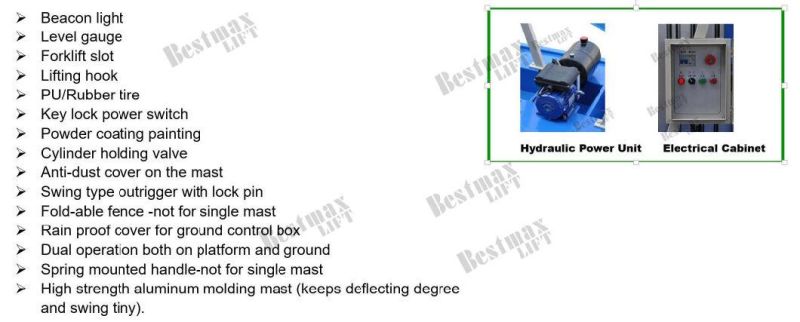

Main Configurations of Man Pushing around Aluminum Aerial Work Platform
Safety Features of Man pushing around Aluminum Aerial Work Platform
- Toe protection boards on the platform
- Anti-skid deck on the platform
- Auxiliary Lowering
- Dual limit switch for safety
- Operation voltage at 24V
- Safety belt holding
- Anti-burst valve on the cylinder
- Emergency stop button both on platform and ground
- Short Circuit and leakage protection system for AC version
- Fuse for DC version for electric shock protection

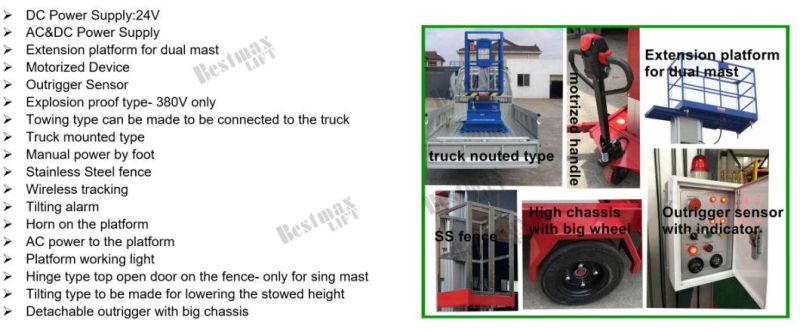

Optional Configuration for Man Pushing Aluminum Aerial Work Platform
Major Parameter of Single Mast Aluminum Aerial Work Platform
| Model NO. | Working Height(m) | Loading Capacity(Kg) | Platform Size(m) | Lifting Power (Kw) | Weight(Kg) | Dimension(m) |
| GTWY6-100 | 8 | 130 | 0.60x0.55 | 0.75 | 260 | 1.38x0.80x1.65 |
| GTWY8-100 | 10 | 130 | 0.60x0.55 | 0.75 | 300 | 1.38x0.80x1.98 |
| GTWY9-100 | 11 | 130 | 0.60x0.55 | 0.75 | 326 | 1.44x0.85x1.98 |
| GTWY10-100 | 12 | 130 | 0.60x0.55 | 0.75 | 400 | 1.44x0.85x1.98 |
| Model NO. | Working Height(m) | Loading Capacity(Kg) | Platform Size(m) | Lifting Power (Kw) | Weight(Kg) | Dimension(m) |
| GTWY6-200 | 8 | 200 | 1.18x0.62 | 1.1 | 380 | 1.38x0.85x2.00 |
| GTWY8-200 | 10 | 200 | 1.18x0.62 | 1.1 | 480 | 1.38x0.95x2.00 |
| GTWY9-200 | 11 | 200 | 1.38x0.62 | 1.1 | 548 | 1.58x0.95x2.00 |
| GTWY10-200 | 12 | 200 | 1.38x0.62 | 1.1 | 610 | 1.68x0.95x2.00 |
| GTWY12-200 | 14 | 200 | 1.48x0.62 | 1.1 | 650 | 1.68x0.95x2.00 |
| GTWY14-200 | 16 | 150 | 1.48x0.62 | 1.1 | 650 | 1.68x0.95x2.00 |
| Model NO. | Working Height(m) | Loading Capacity(Kg) | Platform Size(m) | Lifting Power (Kw) | Weight(Kg) | Dimension(m) |
| GTWY10-300 | 12 | 300 | 1.40x0.88 | 2.2 | 900 | 1.78x1.10x2.05 |
| GTWY12-300 | 14 | 300 | 1.40x0.88 | 2.2 | 950 | 1.78x1.10x2.05 |
| GTWY14-300 | 16 | 250 | 1.53x0.88 | 2.2 | 980 | 1.90x1.10x2.32 |
| Model NO. | Working Height(m) | Loading Capacity(Kg) | Platform Size(m) | Lifting Power (Kw) | Weight(Kg) | Dimension(m) |
| GTWY10-400 | 12 | 300 | 1.40x0.80 | 2.2 | 950 | 1.78x1.25x2.05 |
| GTWY12-400 | 14 | 300 | 1.40x0.80 | 2.2 | 980 | 1.78x1.25x 2.32 |
| GTWY14-400 | 16 | 200 | 1.40x0.80 | 2.2 | 1000 | 1.90x1.25x2.32 |
| GTWY16-400 | 18 | 200 | 1.40x0.80 | 2.2 | 1100 | 2.28x1.35x2.82 |
| Model NO. | Working Height(m) | Loading Capacity(Kg) | Platform Size(m) | Lifting Power (Kw) | Weight(Kg) | Dimension(m) |
| GTWY16-420 | 18 | 150 | 1.45x0.90 | 2.2/1.1 | 1200 | 2.28x1.35x2.18 |
| GTWY18-420 | 20 | 150 | 1.45x0.90 | 2.2/1.1 | 1400 | 2.28x1.35x2.42 |
| GTWY20-420 | 22 | 150 | 1.55x0.90 | 2.2/1.1 | 1780 | 2.50x1.40x2.62 |
| GTWY22-420 | 24 | 150 | 1.55x0.90 | 2.2/1.1 | 2000 | 3.00x1.60x2.82 |

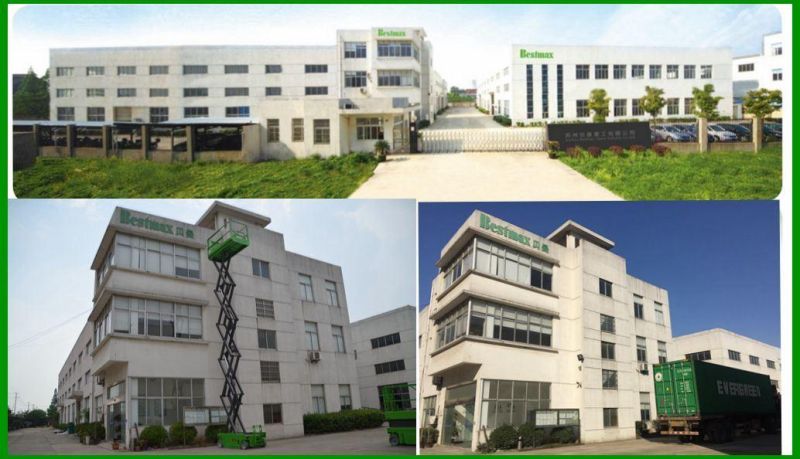

Company Introduction
As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Certificates

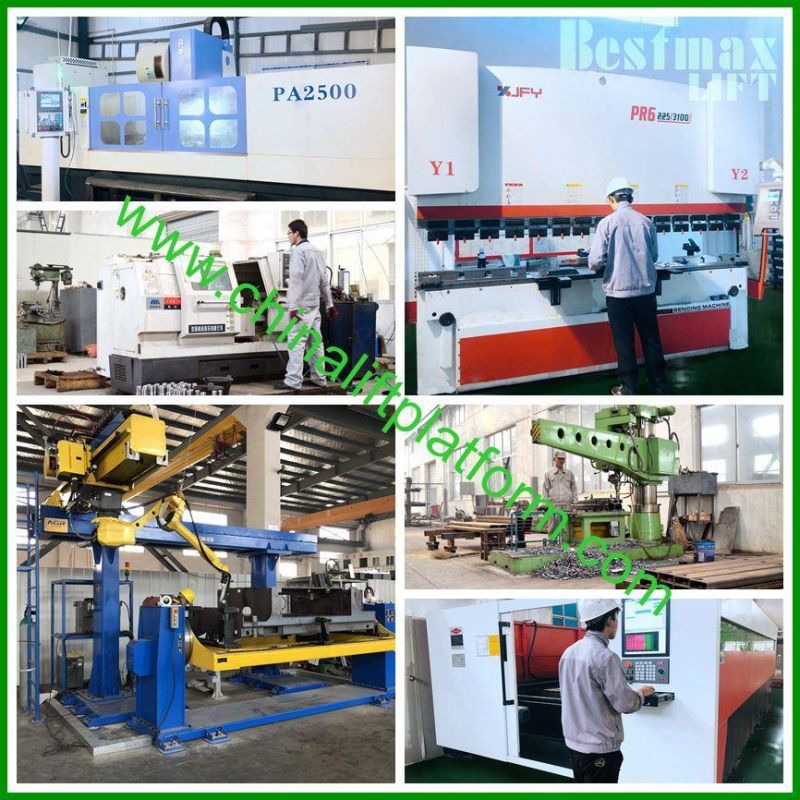

Factory Equipment
Customer Visiting

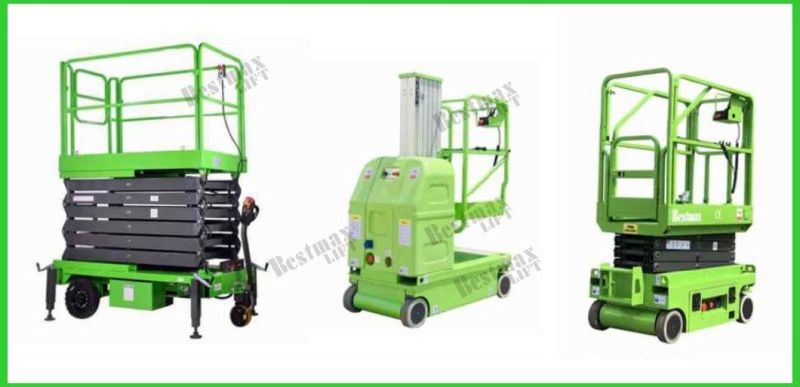

Other Related Products
