10ton Loading Capacity 1m Lifting Height Stationary Scissor Lift
Chenlift (Suzhou) Machinery Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Stationary
- Driven Type：AC
- Running Mode：Stationary
Base Info
- Model NO.：SJG10-1
- Certification：CE, ISO 9001
- Stowed Height：750mm
- Max Height：1750mm
- Load Capacity：10000kg
- Platform Size：3000*2000mm
- Travelling Height：1000mm
- Lift Motor：7.5kw
- Power Voltage：380V 50Hz
- Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
- Specification：3000kg and 2m height
- Trademark：CHEN LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：3000 Units Per Year
Description
Multi-ForksSJG1-4.1 1 913 4100 5013 2200X1000 39 3 1160 SJG2-3.5 2 722 3500 4222 2100X1500 48 5.5 2100 SJG3-7.2 3 1050 7200 8250 3400x1500 117 7.5 5500

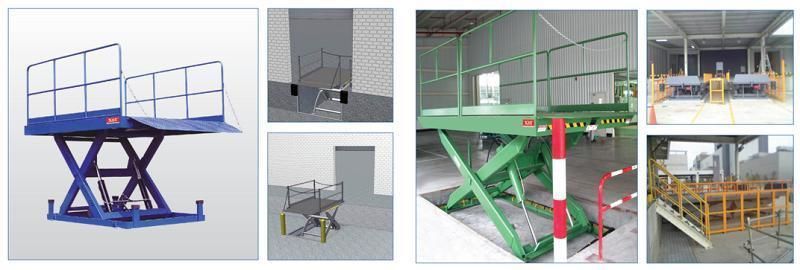

Pit mounted scissor lift with fence and lips

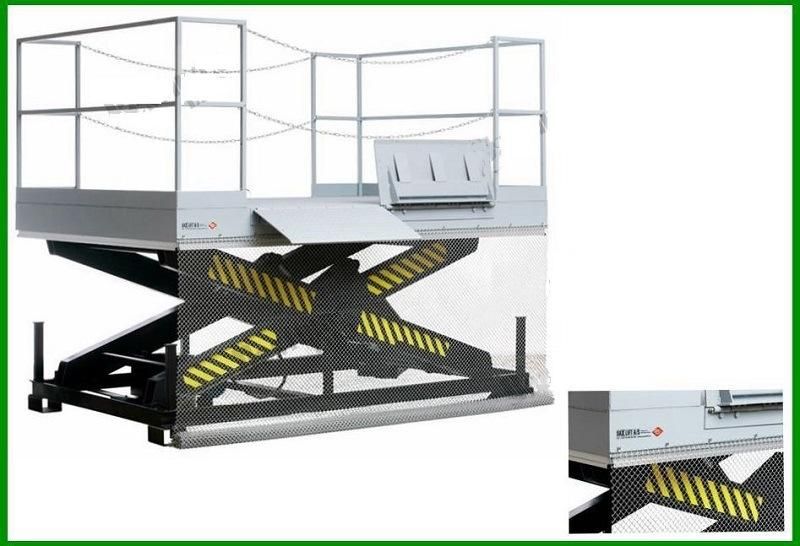

Stationary Scissor Lift with flap sheet
Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
