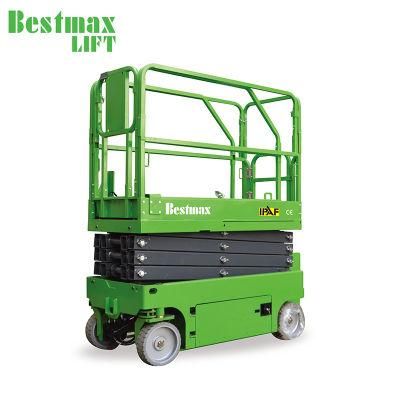

• Model NO.：MX580S
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Max Platform Height：5.8 M
• Max Working Height：7.8 M
• Load Capacity：230 Kg
• Platform Size：1.67* 0.74 M
• Platform Extension Length：0.9 M
• Extension Load：113 Kg
• Lift/Drive Motor：24V,3.3 Kw
• Ground Clearance( Stowed/Raised)：0.1m,0.019m
• Wheelbase：1.87 M
• Gradeability：25%
• Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
• Specification：1.81*0.76* 1.82 m
• Trademark：Bestmax
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Units Per Year

Model MX580SMX600SNMX800SNMX800SMX1000SMX1200SLoad230 kg230 kg230 kg450 kg320 kg230 kgExtension Load113 kg113 kg113 kg113 kg113 kg113 kgPlatform Height5.8 m6 m8 m8 m10 m11.8 mWorking Height7.8 m8 m10 m10 m12 m13.8 mPlatform Size1.67*0.74m2.27*0.81m2.27*0.81m2.27*1.12m2.27*1.12m2.27*1.12mPlatform Extension Length0.9 m0.9 m0.9 m0.9 m0.9 m0.9 mLift/Drive Motor24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/4.5 kw Details

Safety Precaution

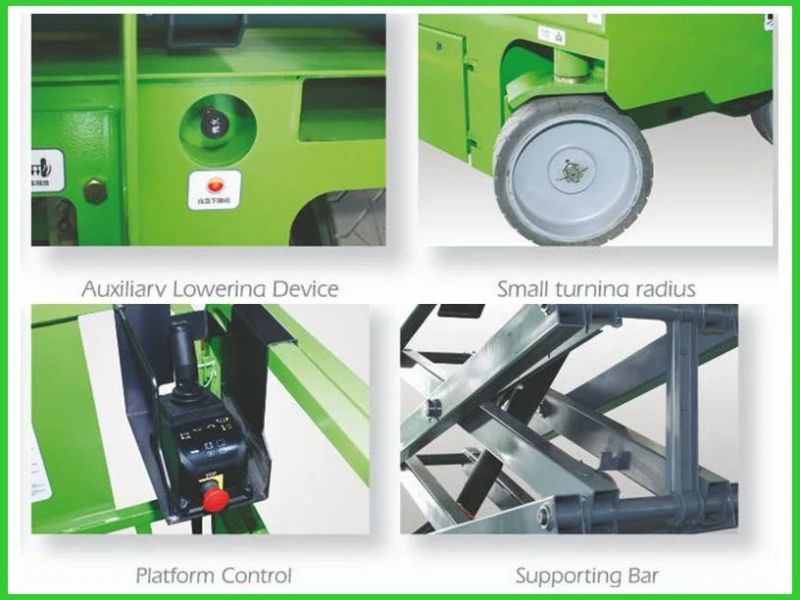

• Auxiliary Lowering Devices
• Anti-burst System
• Emergency Stop Button
• Tilting Protection System
• Charging Protection System
• Automatic Pothole Protection
• Automatic Braking System
• Buzzer and Horn

Factory Equipment


Client &Exhibition

Other Related Products


Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
