• Driven Type：Hydraulic
• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Material：Steel
• Customized Features：Accept
• Transport Package：Wooden Pallet and High Quality Paper Boxes with St
• Specification：1450*985*100
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：5000

Basic Info.

Driven Type Hydraulic Running Mode Stationary Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Material Steel Customized Features Accept Transport Package Wooden Pallet and High Quality Paper Boxes with St Specification 1450*985*100 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 5000

Product Description

U Shaped Scissor Lift Mini Portable Scissor Lift
U Shaped Scissor Lifts are high-quality hydraulic-powered with loading capacities ranging from 600kg to 1,500kg. Maximum
height can reach 860mm.

Compact and efficient, the lift is ideal for work done in limited space. It's equipped with safety valves to prevent dangers from happening.
We also accept customized orders to better suit the needs of customers.


Data Sheet

Model	Load Capacity(kg)	Max. Platform Height (mm)	Min. Platform Height (mm)	Platform Size (mm)	Size A (mm)	Size B (mm)	Size C (mm)	Base Size (mm)	Lifting time(s)	Voltage (v)	Net weight (KG)
HU600	600	860	85	1450x985	200	1080	585	1335x947	25-35	customized	207
HU1000	1000	860	85	1450x1140	280	1080	580	1335x947	25-35	customized	280
HU1500	1500	860	105	1600x1180	300	1194	580	1335x947	30-40	customized	380

1) One year Free Parts Replacement Policy whereby any non-human caused mechanical or structural failure qualifies for parts replacement free of charge. Parts include but not limited to pumps, engines, cylinders.
2) Life Technical Support via video link or email, bilingual team 24/7 on standby.



Remarks: All products are CE marked, meeting safety regulations. Should you be interested in any of them, make yourself at home and feel free to contact me. I'm sure a good solution can be offered to you through my patience and dedication to your satisfaction.

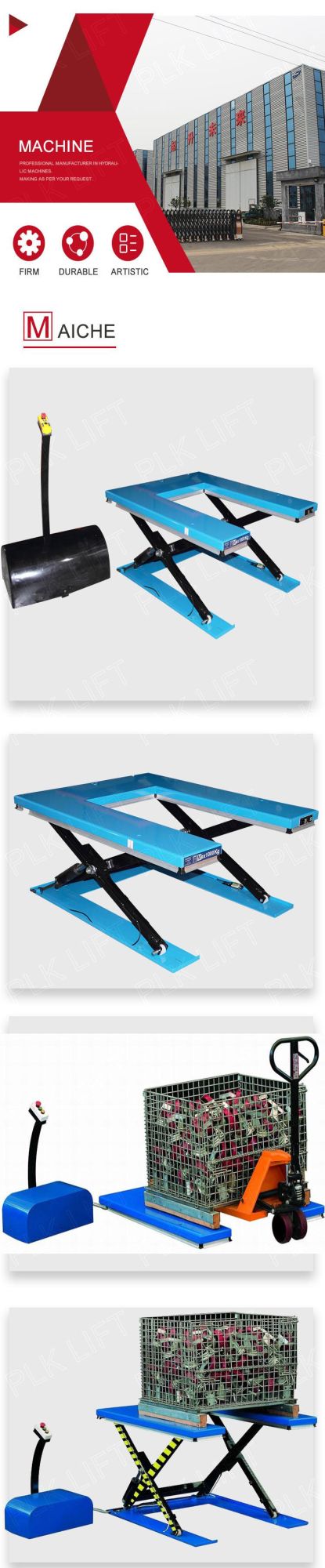

Product Show

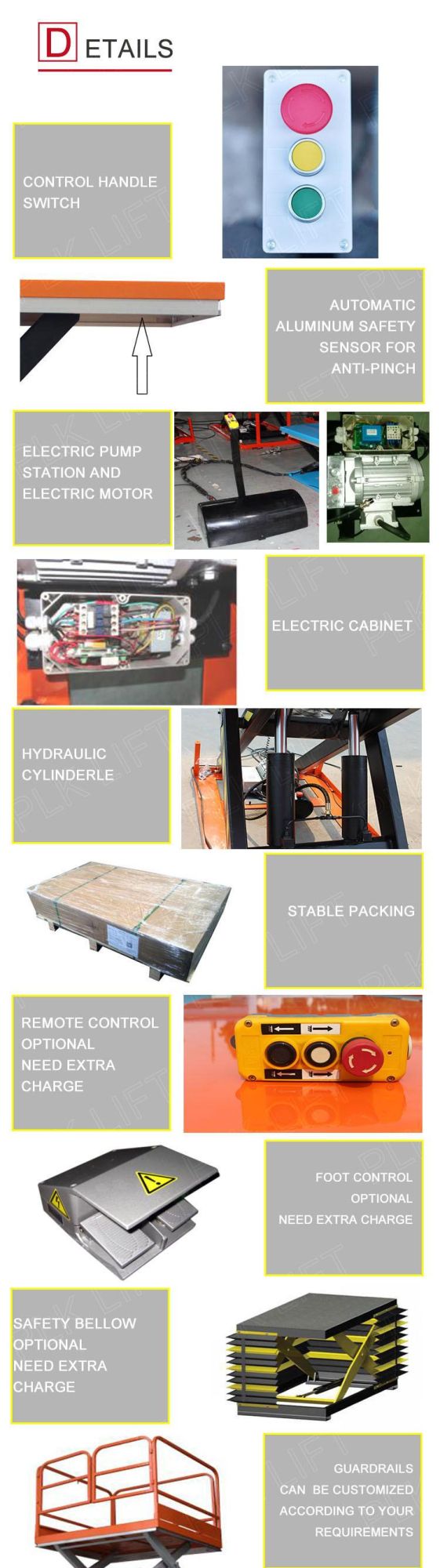

Details Show

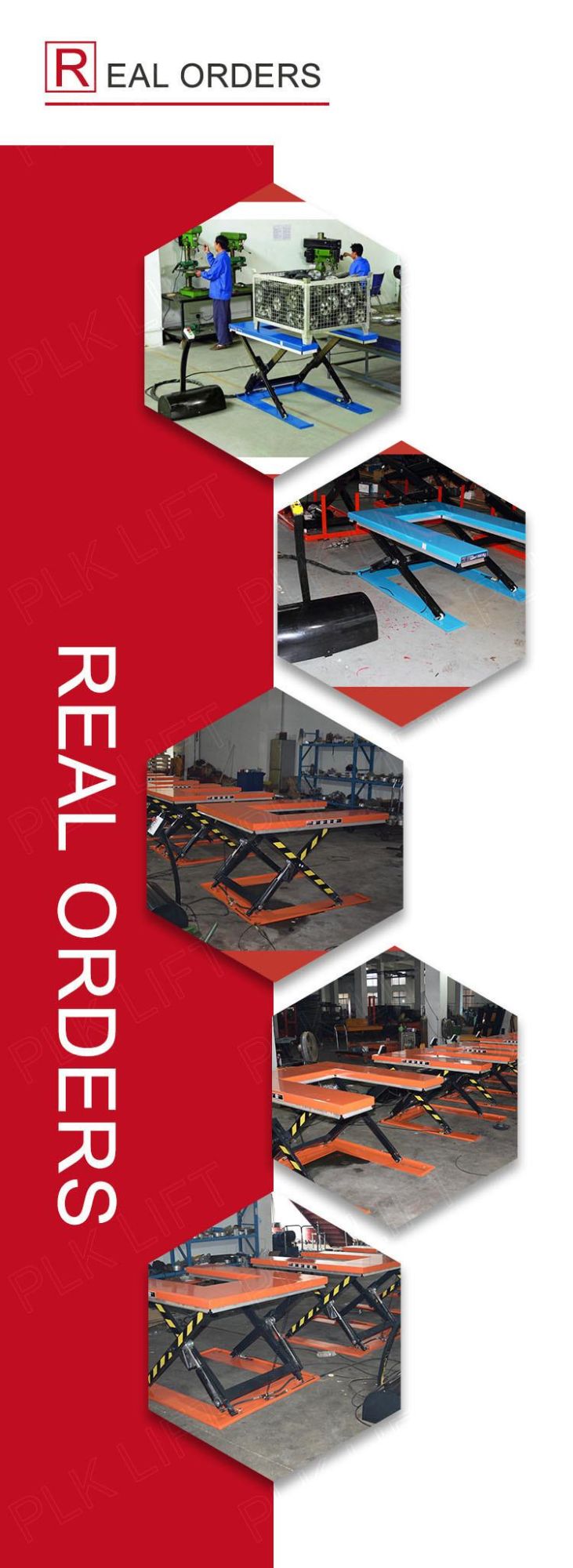

Bulk Order Show



1) One year Free Parts Replacement Policy whereby any non-human caused mechanical or structural failure qualifies for parts replacement free of charge. Parts include but not limited to pumps, engines, cylinders.
2) Life Technical Support via video link or email, bilingual team 24/7 on standby.



Remarks: All products are CE marked, meeting safety regulations. Should you be interested in any of them, make yourself at home and feel free to contact me. I'm sure a good solution can be offered to you through my patience and dedication to your satisfaction.

Send an inquiry to get best price...
