• Model NO.：JCPT1523RT
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Work Height：15.7m
• Platform Height-Elevated：13.7m
• Platform Dimension (Length)：2.67m
• Platform Dimension (Width)：1.12m
• Overall Height (Rails up)：2.65m
• Platform Capacity：260kg
• Max. Number of Workers：2
• Drive Speed (Raised)：0.8km,H
• up/Down Time：88,60s
• Gross Weight：3570kg
• Battery：250ah Li-ion 24V,30A
• Transport Package：Nude Package
• Specification：4.88*2.27*2.28m
• Trademark：Dingli
• Origin：China
• HS Code：8428909090
• Production Capacity：1000

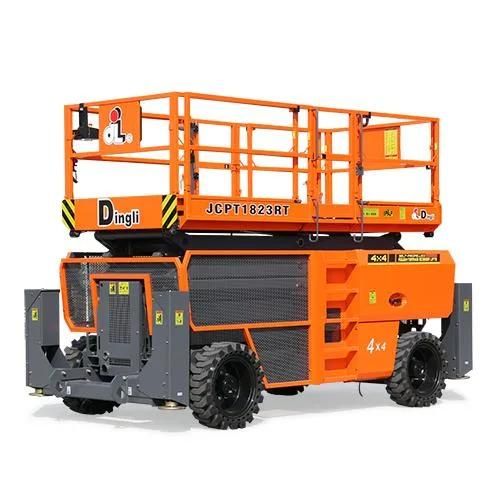

ModelJCPT1823RTJCPT1523RTMax. Working Height A18.00m15.00mMax. Platform Floor Height B16.00m13.00mOverall Length(with/without outriggers) C4.88m/3.98m4.88m/3.98mOverall Width D2.27m2.27mOverall Height(rails up)3.19m2.98mOverall Height(rails down) E2.49m2.28mPlatform Size(length/with F)3.98m×1.83m3.98m×1.83mPlatform Extension Size G6.57m×1.83m6.57m×1.83mGround Clearance0.22m0.22mWheel Base H2.86m2.86m



S.W.L680kg680kgS.W.L On Extension227kg227kgMaximum Workers Number67Turning Radius(Inside/Outside)2.35m/5.20m2.35m/5.20Travel Speed(Stowed)6.1km/h6.1km/hTravel Speed(Raised)1.1km/h1.1km/hUp/Down Speed123/74sec70/52secGradeability40%50%Maximum Working Slope2°/3°2°/3°Tyre33×12-2033×12-20Engine(Per-kins 404D22)38kW/3000rpm38kW/3000rpmEngine(Ku-bota V2403-M-DI)36.5kW/2600rpm36.5kW/2600rpmHydraulic Tank130L130LDiesel Tank100L100L

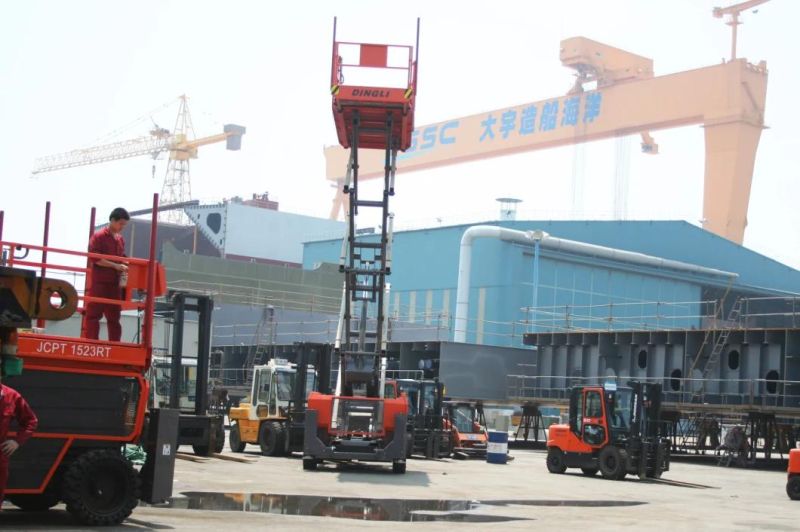

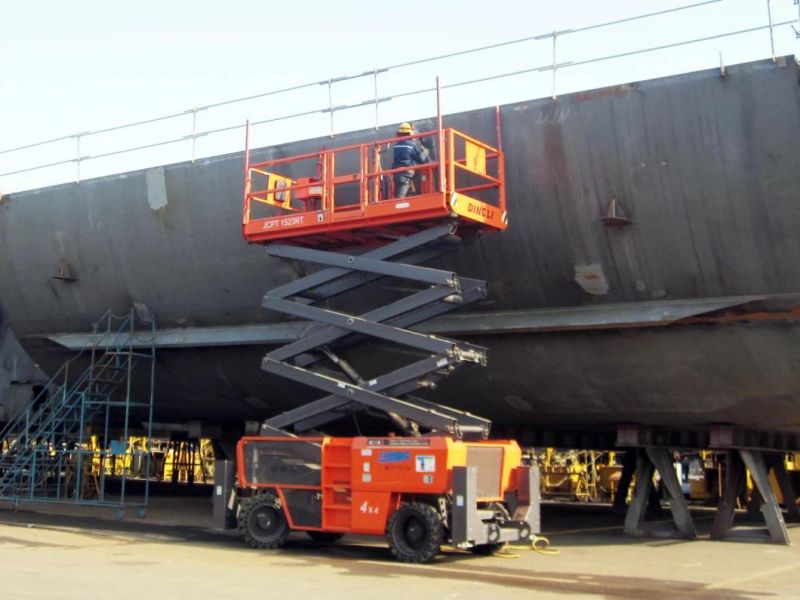

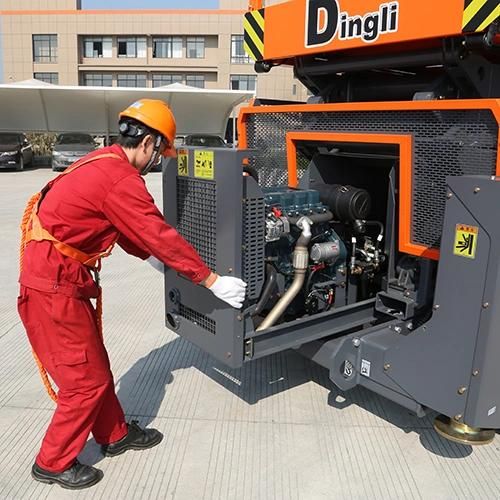

Pictures:
