• Model NO.：MG600-1
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Loading Capacity：125kg
• Platform Height：6m
• Platform Size：0.78*0.70m
• Ground Clearance：0.05m
• Gradeability：25%
• Driving Motor：0.4kw
• Lifting Motor：2kw
• Weight：850kg
• Transport Package：PVC Film
• Specification：1.36*0.79*1.98m
• Trademark：CHEN LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：3000 Piece,Year

Basic Info.

Model NO. MG600-1 Feature Explosion-Proof Certification CE, ISO 9001 Loading Capacity 125kg Platform Height 6m Platform Size 0.78*0.70m Ground Clearance 0.05m Gradeability 25% Driving Motor 0.4kw Lifting Motor 2kw Weight 850kg Transport Package PVC Film Specification 1.36*0.79*1.98m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Piece/Year

Product Description

Self-Propelled Economical Vertical Lift

Self-Propelled Economical Vertical Lift is is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work, and is widely used in hotels, hotels, hospitals, stations, airports, warehouses and other occasions.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind
Specification
Swivel Turning Type

Model	MG600-1	MG750-1	MG750-2	MG900-2
Lift Capacity	125Kg	125Kg	200Kg	150Kg
Platform Height Max	6m	7.5m	7.5m	9m
Stowed Length	1.36m	1.36m	1.5m	1.5m
Stowed Width	0.79m	0.79m	1.0m	1.0m
Stowed Height	1.98m	1.98m	1.99m	1.99m
Platform Size	0.78*0.70m	0.78*0.70m	1.00m*0.70m	1.00m*0.70m
Ground Clearance	0.05m	0.05m	0.05m	0.05m
Wheelbase	1.15m	1.15m	1.28m	1.28m
Gradeability	25%	25%	25%	25%
Maximum Working Slope	1.5°	1.5°	1.5°	1.5°
Driving Wheel	0.23*0.08m	0.23*0.08m	0.25*0.08m	0.25*0.08m
Front Tire	8in	8in	8in	8in
Driving Motor	0.4Kw	0.4Kw	0.5Kw	0.5Kw
Lifting Motor	2Kw	2Kw	2Kw	2Kw
Power Source	2*12V/120Ah	2*12V/120Ah	2*12V/120Ah	2*12V/120Ah
Charger	24V/12A	24V/12A	24V/12A	24V/12A
Weight	850Kg	880Kg	1100Kg	1250Kg

Hydraulic Turning Type

Model	MG600-1S	MG750-1S	MG750-2S	MG900-2S
Lift Capacity	125Kg	125Kg	200Kg	150Kg
Platform Height Max	6m	7.5m	7.5m	9m
Stowed Length	1.44m	1.44m	1.55m	1.55m
Stowed Width	0.82m	0.82m	1.0m	1.0m
Stowed Height	2.09m	2.09m	2.09m	2.09m
Platform Size	0.78*0.70m	0.78*0.70m	1.00m*0.70m	1.00m*0.70m
Ground Clearance	0.05m	0.05m	0.05m	0.05m
Wheelbase	1.15m	1.15m	1.28m	1.28m
Gradeability	25%	25%	25%	25%
Maximum Working Slope	1.5°	1.5°	1.5°	1.5°
Driving Wheel	0.23*0.08m	0.23*0.08m	0.305*0.1m	0.305*0.1m
Front Tire	8in	8in	8in	8in
Driving Motor	0.8Kw	0.8Kw	0.8Kw	0.8Kw
Lifting Motor	2Kw	2Kw	2Kw	2Kw
Power Source	2*12V/105Ah	2*12V/105Ah	2*12V/105Ah	2*12V/105Ah
Charger	24V/15A	24V/15A	24V/15A	24V/15A
Weight	1100Kg	1200Kg	1350Kg	1500Kg

Details

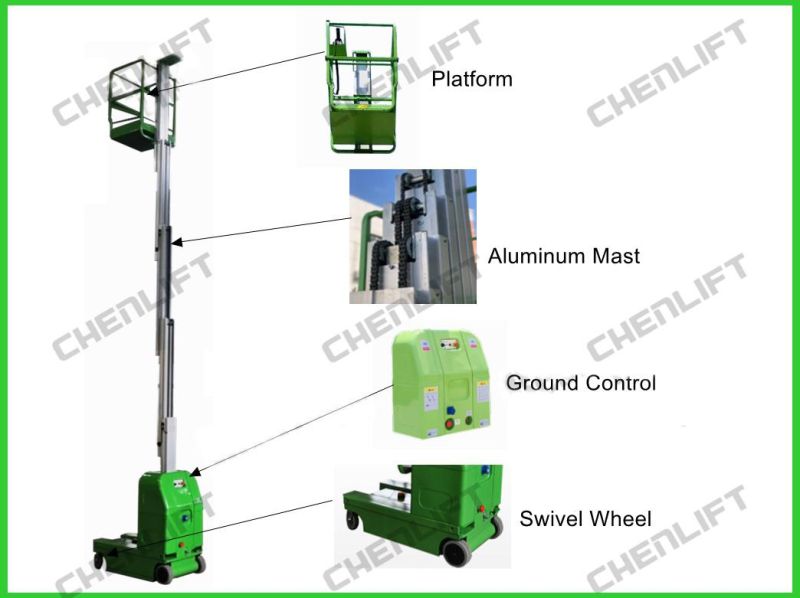

Swivel Turning Type

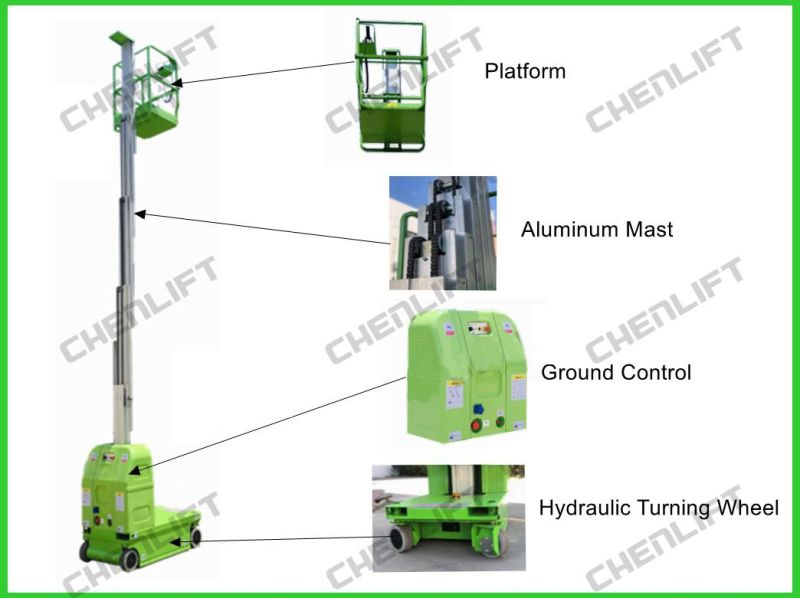

Hydraulic Turning Type
Standard Configuration for Self-Propelled Economical Vertical Lift


1. Proportional controls
2. DC power supply
3. Drivable at full height
4. Beacon
5. Non marking tyre
6. 2WD
7. Automatic braking system
8. Anti burst valve on cylinder
9. Emergency stop button
10. Auxiliary lowering
11. On board Diagnostic system
12. Tilt sensor with alarm
13. Forklift pockets
14. Charger protection
15. All motion alarm
16. Horn
17. Double wheel brake
18. Hydraulic braking release
19. Anti-dust cover on the mast
20. Powder coating painting

Optional Configuration for Self-Propelled Economical Vertical Lift
1.AC power to platform
2.Overload sensor with alarm
3.Platform working light
4.Air tube to the platform
5.Platform extension
6.Self -lock gate on platform(Hinge type top open door)
7.Hour meter
8.Machine Body cover
9.Wireless tracking

Company Introduction

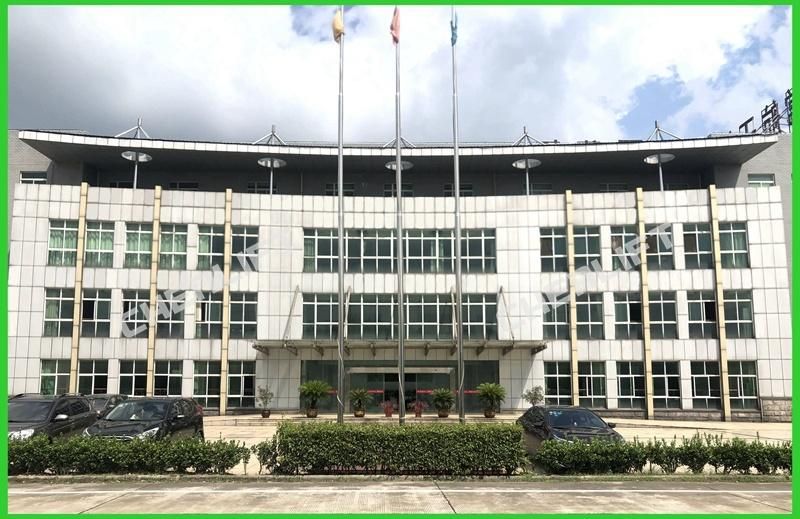

Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.

Our belief is to produce the high quality and safety machines to our customers, and provide the high efficiency services.
Many tenacity workers, we, from different places to meet in Bestmax and  group into an active team, through our effort, to maximum at everything.

Factory Equipment

Client & Factory

Client &Exhibition

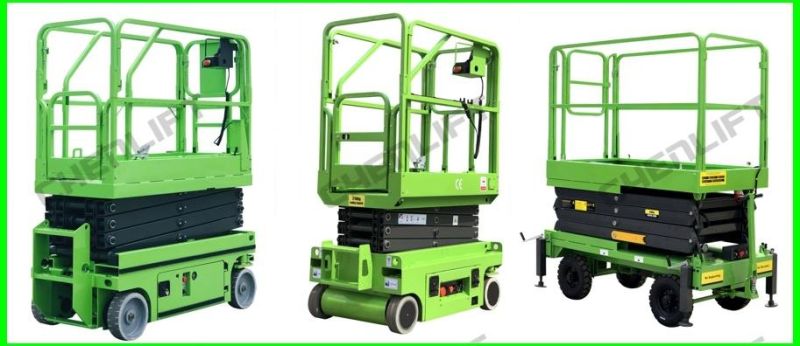

Other products

Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
