• Model NO.：GTJZ
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS
• Platform Height：6m 8m 10m 12m
• Lift Method：Hydraulic
• Platform Size：2270*1150mm
• Voltage：110V 220V 240V
• Frequency：50Hz,60Hz
• Drive Power：DC Battery
• Lift Power：DC Battery
• Guardrail Height：1.1m
• Surface Treatment：Plastic Spray
• Safety Precaution 1：Anti Explosion Valve
• Certifications：CE
• Color：Red Yellow Blue Customized
• Lifting Speed：4-6m,Min
• Transport Package：Standard
• Specification：4CBM
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. GTJZ Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS Platform Height 6m 8m 10m 12m Lift Method Hydraulic Platform Size 2270*1150mm Voltage 110V 220V 240V Frequency 50Hz/60Hz Drive Power DC Battery Lift Power DC Battery Guardrail Height 1.1m Surface Treatment Plastic Spray Safety Precaution 1 Anti Explosion Valve Certifications CE Color Red Yellow Blue Customized Lifting Speed 4-6m/Min Transport Package Standard Specification 4CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500 Sets/Month

Product Description

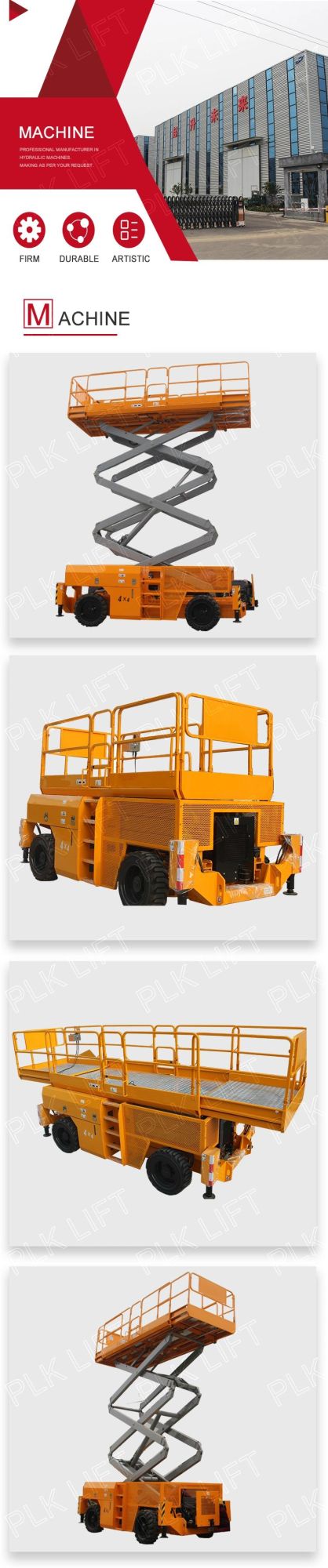

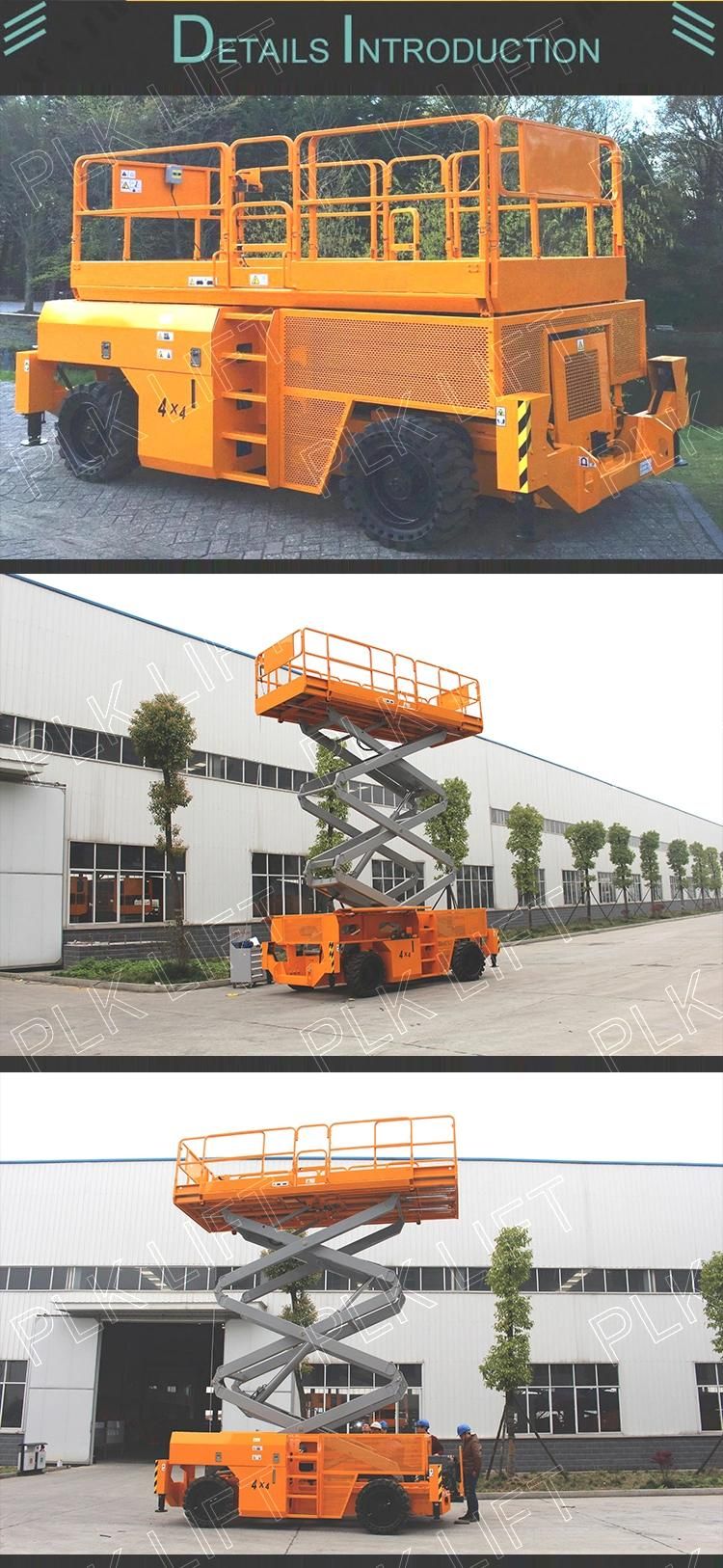

High End Outdoor Hydraulic mobile Lift for Construction
Aerial Lift Platform is configured with American TORJAN Battery, CUITIS control system, Sweden bucher pump station, Italy doyle hydraulic valve and American White driving wheel. It is powered by DC with adjustable moving speed.
There are many safety precautions, including explosion-proof valves, spillover valve and emergency decline valve etc..

	GTJZ-08RT	GTJZ-10RT	GTJZ-12RT
Working height max(m)	10	12	14
Platform height max(m)	8	10	12
(1)Platform height min(m)	1.22	1.34	1.46
(2)Outreach(m)	1.5	1.5	1.5
Lifting capacity(kg)	567	454	345
Lifting capacity(kg)(Extended platform)	136	136	136
Platform Size
(3)Lateral length(m)	2.5	2.5	2.5
(4)Extended length(m)	4	4	4
(5)Lateral width(m)	1.6	1.6	1.6
(6)Fence height(m)	1.15	1.15	1.15
(7)Skirting board height(m)	0.15	0.15	0.15
Stowed size
(8)Stowed length(m)	2.67	2.67	2.67
(9)Width(m)	1.75	1.75	1.75
(10)Height(m)	2.38	2.5	2.6
(11)Folded height(m)	1.68	1.8	1.98
(12)Wheelbase(m)	1.85	1.85	1.85
Ground clearance(m)	0.17	0.17	0.17

The Aerial Lift Platform moves and lifts all by battery power. Operator can control lifting, moving, turning on the platform through control system.




Factory Show  Jinan PLK Machinery Co., Ltd located in Jinan City, Shandong Province, was established in 2003. In passed years, Jinan PLK has developed into a professional manufacturer of aerial working platform, lifting machine and material lift. PLK Machinery is committed to providing customers with best quality products and the professional services. Every year, we invest a lot of money in product renewal. High quality products and professional services make us a leader in the industry.
