• Lip Width (mm)：400
• Tail Board Length (mm)：800
• Platform Length(mm)：2900
• Slope Length(mm)：7500
• Operating：Manually, or Optional Electrically
• Application：Loading and Unloading Container Truck Forklift
• Lip Materials：14mm Q235B Plate
• Lifting Frame：Profile Steel
• Lower Truss：Rectangle Tube Q235B
• Tyre：500-8 Solid Tyre
• Certificate：Ce,ISO,RoHS
• Transport Package：Simple Packing
• Specification：2000*2000*200
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：1000

Basic Info.

Lip Width (mm) 400 Tail Board Length (mm) 800 Platform Length(mm) 2900 Slope Length(mm) 7500 Operating Manually, or Optional Electrically Application Loading and Unloading Container Truck Forklift Lip Materials 14mm Q235B Plate Lifting Frame Profile Steel Lower Truss Rectangle Tube Q235B Tyre 500-8 Solid Tyre Certificate Ce,ISO,RoHS Transport Package Simple Packing Specification 2000*2000*200 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 1000

Product Description

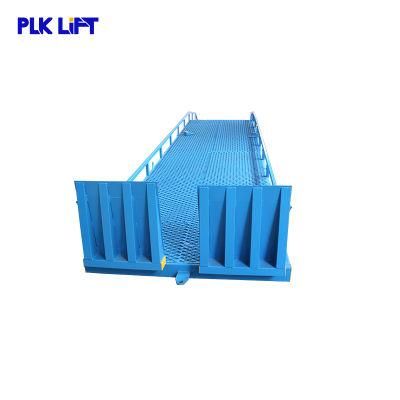

6-15ton hydraulic mobile container loading ramp
 Mobile Dock Yard Ramp is easy to be operated by manually or electrically.

The dock ramp is widely used in dock and factory for containers loaded and unloaded. Save manpower, improve work efficiency, and be well received by users. All our products are CE certified ,we have exported many dock ramp to world markets and received many good reputations.

The load capacity of dock ramp is 6t-15t ,different load capacity their price is different.As for color,it can be customized.We will design the color according to your requirements.

1. Data Sheet:

Model No.	MDR-6	MDR-8	MDR-10	MDR-12
Load Capacity (t)	6	8	10	12
Platform Size (mm)	11000*2000	11000*2000	11000*2000	11000*2000
Overall Size(mm)	11000*2000*1400	11000*2000*1400	11000*2000*1400	11000*2000*1400
Lip Width (mm)	400	400	400	400
Tail Board Length (mm)	800	800	800	800
Platform Length(mm)	2900	2900	2900	2900
Slope Length(mm)	7500	7500	7500	7500
Adjustable Range of Lifting Height(mm)	1000~1800	1000~1800	1000~1800	1000~1800
Operating	Manually	Manually	Manually	Manually
Pit Size (mm)	2080*2040*600	2080*2040*600	2080*2040*600	2080*2040*600
Platform Materials	3mm checked steel plate +7mm steel screen	4mm checked steel plate +7mm steel screen	4mm checked steel plate +7mm steel screen	5mm checked steel plate +8mm steel screen
Lip Materials	14mm Q235B plate	16mm Q235B plate	18mm Q235B plate	20mm Q235B plate
Lifting Frame	120×60×4.5 profile steel	120×60×4.5 profile steel	160×80×4.5 profile steel	200×100×6 profile steel
Bed Frame	120×60×4.5 profile steel	120×60×4.5 profile steel	120×60×4.5 profile steel	160×80×4.5 profile steel
Lower Truss	100*50*3 rectangle tube Q235B	100*50*3 rectangle tube Q235B	100*50*3 rectangle tube Q235B	100*50*3 rectangle tube Q235B
Guardrails	60*40*3 rectangle tube Q235B	60*40*3 rectangle tube Q235B	60*40*3 rectangle tube Q235B	60*40*3 rectangle tube Q235B
Tyre	500-8 solid tyre	500-8 solid tyre	600-9 solid tyre	600-9 solid tyre
Cylinder Pin	45# Ø50 rod steel*4	45# Ø50 rod steel*4	45# Ø50 rod steel*4	45# Ø50 rod steel*4
Lifting Hydraulic Cylinder	HGS series Ø80/45	HGS series Ø80/45	HGS series Ø80/45	HGS series Ø80/45
Lip Hydraulic Cylinder	HGS series Ø40/25	HGS series Ø40/25	HGS series Ø40/25	HGS series Ø40/25
Hydraulic Oil Pipe	Double wire mesh high pressure tubing 2-10-43MPa	Double wire mesh high pressure tubing 2-10-43MPa	Double wire mesh high pressure tubing 2-10-43MPa	Double wire mesh high pressure tubing 2-10-43MPa
Electrical appliance	Delixi	Delixi	Delixi	Delixi
Hydraulic Oil	ML series antiwear hydraulic oil 6L	ML series antiwear hydraulic oil 6L	ML series antiwear hydraulic oil 6L	ML series antiwear hydraulic oil 6L
Net Weight(kg)	2350	2480	2750	3100
40'container Load Qty	3sets	3sets	3sets	3sets

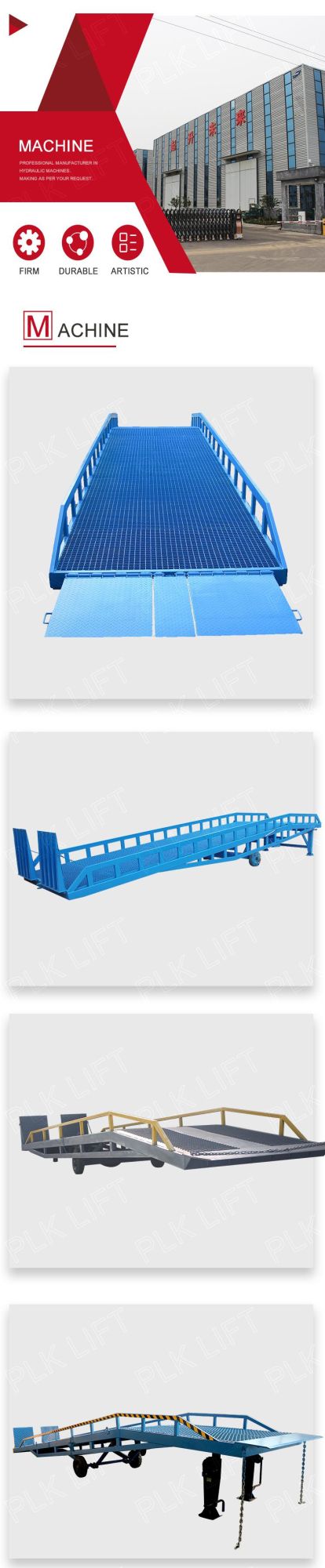

2. Photos Review:

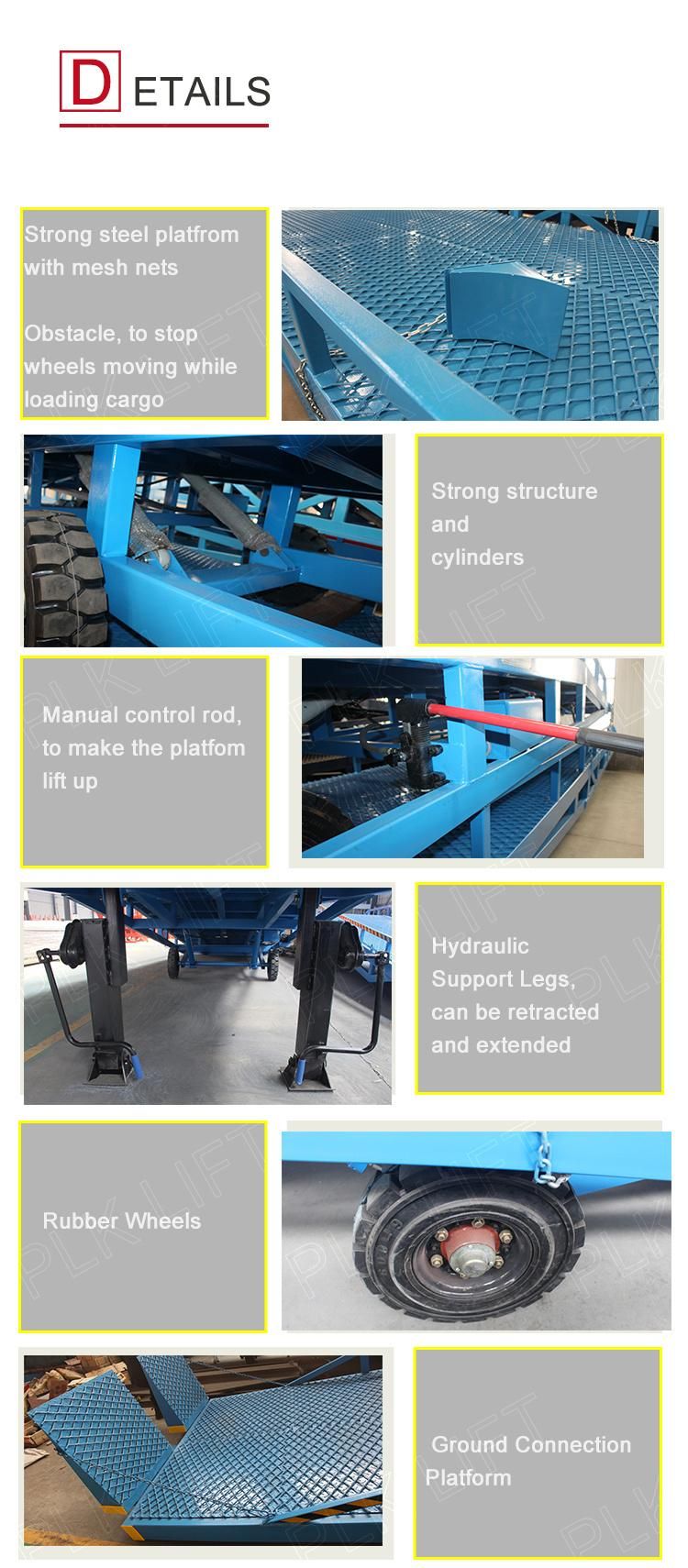

3. Details Disply:

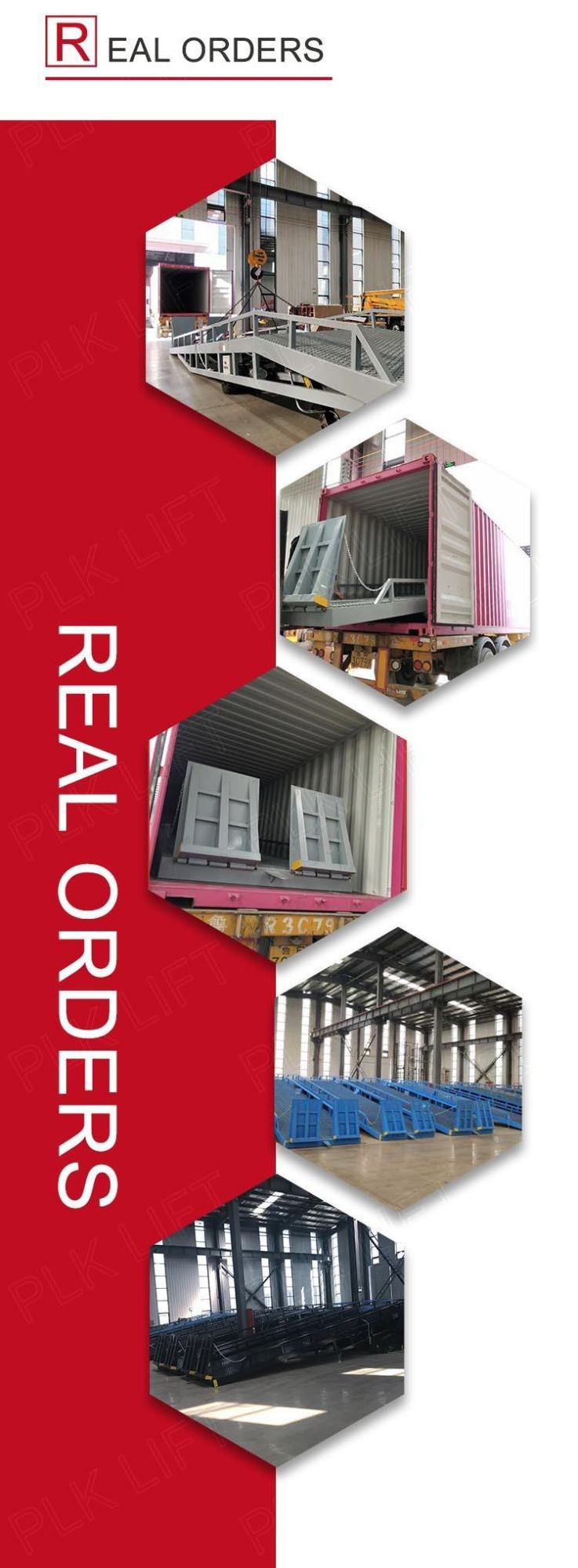

4. Real Orders Show. Applicable to all kinds of vehicles on the loading and unloading site. Loading/unloading platform, lifting platform.

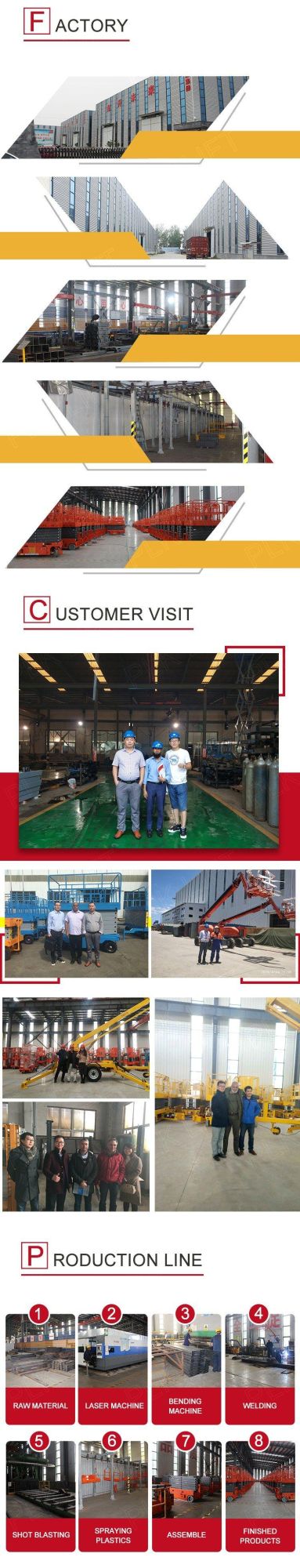

5. Welcome to visit our factory and place the order with us.


6. All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
