China 5 Ton Chain Pulley Block Mechanism

Shanghai Yiying Crane Machinery Co., Ltd.
  • Application：Double Beam Crane, Gantry Crane, Single Grinder Crane, Small Crane, Lifting Equipment
  • Type：Chain Hoist
  • Sling Type：Chain
  • Lift Speed：Depends
  • Maximum Lifting Height：3m
  • Chain Falls：2

Base Info

  • Model NO.：VC-B 5 ton chain pulley block
  • Certification：CE, ISO9001:2000, TUV
  • Condition：New
  • Color：Depends
  • Name：Vc_B Manual Hoist
  • Easy Lift：Yes
  • Gear：National Standard
  • Capacity：5t
  • Hook：Wide Thick Forged Forged
  • Body：Robust
  • Warranty：2 Year
  • Zinc Hand Chain：Available
  • G80 Chain：Yes
  • Transport Package：Carton, Wooden Case, Pallet, and So on
  • Specification：CE, ISO
  • Trademark：HUGO
  • Origin：Shanghai
  • HS Code：8425190000
  • Production Capacity：60000 PCS,Year

Description

 Product ParameterModelVC-B 0.5VC-B 1VC-B 1.5VC-B 2VC-B 3VC-B 5VC-B 10VC-B 20VC-B 30VC-B 50Capacity(t)0.511.523510203050Standard lift(m)2.52.52.53333333

Running test load

(t)

0.751.52.2534.57.515304575

No.of falls of load

chain

111122481224

Load chain

diameter(mm)

56.37.187.199999Dimension(mm) A129149.5157.5161.5151.5163207215350406B136145164.5187164.5211398650680962C27031739941446563679889013802578Net weight(kg)8.41216.2202441791932201092

Packing(L*W*H)

(cm)

22x14x1525x19x1633x24x1633x24x1934.5x24x1640x30x1948x4218.5

78x68x20

85x67x30

110x100

x130



 Features1. High quality, economical, safe and reliable hand chain block.2. Featuring a drop forged load hook to prevent snapping when overloading.3. Factory tested and certified.4. Heat treated for greater strength and to prevent wear.5. The opening of the hooks has been made wider for easier handling and working. 6. Reliable disk brake and premium grade alloy chain.7. Heat treated for greater strength and to prevent wear.

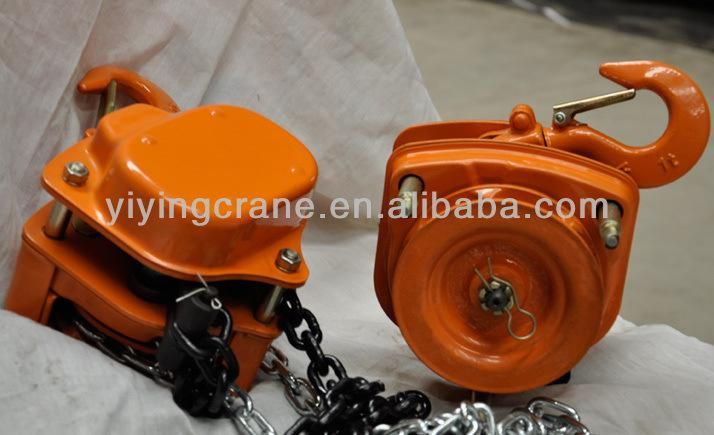

Physical diagram shows

China 5 Ton Chain Pulley Block Mechanism
  High quality, economical, safe and reliable hand chain block

 Our Service1. We can make special sample according to the customer's requirement.2. We have more than 50 professional technical team, provide best after-sales service.3. Fast delivery time.4. We have CE, TUV and GS certification. FAQ

1. What about the lead time for mass production?

Hoestly, it depends on the order quantity and specification and the season you place the order. About 10-20days will be finished. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

2. What is your terms of delivery ?

We accept EXW,FOB,CFR,CIF,etc. you can choose the one which is the most convenient or cost effective for you .

3. Which payment terms will you receive ?

T/T, L/C, Western Union.

4. How about your quality control before shipment?

All products will have been strictly quality checked and tested in house before packing.All products will be well packed before shipping .

5. How long is the warranty ?

The whole machine of all our products have 24 months warranty , and we sure the product will be free from maintenance within warranty period .Low charge for continue maintenance when warranty is expired.
