• Model NO.：spreader-JL-038
• HS Code：8431499900
• Production Capacity：5001 Sets Per Year

Basic Info.

Model NO. spreader-JL-038 HS Code 8431499900 Production Capacity 5001 Sets Per Year

Product Description

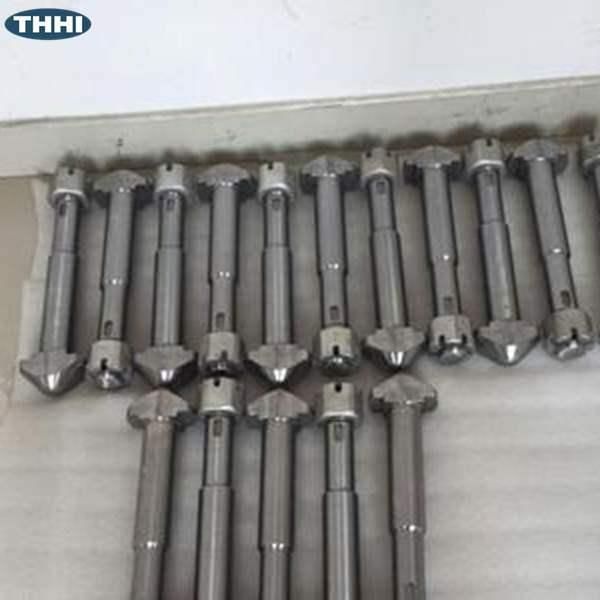

Twist Lock Container Spreader Spare Parts ISO Floating Twist Lock,


Floating Transfer Pin of Container Spreader
The utility model relates to a floating transfer pin of a container lifting appliance, which comprises a transfer pin and a guide sleeve which is sleeved outside the transfer pin, a spherical support bearing which is installed on the transfer pin, a transfer handle which is installed on the spherical support bearing, and a transfer handle nut. The upper part of the spherical bearing is spherical bearing surface, the lower part of the spherical bearing is concave spherical surface, and the spherical bearing surface and concave spherical surface are connected with each other.

The floating transfer pin of the utility model allows swing in a large range, and realizes all-round floating. When the floating transfer pin of the utility model is hanging the container, it can not only bear the pure tension, but also make the transfer pin more easily inserted into the corner fitting hole on the container. The utility model can rotate the lock in floating, and can load and unload the container with slight deformation.


THHI Magnetic particle or dye penetrant testing shall be carried out for container lifting appliance accessories, lifting appliance rotary lock, lifting appliance pin, lock head, twistlock pin and nut after handling 100000 cases in total. Magnetic particle or dye penetrant testing shall be carried out again after handling 150000 cases in total. After using for 2 years in total or handling 200000 cases in total, the pin and nut must be scrapped and replaced by force If the quality problems of the transfer pin and nut occur within 200000 cases of loading and unloading and are not caused by human, we shall be fully responsible for the quality problems We undertake all kinds of high-quality resale, used in all kinds of lifting appliances, lifting appliances on the shelf, super elevated and other lifting mechanisms, well received by users. We can according to the customer request, carries on the mapping to the physical object, the redesign, the consummation. Please contact us in time if necessary.

Contact our Sales &Get the Price with details Specifcation:
