Lifting Equipment Jtpb-1.2*1.0 Electric Single Drum Mining Wire Rope Winch
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Type：Electric Winch
- Speed：Fast
- Carrying Capacity：Middle-Level
- Tonnage：2t to 10t
- Reel Number：1
- Feature：Explosion-Proof
Base Info
- Model NO.：JTPB-1.2*1.0
- Certification：CE
- Standard：National Standards
- Model：Jtpb-1.2*1.0
- Drum Diameter：1200mm
- Drum Width：1000mm
- Max Wire Rope Tension：30kn
- Wire Rope Max Length First Layer：170m
- The Second Layer：344m
- The Third Layer：516m
- Wire Rope Max Dia.：20mm
- Wire Rope Breaking Pull Sum：275
- Average Lifting Speed：1.88-2.4m,S
- Electric Motor Rotating Speed：967r,Min
- Electric Motor Power：55-75kw
- Transport Package：Wooden Case or Carton Case
- Specification：4658*2680*1450mm
- Trademark：China Coal
- Origin：Shandong, China
- Production Capacity：1000 Sets Per Month
Description
Electric motorDimension
mm Weight
kg Diameter mm Width
mm The first layer The second layer The third layer Max Dia. mm Breaking pull sum Rotating speed r/min Power KW JTPB-1.2*1.0 1200 1000 30 170 344 516 20 275 1.88-2.4 967 55-75 4658*2680*1450 10421 JTPB-1.2*1.2 1200 1200 30 203 412 620 20 275 1.57-2.4 967 55-75 4458*2680*1450 9940 JTPB-1.6*1.2 1600 1200 45 215 433 655 26 405 1.56-4 975 95-155 5224*2800*1925 15195 JTPB-1.6*1.5 1600 1500 45 269 542 819 26 405 1.56-4 975 95-155 5524*2800*1925 15678 JKB-2 X1.8P 2000 1800 62 332 670 1013 32 558 2.5 735 200 6410*3234*2600 25560 JKB-2 X1.5P 2000 1500 62 277 557 842 32 558 2.5 735 200 6160*3234*2600 24780 JKB-2.5X2P 2500 2000 83 373 755 1143 40 747 3 740 315 6700*3610*2600 36998 JKB-2.5X2.3P 2500 2300 83 429 867 1312 40 747 3 740 320 7000*3610*2600 39620
mm
kg
mm

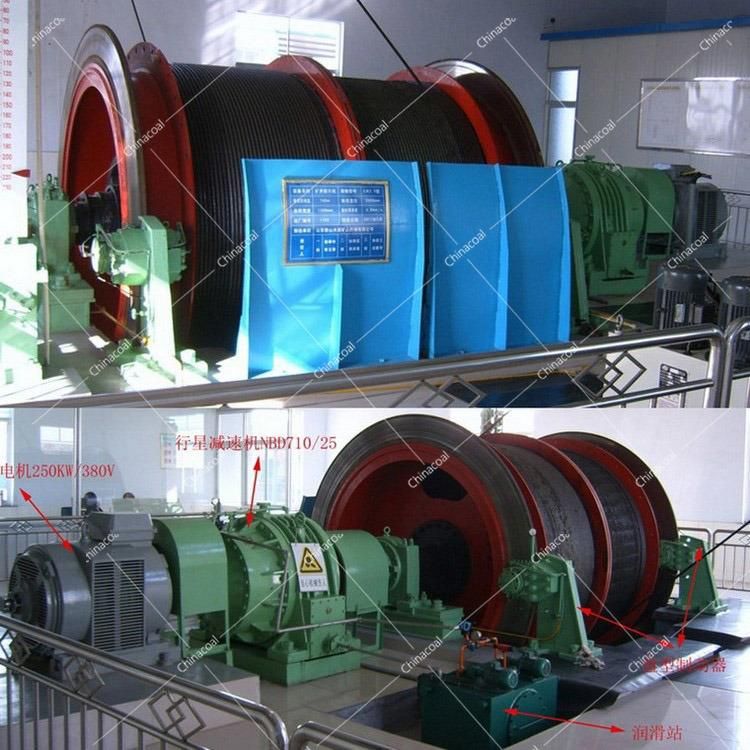

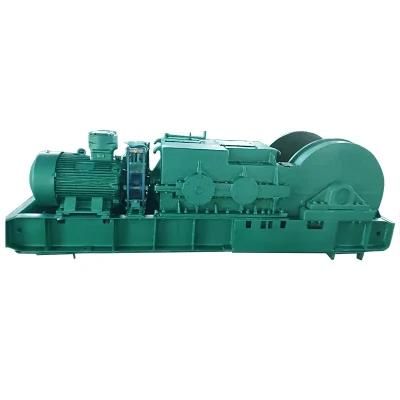

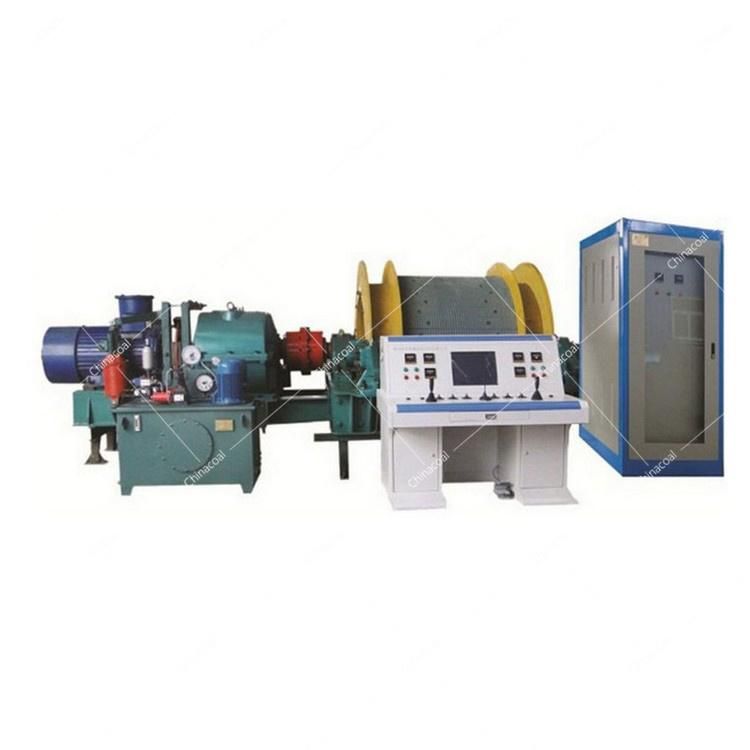

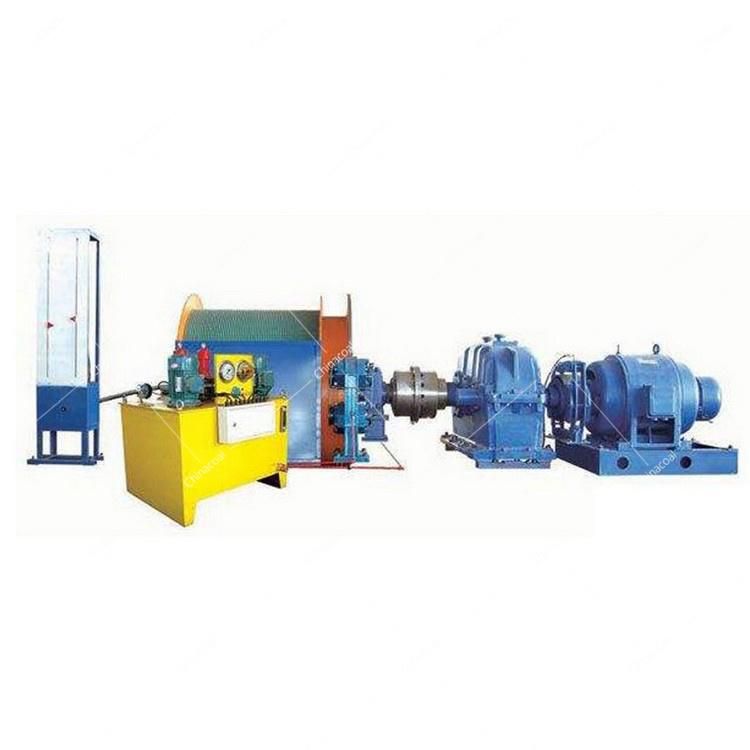

Photos Of Lifting Equipment JTPB-1.2*1.0 Electric Single Drum Mining Wire Rope Winch
