• Model NO.：JKL
• Tonnage：6T
• Reel Number：1
• Running Mode：Stationary
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Standard：Nonstandard
• Application：Pile Works, Construction Site, Port.etc
• Motor Type：Y280s-6
• Voltage：380V 50Hz 3p or Customized
• Transport Package：Wooden Package & Container
• Specification：2350*2100*1650mm
• Trademark：NYBON
• Origin：Henan Province, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. JKL Tonnage 6T Reel Number 1 Running Mode Stationary Feature Antiseptic Certification CE, ISO 9001 Standard Nonstandard Application Pile Works, Construction Site, Port.etc Motor Type Y280s-6 Voltage 380V 50Hz 3p or Customized Transport Package Wooden Package & Container Specification 2350*2100*1650mm Trademark NYBON Origin Henan Province, China Production Capacity 100 Sets Per Month

Product Description

Pile rig used JKL8 ton Winch for free falling hammerJKL high speed hand free fall winch, which mainly used for lifting weight drops vertical in construction area, factory and
mine site and port.
It is especially suitable for punching pilling works in the free fall at bridge, port, base construction engineering.
The structural character is main shaft rotating , Reasonable designed structure ,easy operation and excellent working
performance

Basic Parameters	Rated Load	Average Speed of Rope	Capacity of Rope	Rope Diameter	Motor Power	Dimension	Total Weight
Model	KN	m/min	m	mm	KW	mm	kg
JKL2	20	30	150	13	15	1370*1650*1210	1200
JKL3	30	30	200	15	22	1690*1740*1200	1800
JKL5	50	30	250	21	37	2300*2100*1650	3000
JKL6	60	36	250	24	45	2350*2100*1650	3200
JKL8	80	29	250	26	55	2440*2500*1800	5500
JKL10	100	29	250	28	75	2590*2540*1800	5800

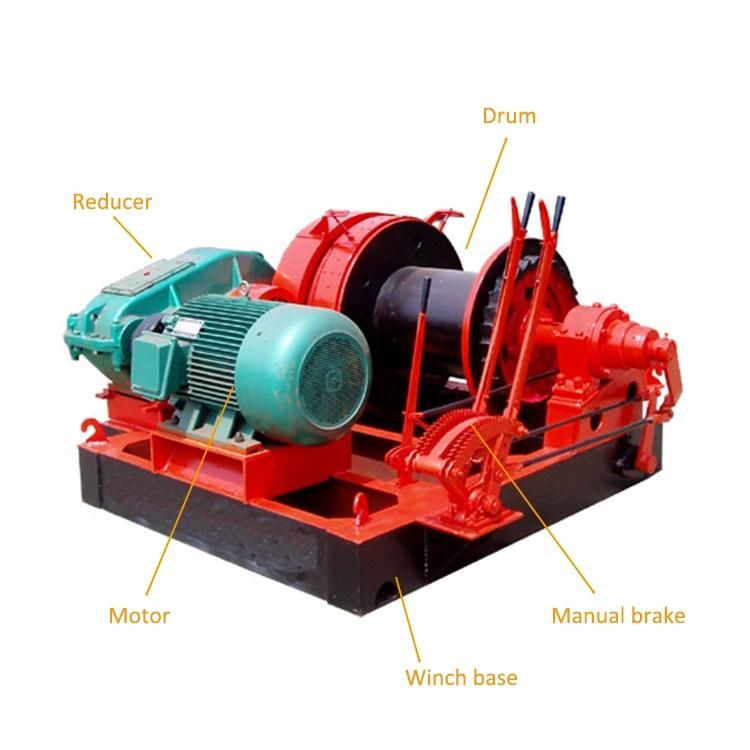

Conponents of Pile rig used JKL8 ton Winch for free falling hammer

1. Q: What's your MOQ?

  A: 1 Set;

2. Q: What's your package?

  A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

  A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and
actual period;

4. Q: What's your warranty period?

  A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

   A: Yes; We have;

6. Q: What kinds of products do you have?

    A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist;
Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

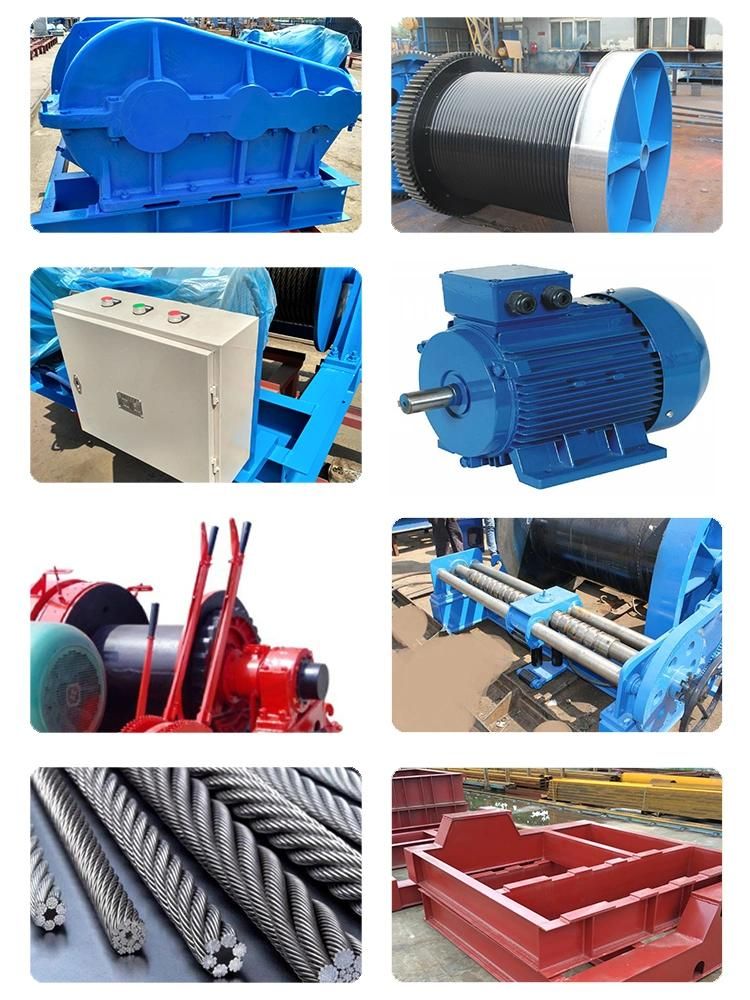

7. Q: Could we buy spare parts in local once they are out of work?

    A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there
is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

    A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook,
lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

    A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
