• Model NO.：JQHSP-50*12 series double-braking air winch
• Transport Package：Iron ,Plywooden Boxes, or as Customers′ Request
• Specification：ISO9001: 2008; API 7K; CCS
• Trademark：Dali
• Origin：Yantai, Shandong
• HS Code：84253990
• Production Capacity：100sets Per Month

Basic Info.

Model NO. JQHSP-50*12 series double-braking air winch Transport Package Iron /Plywooden Boxes, or as Customers′ Request Specification ISO9001: 2008; API 7K; CCS Trademark Dali Origin Yantai, Shandong HS Code 84253990 Production Capacity 100sets Per Month

Product Description

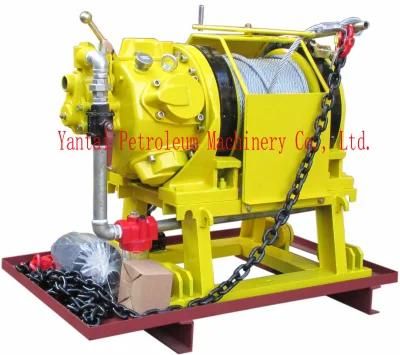

5 Ton Air Winch With Automatical Spooling / Rope Guider)
Product Introduction

JQHSP-50*12 air winch is a kind of manual operated single drum type air winch. It
Adopts compressed air as its power to drive air motor, driving drum via two grades gears
( to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.
Considering security, it is specially designed with hand and foot double manual brakes for
Fear of unexpected accidents. The double-braking air winch with air brake and hand brake,
Is competent to work under and extremely conditions, with 5 ton pull force(max), enabling
Starting with load for the high starting torque, it is also especially fit for hauling, lifting and
Other work in mines., construction engineering sites, platforms of oilfields off-sea and inland,
Etc.
Features

1. Relieves manual spooling, reduces labor intensity, improves work efficiency, and
Accordingly lowers security risks.
2. Wire rope winds in good order on the drum, which shall decrease security risk such as
Squashing, stuck, etc.
3. Less damage prolongs wire rope lifespan and lowers usage cost.
4. Merits of simple structure, compact design, and low breakdown make the winch applicable
To severe using conditions drilling crews.
5. Hand Brake and Foot Brake.
6. ISO, CCS, API appproved.


Amanda

Items	Parameters	Measurement  Unit
Rated Working Pressure	0.6-0.9	Mpa
Rated Pull Force	50	KN
Rated Cable Speed	12	m/min
Piston Air Motor Model	TMH17	-----
Piston Air Motor Rated Power	17	kW
Piston Air Motor Air Consumption	247	L/S
Drum Diameter	222	mm
Drum Width	335	mm
Drum Wheel Diameter	465	mm
Cable Diameter	15.875	mm
Cable Storage	120	m
Air Inlet Diameter	1 1/4	in
Configuration	1320*920*1000	mm
Weight	540	KG
