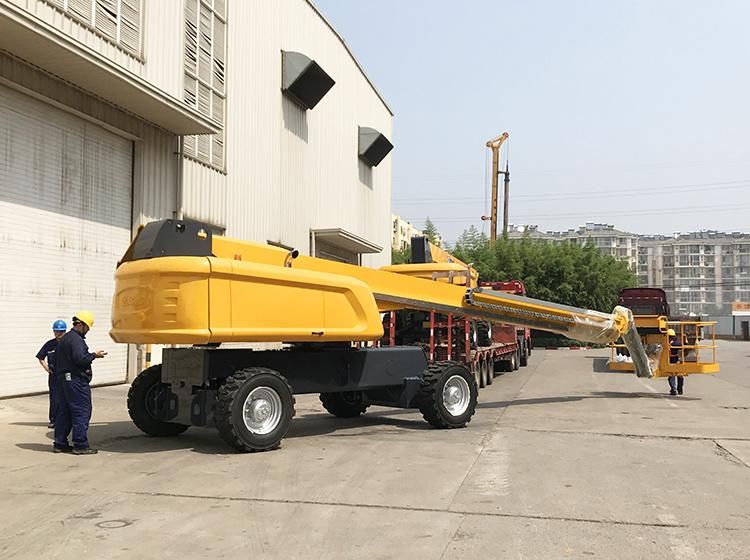

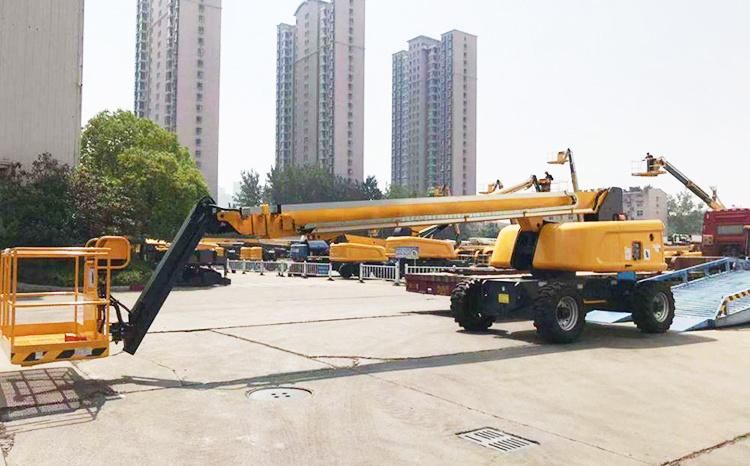

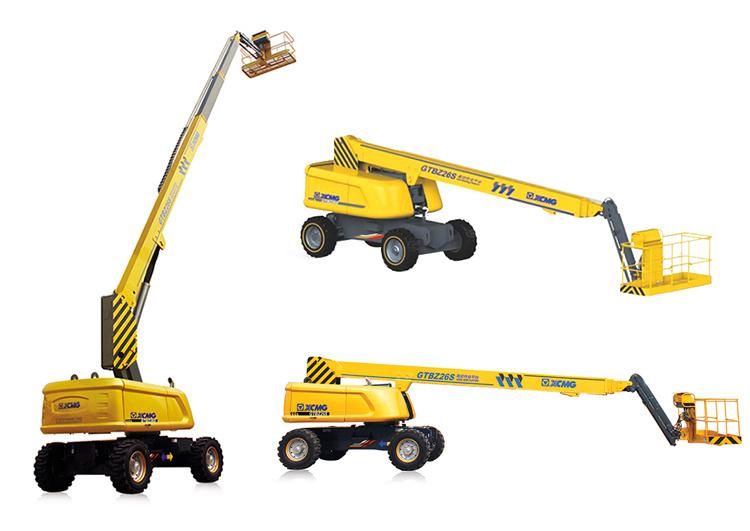

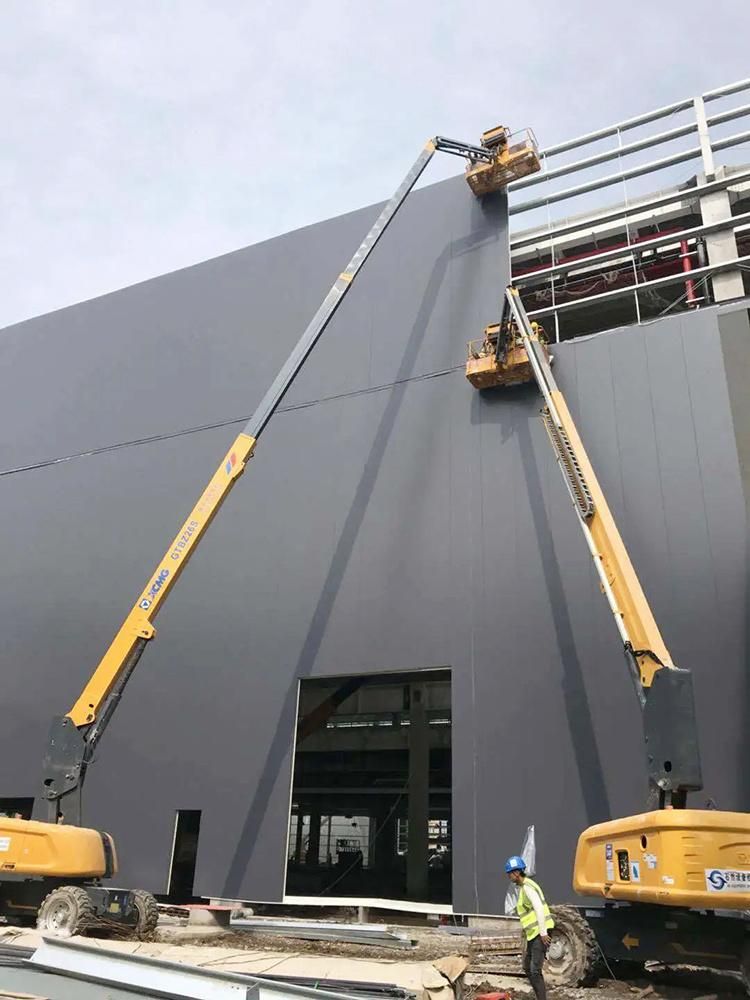

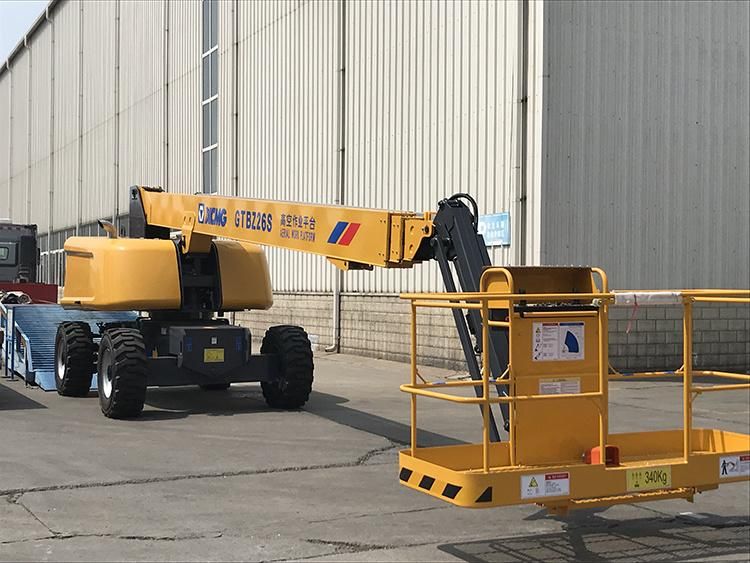

XCMG Manufacture 26m Gtbz26s Straight Boom Type Aerial Work Platform
Xuzhou Construction Machinery Group Co., Ltd.- Wheel Base：3000mm
- Total Weight：16600kg
- Max. Lifting：26m
- Platform Size：2400X900mm
- Maximum Speed：6.1km,H
- Product Name：XCMG Manufacture 26m Gtbz26s Straight Boom Type Ae
Base Info
- Model NO.：GTBZ26S
- Maximum Working Height：26m
- Transport Package：Container
- Specification：12100x2490x3050mm
- Trademark：XCMG
- Origin：Jiangsu, China
- HS Code：84301000
- Production Capacity：1000,Year
Description
Overview
Product DescriptionUnit Parameter value Overall Length mm 12100 Overall Width mm 2490 Overall Height mm 3050 Wheel Base mm 3000 Maximum Working Height m 27.9 Maximum Platform Height m 26.2 Maximum Working Range m 23.2 Maximum Load Capacity kg 340 Boom Luffing Range ° -5~+75 Crank Arm Luffing Range ° -65~+70 Rotation Angle of Rotating Platform ° 360 Maximum Tail Wagging mm 1400 Platform Size mm 2.4×0.9/1.8×0.8 Rotation Angle of Platform ° 180 Total Weight kg 16600 Maximum Travel Speed km/h 6.1 Minimum Turning Radius m 6.7 Minimum Ground Clearance mm 320 Maximum Grade Ability % 45 Tire Specification - 385/65-22.5 Engine Model - QSF2.8-71HP Rated Power of Engine kW/(r/min) 53/(2200)
Company Profile
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
Product Parameters
Description
Company ProfileFAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
