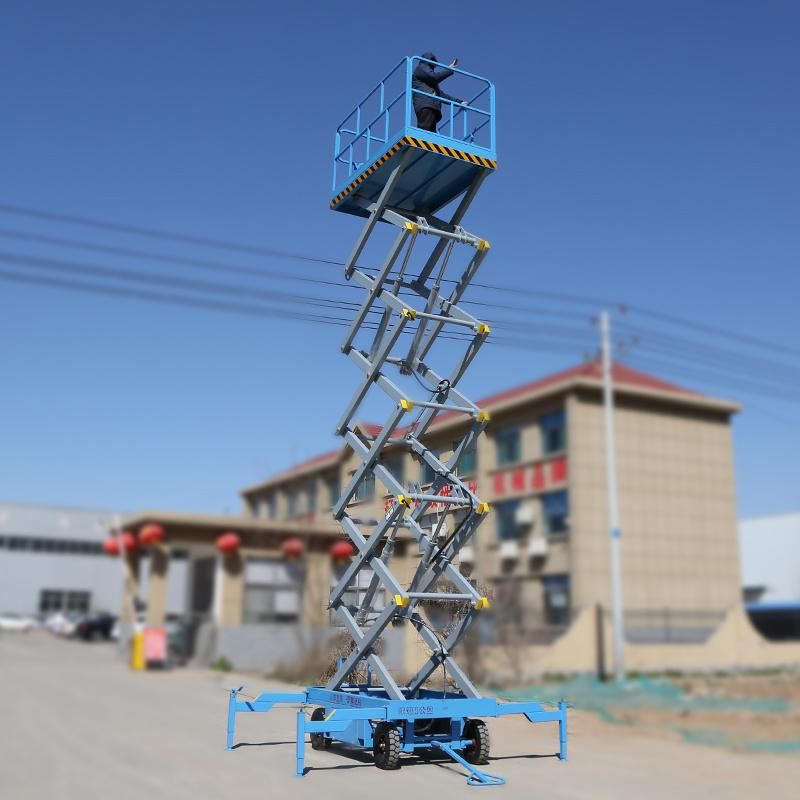

Shanding 6-18m 500kg Hydraulic Mobile Vertical Explosion Proof 4 Wheels Scissor Lift Platform with CE ISO Certification

Shanding Machinery (Shandong) Group Co., Ltd.
  • After-sales Service：Online
  • Warranty：1 Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Light Level
  • Moves：Vehicular

Base Info

  • Model NO.：QYCY0.5-6
  • Driven Type：DC
  • Running Mode：Moving
  • Feature：Explosion-Proof
  • Certification：CE, ISO 9001
  • Scissor Strut：120*60*3.75mm Q235
  • Chassis：100*50*3.75mm Q235
  • Power and Voltage：1.5kw,220V,50Hz
  • Tire：500-8 4 Pneumatic Tires

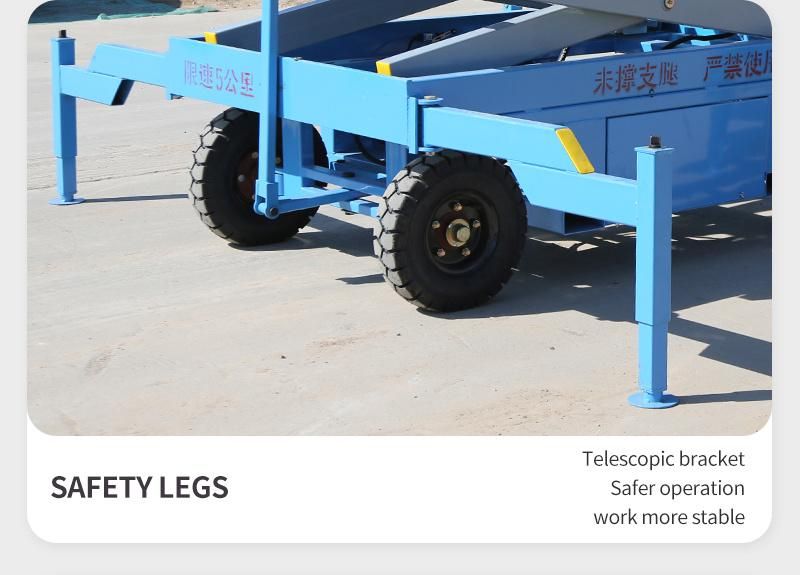

  • Outrigger：100*50*3.75mm Q235
  • Trademark：Shanding
  • Origin：Shandong
  • HS Code：8428909090
  • Production Capacity：500sets,Month

Description

mesa3mm flat plate bending                                   scissor strut120*60*3.75mm Q235                            chassis100*50*3.75mm Q235                              trackThe 5mm flat plate is bent as the rail, and the nylon slider is used as the guide wheel. The contact surface is large, the lifting is stable, and the shaking is small.        CylinderHSG70/45 4 pieces; sealing ring, durable, no leakage.hydraulic hose2-10-43 MPa double-layer steel mesh high pressure oil pipepumping stationAnshan Lisheng produces a special hydraulic pump station for lifting operation platforms. Equipped with emergency descending valve, the platform can be manually controlled to descend when power off; built-in relief valve can prevent the system pressure from being too high during upward movement, and play an overload protection functionpower and voltage1.5kw/220v/50hztire500-8        4 pneumatic tires              outrigger100*50*3.75mm Q235                   Distribution boxDelixi brandcontrol formUp and down control. The control part is equipped with a safety emergency stop to maximize the protection of property and personal safety.
Each operating part uses 36V safety control voltageLimit switchShanghai ASEAN BrandAxle pinMade of 45# round steel, galvanized.Hydraulic oil32# Great Wall anti-wear hydraulic oilLifting speed4-6 m/min, adjustable descending speedRust removal treatmentShot blasting, sand blasting and derusting treatment; remove the rust and splash on the surface of steel structural components, which can make the surface of steel components have a certain degree of uneven effect and increase the adhesion of powderSpray treatmentUse electrostatic powder spraying; the coating has excellent appearance quality, strong adhesion and mechanical strength, high color and brightness, and will not fade for a long time.
Shanding 6-18m 500kg Hydraulic Mobile Vertical Explosion Proof 4 Wheels Scissor Lift Platform with CE ISO CertificationShanding 6-18m 500kg Hydraulic Mobile Vertical Explosion Proof 4 Wheels Scissor Lift Platform with CE ISO CertificationShanding 6-18m 500kg Hydraulic Mobile Vertical Explosion Proof 4 Wheels Scissor Lift Platform with CE ISO CertificationShanding 6-18m 500kg Hydraulic Mobile Vertical Explosion Proof 4 Wheels Scissor Lift Platform with CE ISO Certification

Shanding 6-18m 500kg Hydraulic Mobile Vertical Explosion Proof 4 Wheels Scissor Lift Platform with CE ISO CertificationShanding 6-18m 500kg Hydraulic Mobile Vertical Explosion Proof 4 Wheels Scissor Lift Platform with CE ISO CertificationShanding 6-18m 500kg Hydraulic Mobile Vertical Explosion Proof 4 Wheels Scissor Lift Platform with CE ISO Certification
  1. Are you the original manufacturer?
    A: Yes, we are Shandong Davoo Machinery  Co., Ltd, one subsidiary of Shanding Group. Factory since the year 2003.

    2. What kind of payment terms can be accepted?
    A: Normally we accept T/T Payment

    3. Which incoterms 2010 terms can we work?
    A: Normally we can work on FOB (QINGDAO), CFR, CIF

    4. What about the delivery time?
    A: Within 7-10 days after receiving the deposit

    5. What about the warranty time?
    A: 1 year . We shoulder all costs during the warranty period, including the freight.

    6. What about the Minimum Order Quantity?
    A: The MOQ is 1 unit.
