Lifting Equipment

1000kg 2 Ton Pl Permanent Magnetic Lifter/Lifting Magnets for Lifting Steel Plate

Fushun Ejet Magnetic Equipment Co., Ltd.
  • Safety Factor:3.5 Times , 3.0 Times
  • Magnetic Intensity:12000GS
  • Rated Lifting Capacity:490~8780kg
  • Weight (Kg):11~95kg
  • Power (Kw):3.5~34.1kw
  • Cleaning:Matual Clean

Base Info

  • Model NO.:PL-1000
  • Certification:Ce ISO
  • Rated Voltage:DC -220V
  • Material:NdFeB
  • NdFeB:Dalian & Shenzhen & Tianjin & Shanghai & Guangzhou
  • Transport Package:Export Packing
  • Specification:Permanent Magnet Lifting
  • Trademark:JSYY
  • Origin:Fushun, Liaoning, China
  • HS Code:85051190
  • Production Capacity:120sets,Month

Description

TypesRated Lifting CapacityLengthWidthHighWeightkgmmmmmmkgPL-300

300

205

909011

PL-600

600

27611510619

PL-1000

1000

31015013543

PL-1500

1500

38017215268PL-2000

2000

42518016095PL-5000

5000

530260255145CUSTOM

50~8600

custom---

The Structure
The TX series manual permanent magnetic chuck adopts high performance permanent magnetic material (NdFeB magnet) as its core component, thus realizin smaller size,higher lifting capacity and longer life span.

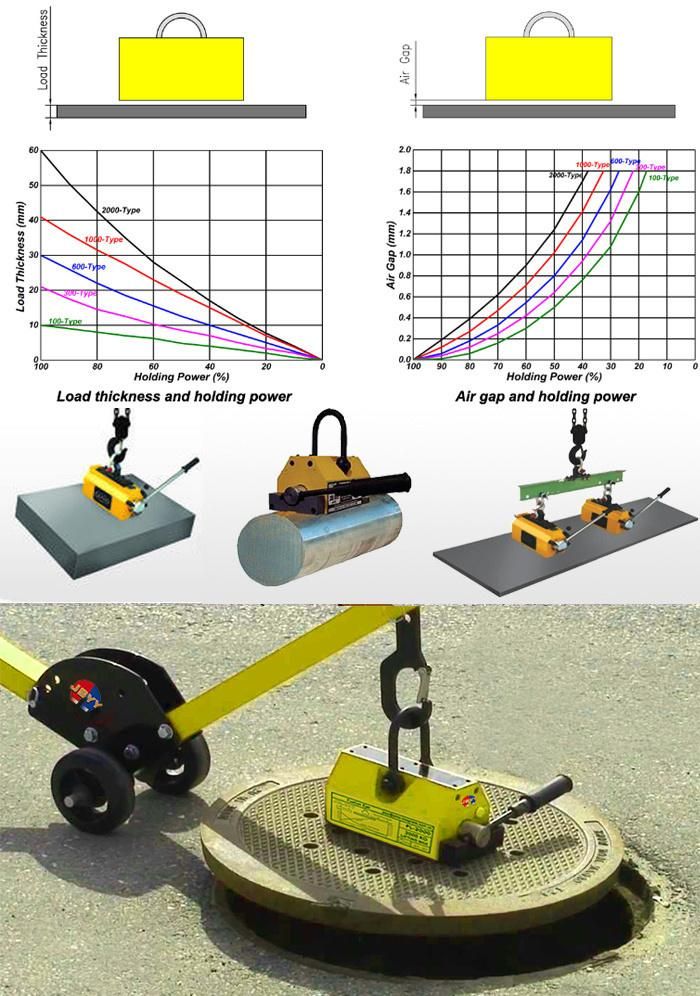

For safety considerations,this permanent magnetic lifting device has a safety factor of 3.5,indicating that its lifting capacity is 1/3.5 of the maximum holding power.

With "U" grooves on the under surface, the manual lifting magnet is capable of lifting both round steels and steel plats. So it is also referred to as a dual-purpose lifting chuck.

Since a permanent magnet is used, so electricity is required. As a result, all risks associated with power failure and wiring breakage are eliminated.

Our permanent magnetic chuck has an optimized magnetic circuit, thus reducing the remanence to almost zero.

Thank to the paint spraying treatment, our steel hoisting magnet has an aesthetic appearance that could bring extra joy to operators.

1000kg 2 Ton Pl Permanent Magnetic Lifter/Lifting Magnets for Lifting Steel Plate
Features

1.Supply to USA,Europe,and Austrilia
2.Matrial:Rare earth magnet, carbon steel
3.Professiona permanent magnetic lifter supplier
4.Safety rate: 2.5, 3 & 3.5 times



1000kg 2 Ton Pl Permanent Magnetic Lifter/Lifting Magnets for Lifting Steel Plate

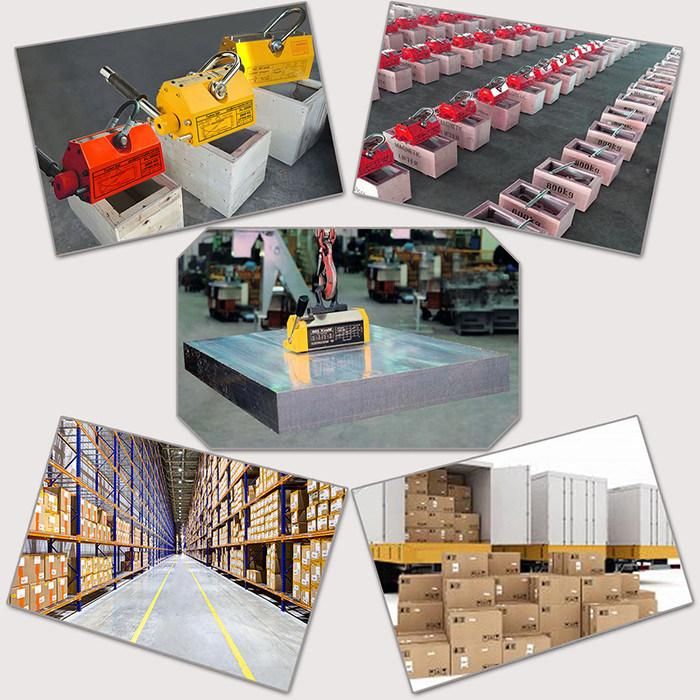

Packing & Shipping

1.Packing:Export packing

2.Shipping time: 30 days after receive the deposit



Pls kindly feel free to contact with us if you have any enquiries.

 Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

Credit first

1000kg 2 Ton Pl Permanent Magnetic Lifter/Lifting Magnets for Lifting Steel Plate

FAQ

1.  What is the MOQ of your machine?

 A: Our  MOQ is 1 set



2. How long is the machine warranty period?

A: the product warranty period is 18 months



In order to give you the responsible quotation, pls kindly inform us the following details:

1. What kind of material you are going to deal with?

2.What's the size of the materials?

3. What's the producing capacity you are going to achieve?



 Most suitable machine would be recomended to you according to your informations.
