• Model NO.：deyuan
• Running Mode：Stationary
• Standard：National Standards
• Drive：Hydraulic
• Configuration：Horizontal Arrangement
• Rope Drum：Steel Wire Rope
• Rate Pull (1st Layer)：130 Tonnes
• Clutch：Hydrulic Operated
• Transport Package：Wooden Case
• Specification：CCS. CE. BV. EC
• Trademark：DEYUAN MARINE
• Origin：China
• Production Capacity：50set,Month

Basic Info.

Model NO. deyuan Running Mode Stationary Standard National Standards Drive Hydraulic Configuration Horizontal Arrangement Rope Drum Steel Wire Rope Rate Pull (1st Layer) 130 Tonnes Clutch Hydrulic Operated Transport Package Wooden Case Specification CCS. CE. BV. EC Trademark DEYUAN MARINE Origin China Production Capacity 50set/Month

Product Description

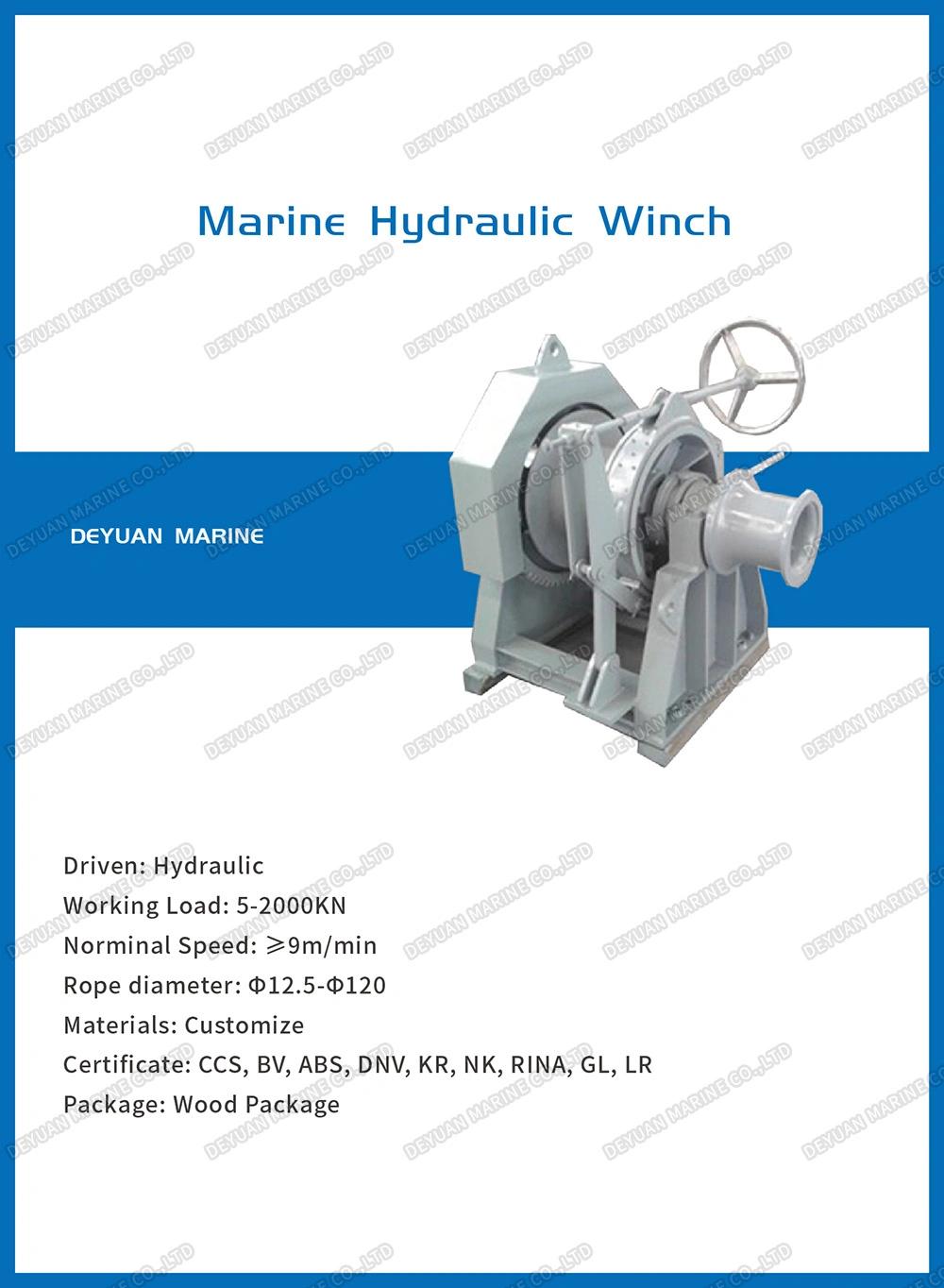

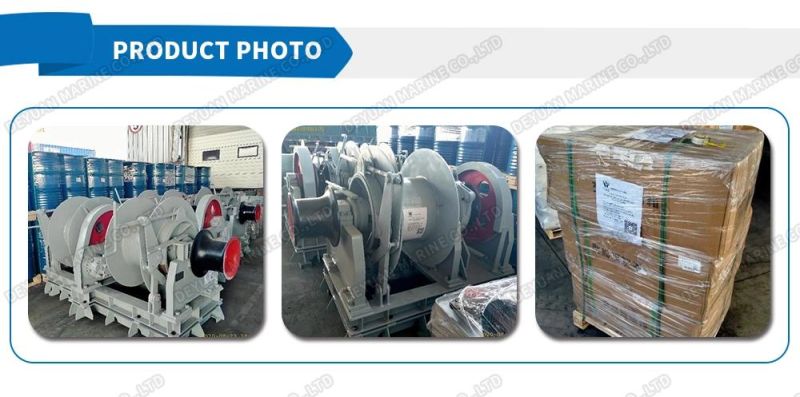

Marine hydraulic Multi drum mooring winch for boat

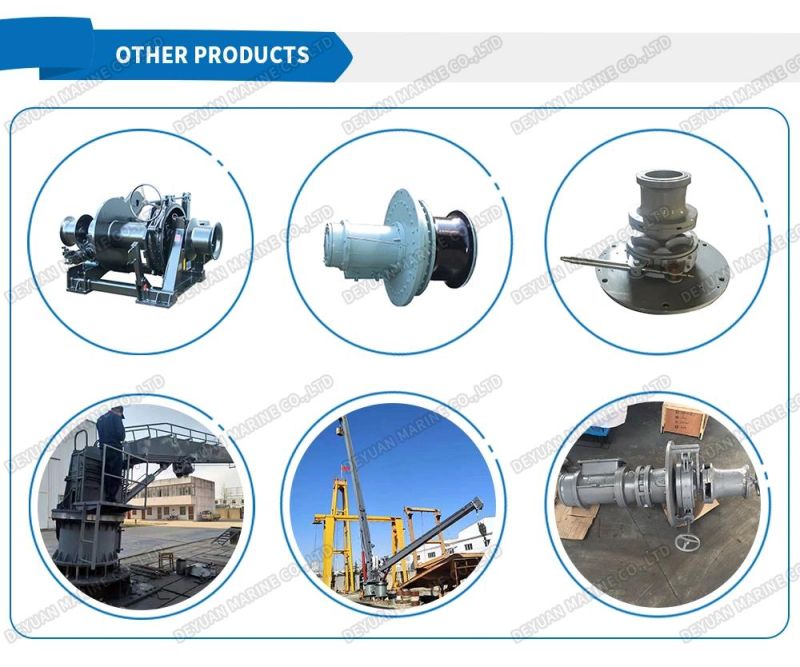

China Deyuan Marine Fitting Co., Ltd is a professional supplier of marine winches, we can offer mooring winches, anchor winches, accommodation ladder winches, rope ladder winches, electric rescue boat winches, pneumatid rope ladder winch and other anchor windlass, capstan, hydraulic steering gear. Pls contact us for more detials.

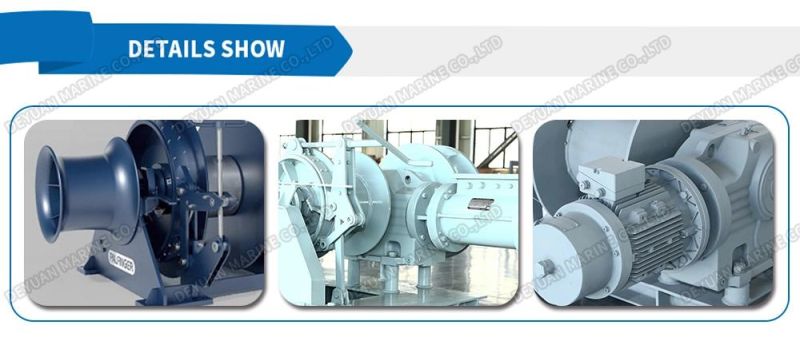

Mooring Winch Features:
1) Drive: Hydraulic
2) Configuration: Horizontal arrangement
3) Rope drum: Steel wire rope
4) Rope speed: Complying with ISO requirements
5) Rate pull (1st layer): 130 Tonnes
5) Clutch: Hydrulic operated
6) Brake: Hydraulic operated band failsafe brake
7) Brake Holding: 1st layer static up to 200Tonnes or complying with ISO/ Classification Society requirement
8) Control: Local/ remote control


name	Rated pull (kn)	Rated speed	Drum capacity(m)	Motor power(kw)
20KN	20	≥12	Φ15*150	11
40KN	40	≥15	Φ17.5*150	22
50KN	50	≥15	Φ20.5*180	30
75KN	75	≥15	Φ26*200	45
100KN	100	≥112	Φ30*200	45
160KN	160	≥12	Φ30*250	75
200KN	200	≥9.6	Φ41*250	75
250KN	250	≥9.6	Φ44.5*250	90
315KN	315	≥7.8	Φ52*250	90
400KN	400	≥7.8	Φ56*250	110
450KN	450	≥7.8	Φ56*250	132
500KN	500	≥7.8	Φ56*250	132
560KN	560	≥6	Φ56*250	132
600KN	600	≥6	Φ56*250	132
650KN	650	≥6	Φ56*250






Quality assurance and service
1. Complete and strict management, production and inspection procedures are in place to control quality and avoid errors in details
2. Design and production capability
3. Strict inspection, including incoming material inspection, packaging, etc.
4. Advanced factory equipment is guaranteed
5. Reply to design or effective solutions provided by our engineers or technical support within 24 hours during the working day.
6. Can provide professional customized services according to customer requirements
7. Timely delivery, because we have strict production planning and professional tracking process
8. Affordable price and professional service

If you are interested in our products or have any questions, please feel free to contact us for more details.
Deyuan Marine has been waiting for your contact.
