Mwr Manual Wheelchair Ramp From China for City Bus with Capacity 350kg
Changzhou Xinder-Tech Electronics Co., Ltd.- Application：Bus
- Lift Mechanism：Lift Chain
- Carrying Capacity：350kg
- Moves：Stationary
- Driven Type：DC
- Running Mode：Stationary
Base Info
- Model NO.：MWR-V1
- Loading Capacity：350kg
- Own Weight：45kg
- Main Material：Aluminum and Steel
- Transport Package：Carton Case for 1 Pcas; Wooden Case for Server PCS
- Specification：45KG
- Trademark：Xinder
- Origin：China
- HS Code：87089999
- Production Capacity：10000sets, Y
Description
Basic Info.
Model NO. MWR-V1 Loading Capacity 350kg Own Weight 45kg Main Material Aluminum and Steel Transport Package Carton Case for 1 Pcas; Wooden Case for Server PCS Specification 45KG Trademark Xinder Origin China HS Code 87089999 Production Capacity 10000sets/ YProduct Description
Introdustions:

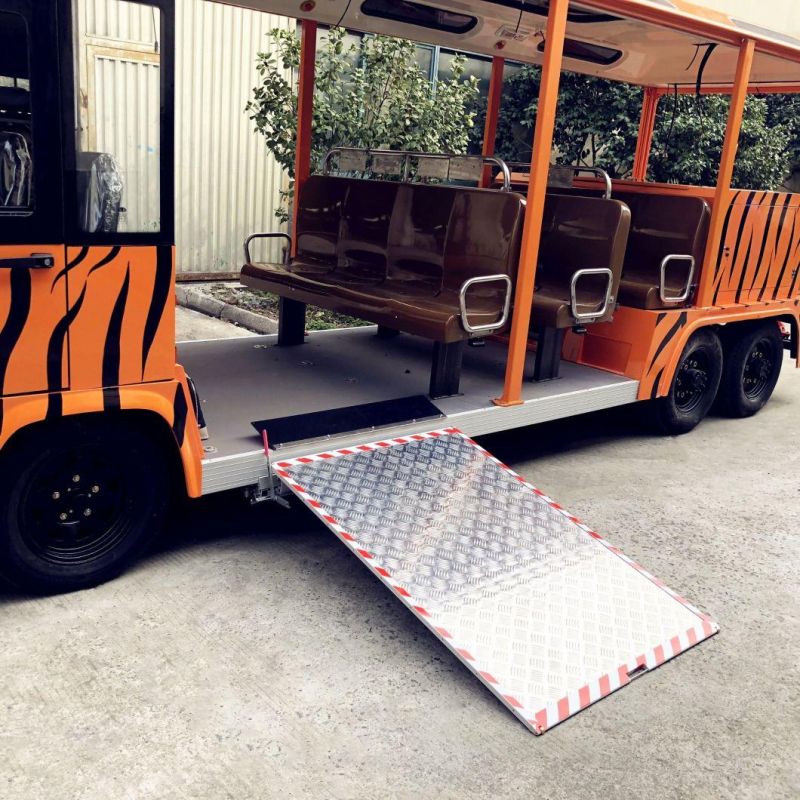

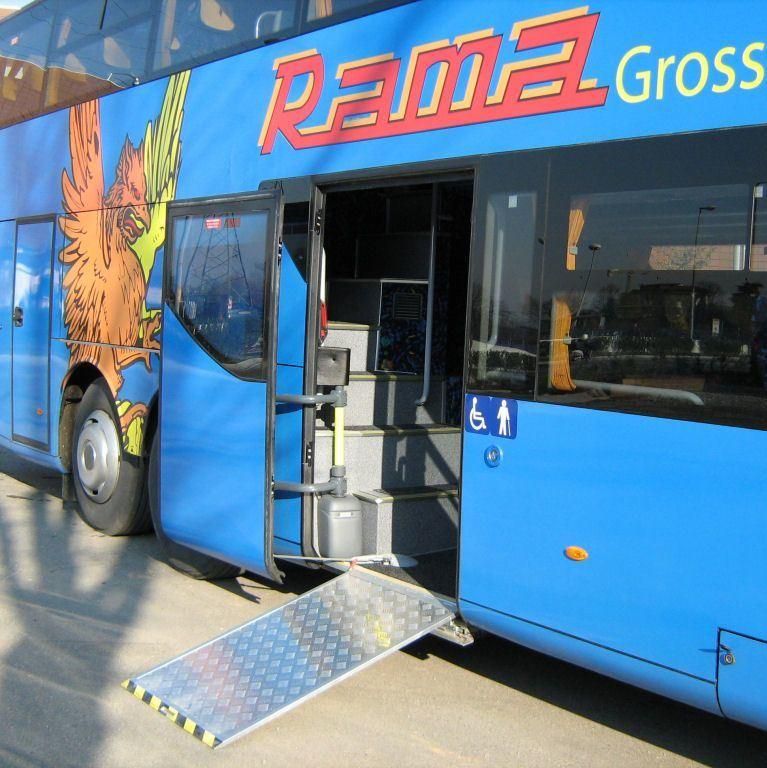

MWR manual wheelchair ramp can be applied for low-floor city bus, and it is installed under the chassis of side door.
It can help a person to get on bus easily and comfortably while seated in a wheelchair.

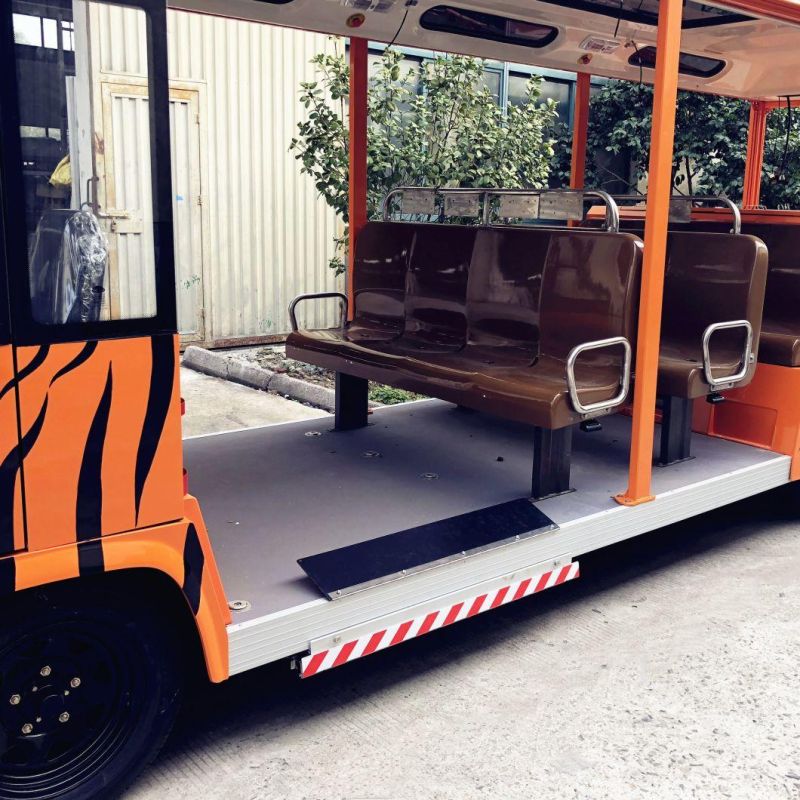

It doesn't obstruct view, access and emergency exit.
Main material is aluminum, which is light and with high corrosion resistance.
This ramp has got patents.
Advantages:
Doesn't obstruct view, access and emergency exit when not in use;
anti-skip platform;
Main material is aluminum, which is light and with high corrosion resistance;

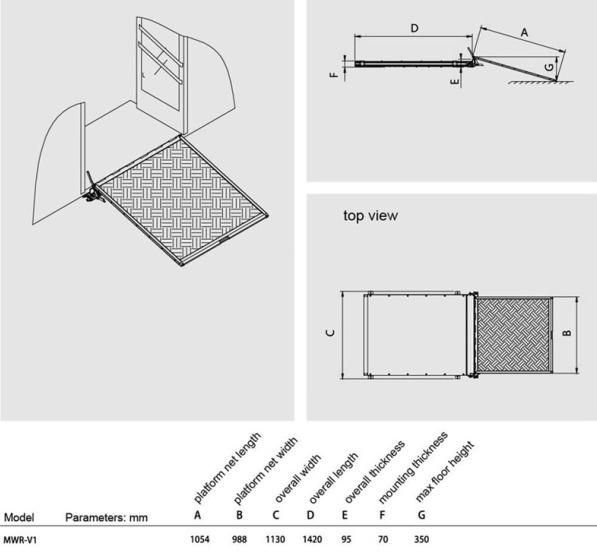

Technical Specifications:
Max Loading Capacity: 350 Kg
Eliminate threshold drop: 60mm
