• Model NO.：DSL-TW3200
• Tonnage：3.2ton
• Reel Number：1
• Running Mode：Moving
• Feature：Insulating
• Certification：None
• Standard：National Standards
• Product Name：3.2ton*20m Manual Tiffor Winch,Cable Pulling Machi
• Capacity：3.2ton
• MOQ：5sets
• OEM：Yes
• Delivery Time：7-30days
• Wire Rope Diameter：16mm
• Max Load：4000kg
• Transport Package：Polywood Case, Carton
• Specification：3.2ton
• Trademark：Dele
• Origin：Made in Hangzhou
• HS Code：8425399000
• Production Capacity：100000,Year

Basic Info.

Model NO. DSL-TW3200 Tonnage 3.2ton Reel Number 1 Running Mode Moving Feature Insulating Certification None Standard National Standards Product Name 3.2ton*20m Manual Tiffor Winch/Cable Pulling Machi Capacity 3.2ton MOQ 5sets OEM Yes Delivery Time 7-30days Wire Rope Diameter 16mm Max Load 4000kg Transport Package Polywood Case, Carton Specification 3.2ton Trademark Dele Origin Made in Hangzhou HS Code 8425399000 Production Capacity 100000/Year

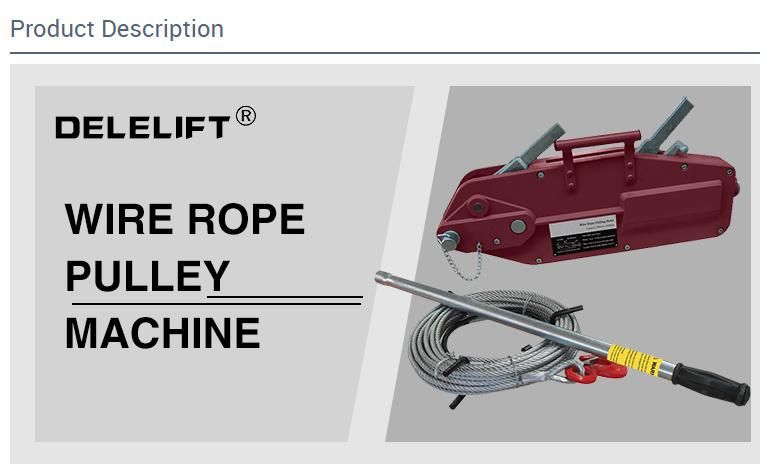

Product Description

WIRE ROPE PULLEY MACHINEWire rope pulling hoist,newly produced in our works, it is a kind of hoist of new style and with high efficiency, safe and durablein service. Ithas three main promient capacities:lifting, pulling and tensioning. Compared with other old chain-type pulling hist,it is more widely used and more suitable in working.According to the length of the suitable rope, it can be used for linear andunlinear lifting, pulling and tensioning. With special attachments, such as fixed or movable pully blocks, not only can it changthe operating position and move the load conviently, but also the capacity of the machine can be multiplied. To heavy duty,several machines can be used in parallel.Scope of applicationsThe macghines are widely used in the following:Infactories: To install or translocate apparatusIn mines: Tostructure or recover pit props.On construction sites: To work on the walls oh high building in a floating crane with out anyscaffoldings.In railway building: To adjust or remove rails, to dig tunnels or culverts.In building bridges: To lay bridge framesor maintain bridge piers.Inirriqation construction: To install or erect towers,or to tension power cables Intransportation: Toload or unload heavy bulky goods,to be out of danger for vehicles in the filelds,to remove obstacles from thefarm machinery ,andto save living stocks in special condition.Inforestry: In falling trees,use the machine to pull down the trees.In militaryengineering: To translocate the cannons to the shade, to build the temporary simple suspension briges or floating bridgesor toinstall other military engineering projects.For civilian purpose: To lift or lower any house-hold articles in high buildings or toclean the old civilian housesIn city construction: To lay water pipes, to install light apparatus, or to erect electric poles,etc. Along with the increase of the knowledge of the features and principles of our product, you will operate it in widerapplications.
