• Model NO.：HE500, HE1000, HE1500, HE2000
• Feature：Lifting
• Certification：GS, CE
• Material：Steel
• Transport Package：1PC,Wooden Case
• Specification：CE
• Trademark：NU-LIFT
• Origin：Jiangsu, China(Mainland)
• HS Code：8427900000
• Production Capacity：3000PCS, Month

Basic Info.

Model NO. HE500, HE1000, HE1500, HE2000 Feature Lifting Certification GS, CE Material Steel Transport Package 1PC/Wooden Case Specification CE Trademark NU-LIFT Origin Jiangsu, China(Mainland) HS Code 8427900000 Production Capacity 3000PCS/ Month

Product Description

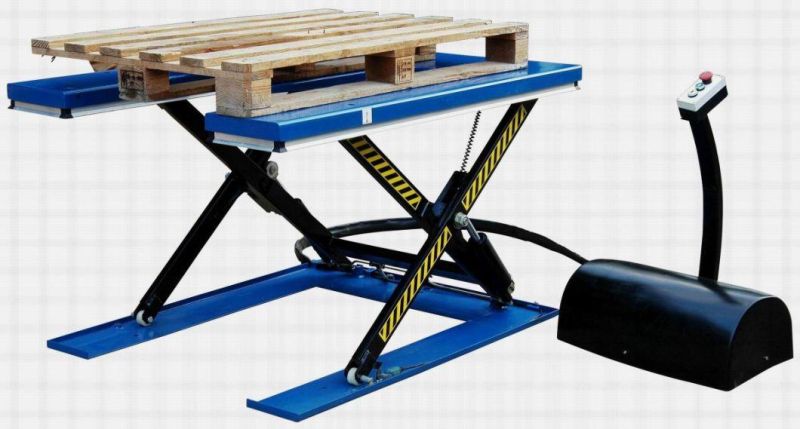

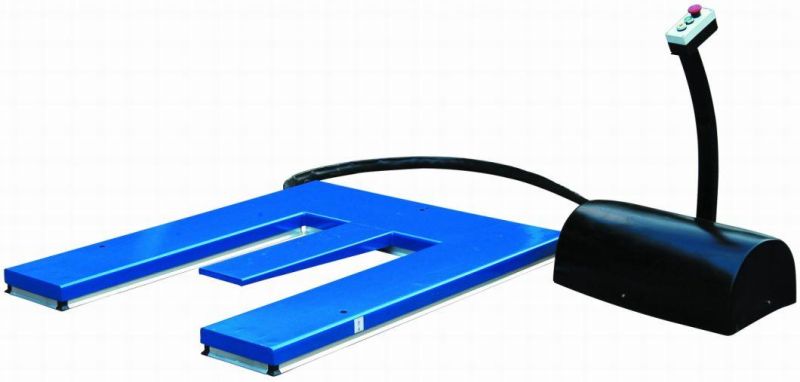

'E' Shaped Top Platform
Specially for handling pallets, no need for a pit or load ramps.
They are manufactured to all European safety standards including EN1570: 1990.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance.
Oiless bushings on pivot points.
Quick assembly joint for oil hose.

Model	HE500	HE1000	HE1500	HE2000
Capacity (kg)	500	1000	1500	2000
Max. height H(mm)	885	885	885	820
Collapsed height h(mm)	85	85	85	100
Platform L×W(mm)	1400×1200	1400×1200	1500×1300	1500x1300
Lifting Time (second)	25~35	25~35	30~40	30~40
Power Pack (KW)	380V/50Hz, AC0.75KW	380V/50Hz, AC0.75KW	380V/50Hz, AC1.5KW	380V/50Hz, AC2.2KW
Net Weight (kg)	207	280	380	500
