• Model NO.：JK
• Tonnage：5kn~100kn
• Reel Number：1
• Running Mode：Stationary
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Standard：Nonstandard

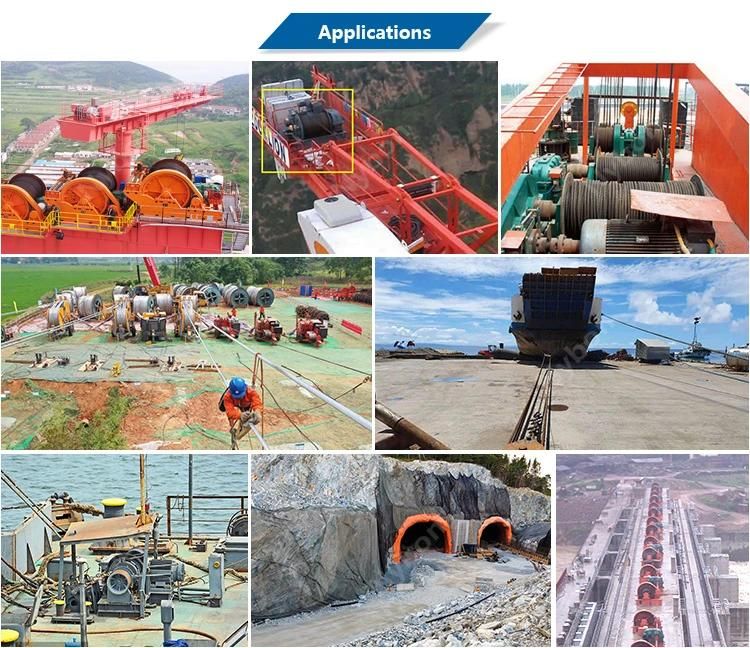

• Application：Cranes, Construction Site, Boat,Vessel, Shipyard, etc
• Motor Type：Yzr , Yzp
• Voltage：3AC 220~480V 50,60Hz
• Color：Customer Requirement
• Rope Capacity：Customized
• Package：Wood Boxes
• Transport Package：Wooden Package & Container
• Specification：1900*1620*985mm
• Trademark：NYBON
• Origin：Henan Province, China
• HS Code：842531900
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. JK Tonnage 5kn~100kn Reel Number 1 Running Mode Stationary Feature Antiseptic Certification CE, ISO 9001 Standard Nonstandard Application Cranes, Construction Site, Boat/Vessel, Shipyard, etc Motor Type Yzr / Yzp Voltage 3AC 220~480V 50/60Hz Color Customer Requirement Rope Capacity Customized Package Wood Boxes Transport Package Wooden Package & Container Specification 1900*1620*985mm Trademark NYBON Origin Henan Province, China HS Code 842531900 Production Capacity 100 Sets Per Month

Product Description

JK High Speed Electric Wire Rope Winch 2ton 3ton 5ton 10ton with Remote ControlJK winch is mainly used for hoisting, pulling and unloading, towing heavy objects, such as various large and medium-sized concrete, steel structures and mechanical equipment installation and disassembly. The winch can be lifted vertically, horizontally or tilted. It can be used alone or as a component in machines such as lifting, road construction and mine lifting. Mainly used in construction, mining area lifting, small-scale equipment installation and material upgrading of civil construction and construction of the factory.
Features:
1. Easy to operate and easy to move
2. Large amount of rope
3. Wire ropes are arranged in order
4. Safe and reliable lifting
5. Speed is fast
6. High efficiency and labor cost savings


Advantage:
1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.
2. The company has professional engineers. When you have only ideas, you can develop a complete set of system products for your reference and choice.
3. The company has professional business staff to answer your questions online 24 hours a day.
4. The after-sales service system is perfect, and solve problems for you in time.
5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.

Basic Parameters	Rated Load	Rope Speed	Capacity of Rope	Rope Diameter	Motor Power	Dimension	Total Weight
Model	KN	m/min	m	mm	KW	mm	kg
JK0.5	5	22	190	7.7	3	620×701×417	200
JK1	10	22	100	9.3	4	620×701×417	300
JK1.6	16	24	150	12.5	5.5	945×996×570	500
JK2	20	24	150	13	7.5	945×996×570	550
JK3.2	32	25	290	15.5	15	1325×1335×840	1011
JK3.2B	32	30	250	15.5	22	1900×1738×985	1500
JK5	50	30	300	21.5	30	1900×1620×985	2050
JK5B	50	25	210	21.5	22	2250×2500×1300	2264
JK8	80	25	160	26	45	1533×1985×1045	3000
JK10	100	30	300	30	55	2250×2500×1300	5100

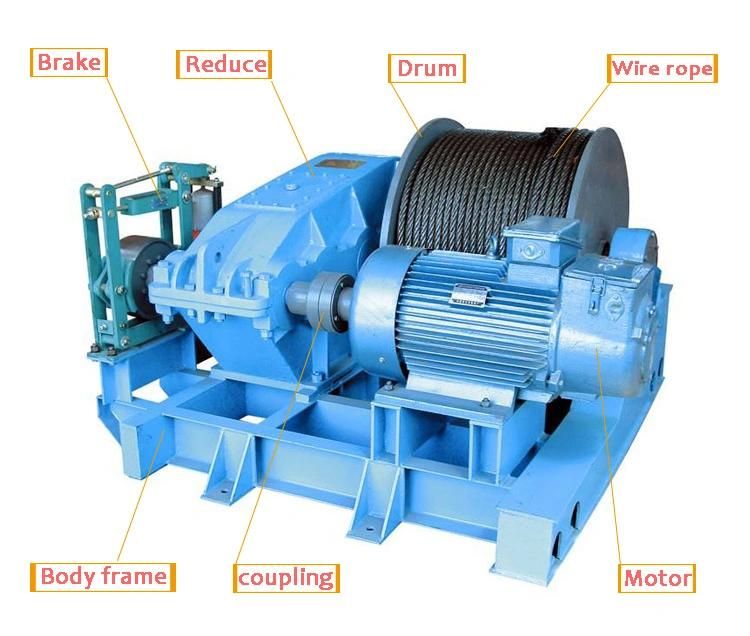

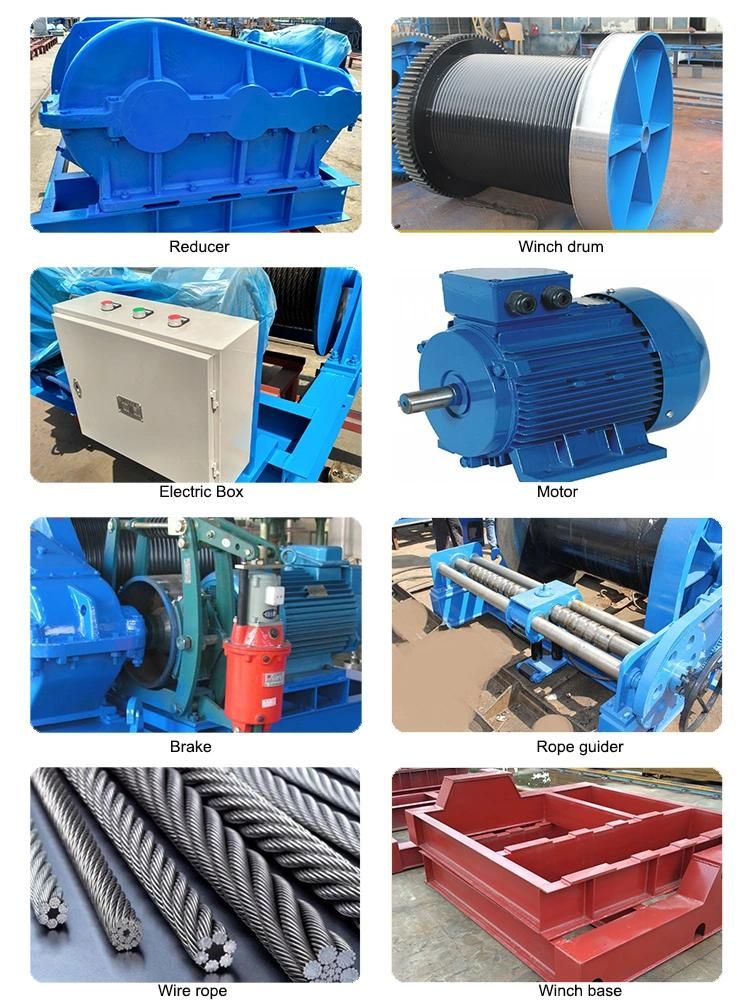

Conponents of High Speed JK electric Winch price

1. Q: What's your MOQ?

  A: 1 Set;

2. Q: What's your package?

  A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

  A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and
actual period;

4. Q: What's your warranty period?

  A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

   A: Yes; We have;

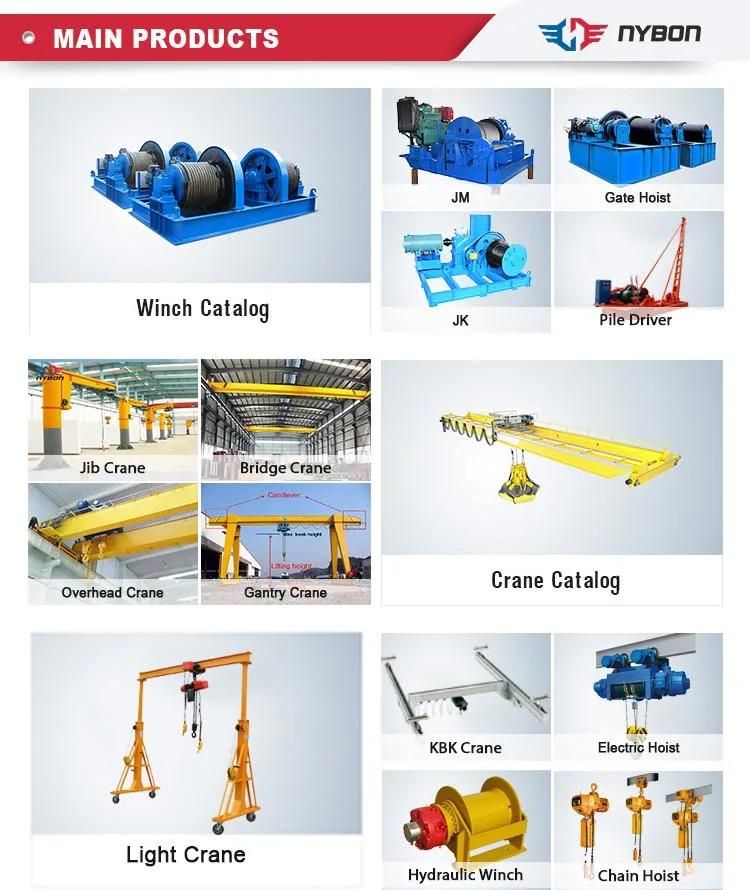

6. Q: What kinds of products do you have?

    A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist;
Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?

    A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is
any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

    A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook,
lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

    A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
