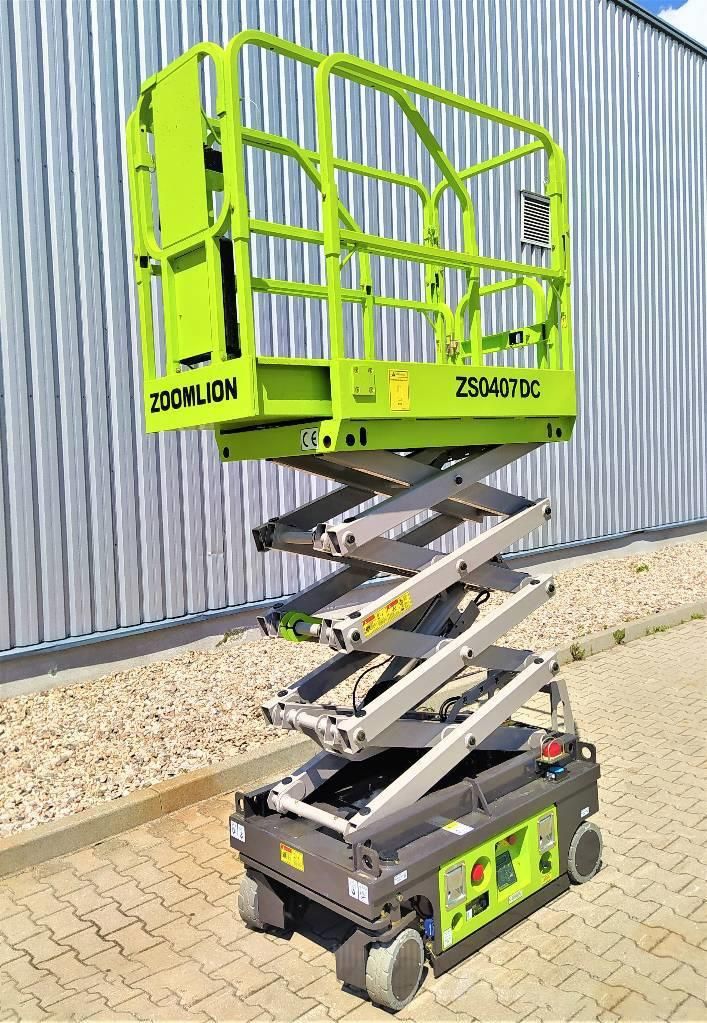

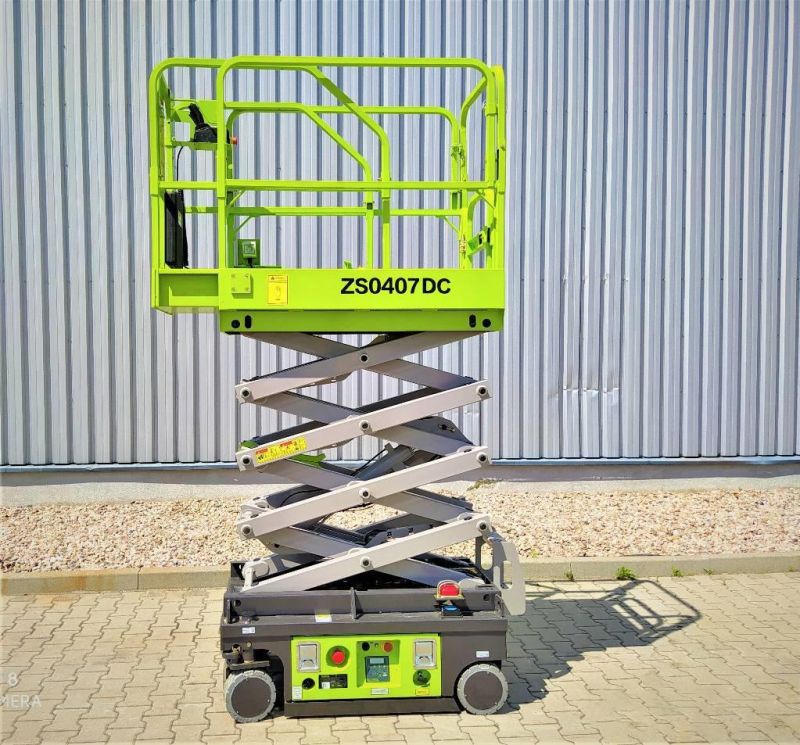

• Model NO.：ZS0407DC
• Driven Type：AC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Work Height：6.5m
• Platform Height-Elevated：4.5m
• Platform Height-Stowed：0.95m
• Platform Length：1.29m
• Platform Width：0.7m
• Wheelbase：1.05m
• Platform Capacity：240kg
• Max. Number of Workers：2
• Drive Speed (Stowed)：4km,H
• Drive Speed (Raised)：0.8km,H
• Lifting Motor：24V,1.2kw
• up/Down Time：23,25s
• Gradeability：25%
• Tire：230mmx80mm
• Battery Power：2X12V,85ah
• Transport Package：Nude Package, Suitable for Shipment
• Specification：1.44x0.76x2.05m
• Trademark：Acntruck
• Origin：China
• HS Code：8429510000
• Production Capacity：100 Pieces,Month

ModelZS0407DCZS0407DC-LiSizeWork Height6.5m6.5mA - Platform Height-Elevated4.5m4.5mB - Platform Height-Stowed0.95m0.95mC - Platform Length1.29m1.29mD - Platform Width0.7m0.7mPlatform Extension0.6m0.6mE - Overall Height (Rails Up)2.05m2.05mOverall Height (Rails Down)1.7m1.7mF - Overall Length1.44m1.44mG - Overall   Width0.76m0.76mH - Wheelbase1.05m1.05mI - Ground Clearance (Stowed)0.06m0.06mJ - Ground Clearance (Raised)0.017m0.017mPerformancePlatform Capacity240kg240kgCapacity on Deck Extension100kg100kgMax. Number of Workers22Drive Speed (Stowed)4km/h4km/hDrive Speed (Raised)0.8km/h0.8km/hTurning Radius (Inside)0.4m0.4mTurning Radius (Outside)1.6m1.6mLifting Motor24V/1.2KW24V/1.2KWUp/Down Time23/25s23/25sGradeability25%25%Max. Working Slope (Lateral/Vertical)1.5°/3°1.5°/3°ControlProportional   ControlProportional   ControlDriveRear   WheelsRear   WheelsBrakeRear   WheelsRear   WheelsTire∅230mmX80mm∅230mmX80mmPowerBattery2×12V/85Ah102Ah   Li-ion BatteryCharger24V/15A24V/15AWeightGross895kg895kgFeaturesStandard   FeaturesGPS   positioning and tracking systemAutobrake systemDrivable at full heightProportional   controlsEmergency descent systemHour meterAll   motion alarmEmergency stop buttonExtension deck (unidirectional)Fold-down   handrailsOn-board diagnosticCharging protection systemFlashing   amber beaconOver tilt protective systemScissor maintenance propSelf-closing   entry gateActive pothole protection systemForklift pocketsAWM Remote Monitoring and Rental Management System *Accessories   & OptionsPlatform work lightsLoad sensing systemAC power to platformAirline to platform
