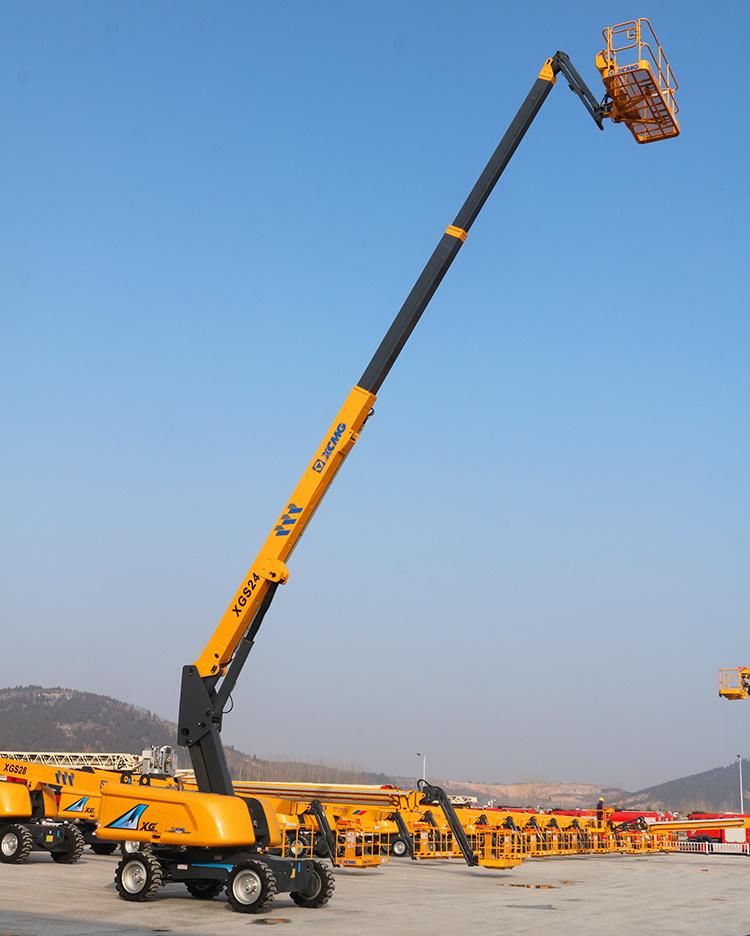

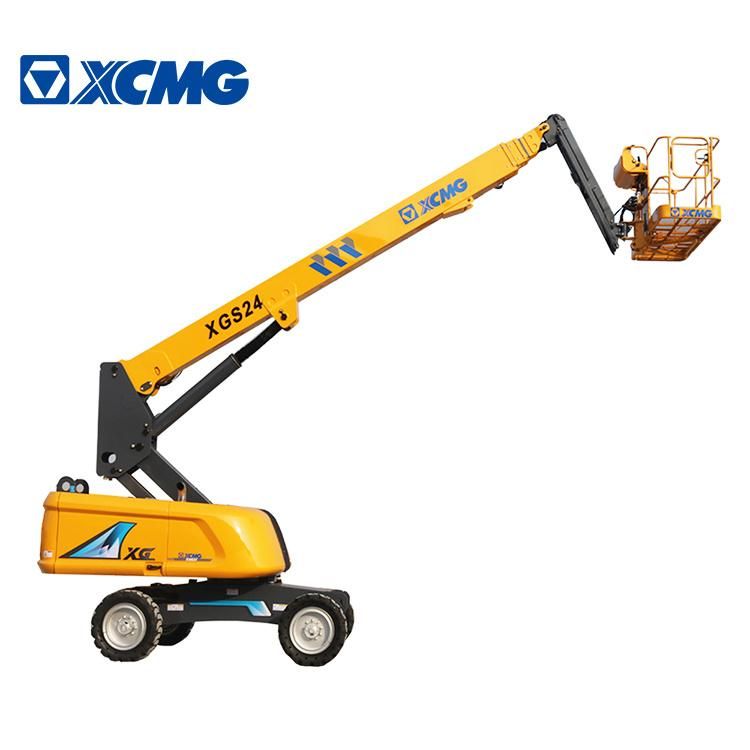

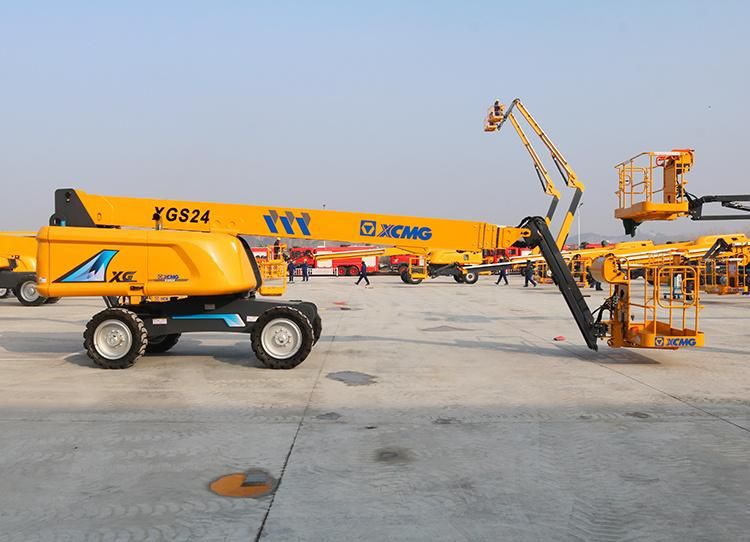

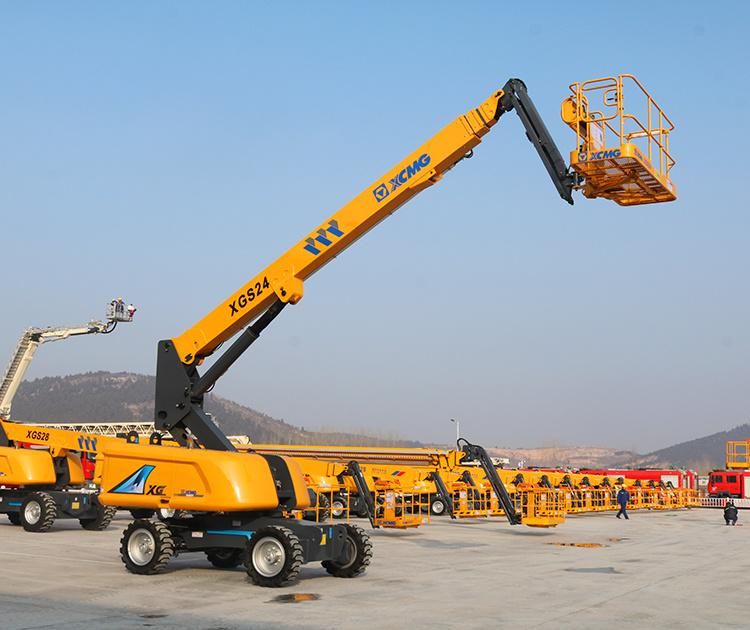

• Model NO.：XGS24
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Engine Model：Perkins
• Platform Size：2400*900mm
• Max. Load Capacity：230 (Unrestricted),340 (Restricted)
• Transport Package：Comply with Export Packaging Requirements
• Specification：10150*2490*2800mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• Production Capacity：1000,Year

ItemUnitParameterOverall length of complete machinemm10150Overall width of complete machinemm2490Overall heightmm2800Wheelbasemm2500Max. working heightm24Max. platform heightm22Max. working rangem18.3Max. load capacitykg230 (unrestricted)/340 (restricted)Luffing range of boom°-5 ~ +75Slewing angle of turntable°360Max. tail swingmm1550Dimension of platformmm2400×900Slewing angle of platform°160Overall weightkg12500Max. traveling speedkm/h6Min. turning radiusm6Min. ground clearancemm230Max. gradeability%45Specification of tire-Solid tire 36×14-20/7.5 Or Foam tire 355/55D625Engine model-Perkins 404D-22TEngine rated powerkW/(r/min)43/(2600)











FAQ

1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
