• Model NO.：HKG6-2
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Rated Load：300kg
• Max Working Worker：2
• Max Platform Height：6000 mm
• Max Working Height：8000 mm
• Machine Length：1450 mm
• Machine Width：890 mm
• Machine Height：1980 mm
• Machine Size (Legs Opening )：2300*2650 mm
• Platform Size：1190*540 mm
• Mini Ground Clearance：80 mm
• up/Down Speed：0.06 M,S
• Motor Power：1.5 Kw
• Voltage：AC220V,50Hz
• Wheel Size：160 mm
• Weight：420 Kg
• Transport Package：by Sea, by Air
• Specification：Platform Height: 6-14m
• Trademark：Haulke
• Origin：China
• Production Capacity：1000000units,Year

Basic Info.

Model NO. HKG6-2 Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Rated Load 300kg Max Working Worker 2 Max Platform Height 6000 mm Max Working Height 8000 mm Machine Length 1450 mm Machine Width 890 mm Machine Height 1980 mm Machine Size (Legs Opening ) 2300*2650 mm Platform Size 1190*540 mm Mini Ground Clearance 80 mm up/Down Speed 0.06 M/S Motor Power 1.5 Kw Voltage AC220V/50Hz Wheel Size 160 mm Weight 420 Kg Transport Package by Sea/ by Air Specification Platform Height: 6-14m Trademark Haulke Origin China Production Capacity 1000000units/Year

Product Description

Product Description:





Specifictions:


Model		HKG6-2	HKG7-2	HKG8-2	HKG9-2	HKG10-2	HKG12-2	HKG14-2
Loading capacity	Kg	300	300	300	300	300	300	300
Max working worker	/	2	2	2	2	2	2	2
Max platfprm height	mm	6000	7000	8000	9000	10000	12000	14000
Max working height	mm	8000	9000	10000	11000	12000	14000	16000
Machine length	mm	1450	1450	1450	1555	1555	1555	1685
Machine width	mm	890	890	890	890	890	890	890
Machine height	mm	1980	1980	1980	1980	1980	1980	2350
Machine size (Legs opening )	mm	2300*2650	2300*2650	2300*2650	2450*2860	2450*2860	2790*3600	2670*2950
Platform size	mm	1190*540	1190*540	1190*540	1300*540	1300*540	1450*540	1450*540
Mini ground clearance	mm	80	80	80	80	80	80	80
Up/down speed	m/s	0.06	0.06	0.06	0.06	0.06	0.06	0.06
Motor power	kw	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Voltage	/	AC220v/50HZ	AC220v/50HZ	AC220v/50HZ	AC220v/50HZ	AC220v/50HZ	AC220v/50HZ	AC220v/50HZ
Wheel size	mm	160	160	160	160	160	160	160
Weight	Kg	420	480	562	640	630	688	820

Packaging & Shipping:

After Sales Service:

24-hours online consult service is available here. Once you have any questions, just contact us and our professional staff will reply very quickly.

Market information also will be provided. Since we are an experienced supplier of lift table. For seller, the market information would be very pleased to offer as long as you contact us and ask for it.

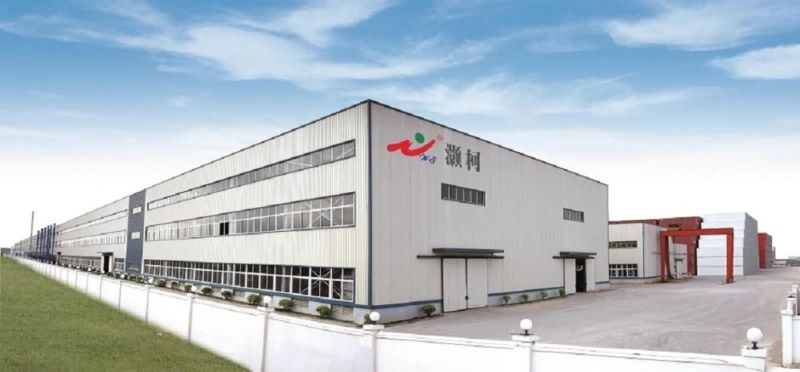

Company Profits:

Haoke is a research and development, production, sales and service in one of the professional manufacturer. Our products mainly include: aerial working platform, scissor type aerial working platform, electric lifting platform, fixed lifting platform,stacker series, lift table series, pallet truck series, forklift attachments series etc.

Our company's products have been certified by a lot of international quality certification, covering an area of 20000 square meters, the annual output has been grown to 30%. In order to better develop overseas market, we had established branch office in Russia, Japan, South Korea, Taiwan, Vietnam.

Haoke would continue to innovate and transform new technologies into products and services with international influence. With pioneering and enterprising spirit of "dare to be the first in the world", which will constantly improves its management methods to precipitate a profound enterprise.



FAQ:

1: How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

2: How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

3: Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement. When your
orders reach your local nearest Sea port or River port, the logistics company will inform you.

4: Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feed back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

5: Can I visit your company?

Of course, We always with great pleasure at your service. We have office in Shanghai, China. If you want to order our products and visit our company, please contact us to make an appointment.

Exhibition:
