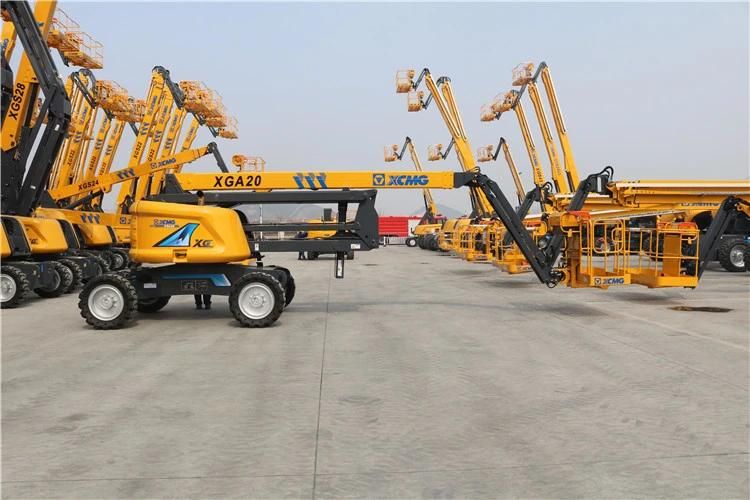

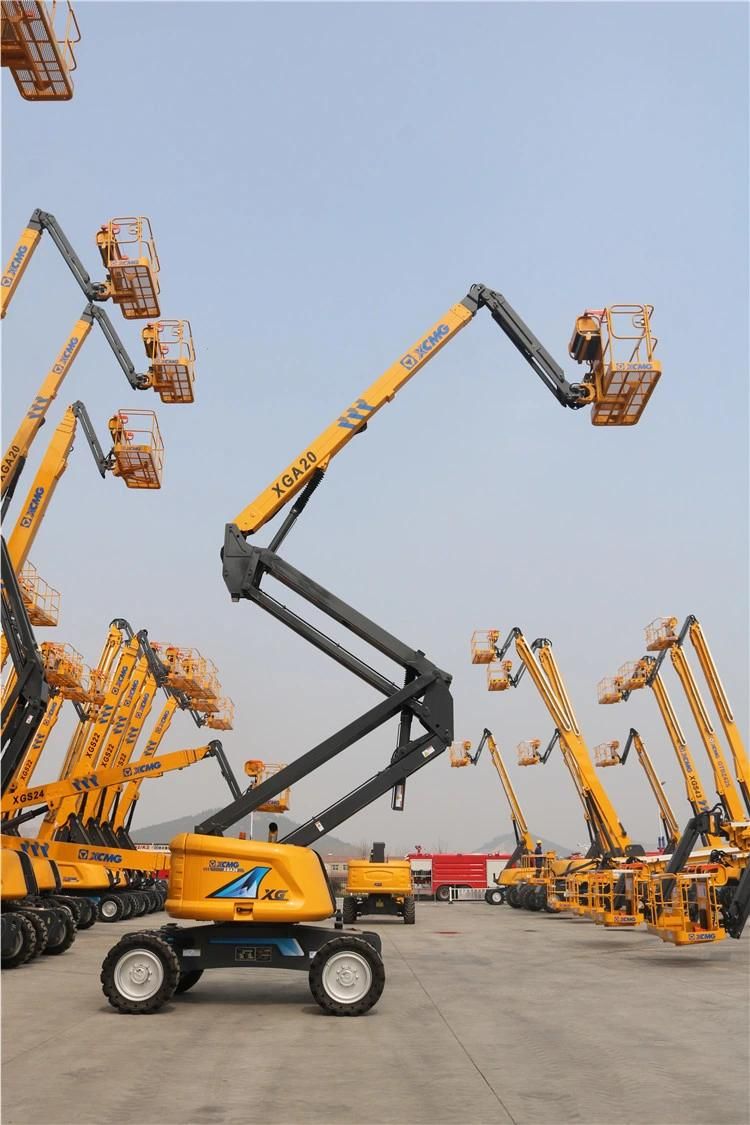

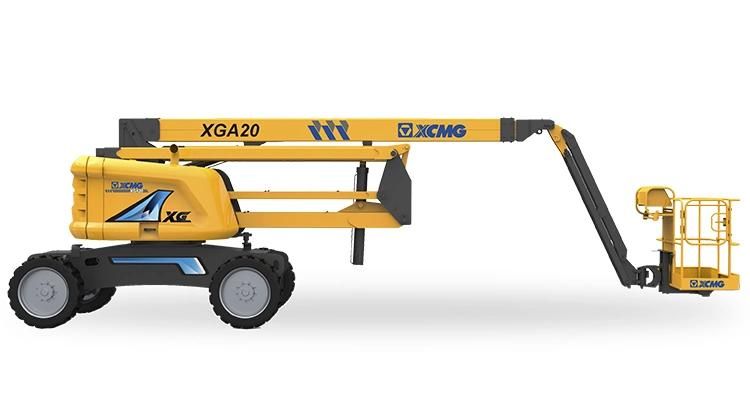

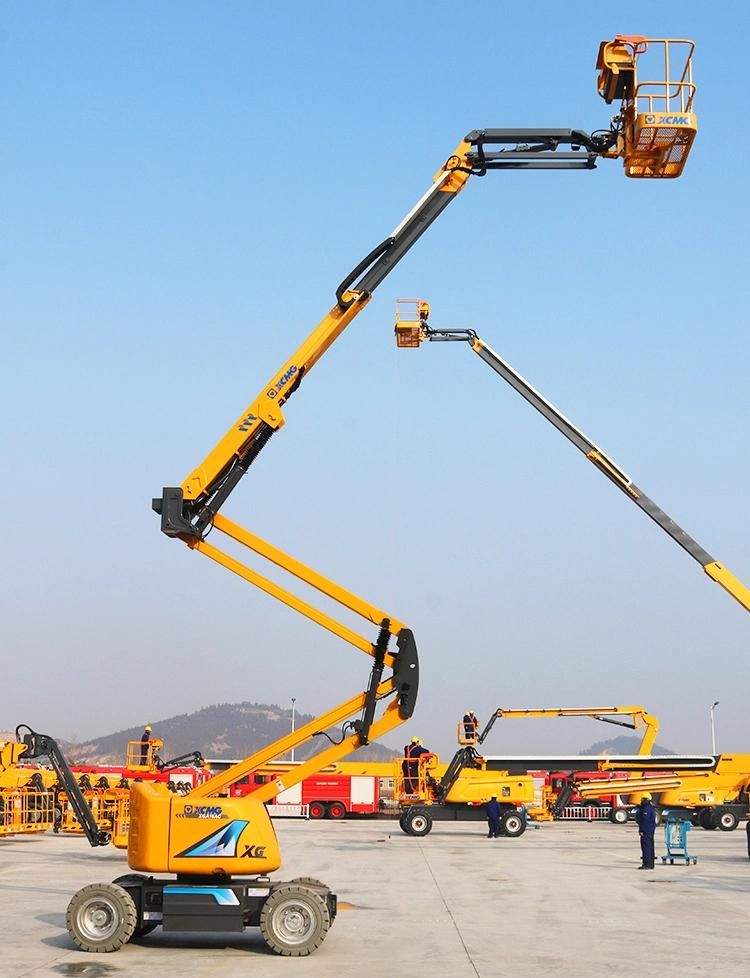

XCMG Official Xga20 20 Meter Hydraulic Articulated Mobile Boom Lift
Xuzhou Construction Machinery Group Co., Ltd.- After-sales Service：Overseas Service Center Available
- Warranty：1year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Articulated Lift
- Carrying Capacity：Weight Level
- Moves：Self-propelled
Base Info
- Model NO.：XGA20
- Driven Type：Hydraulic
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Max. Gradeability：45%
- Engine Model：Perkins
- Table Size：1830*760*1150mm
- Transport Package：Comply with Export Packaging Requirements
- Specification：9080*2490*2680mm
- Trademark：XCMG
- Origin：Xuzhou, Jiangsu, China
- Production Capacity：1000,Year
Description
Overview
Product Description
Product ParametersUnit Parameter Overall length of complete machine mm 9080 Overall width of complete machine mm 2490 Overall height mm 2680 Wheelbase mm 2500 Max. working height m 20.4 Max. platform height m 18.4 Max. working range m 11.9 Max. carrying weight kg 230 Scope of luffing of No.1 arm ° 0~+70 Scope of luffing of Boom No.2 ° 0~+75 Crank arm luffing range ° -65~70 Slewing angle of turntable ° 360 Max. Tail swing mm 0 Dimension of platform mm 1830×760×1150 Slewing angle of platform ° 160 Overall weight kg 10600 Max. traveling speed km/h 6 Min. turning radius m 6 Min. ground clearance mm 230 Max. gradeability % 45 Specification of tire 355/55D625 Engine model Perkins 404D-22 Engine rated power kW/(r/min) 38/(3000)
Company Profile
FAQ
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

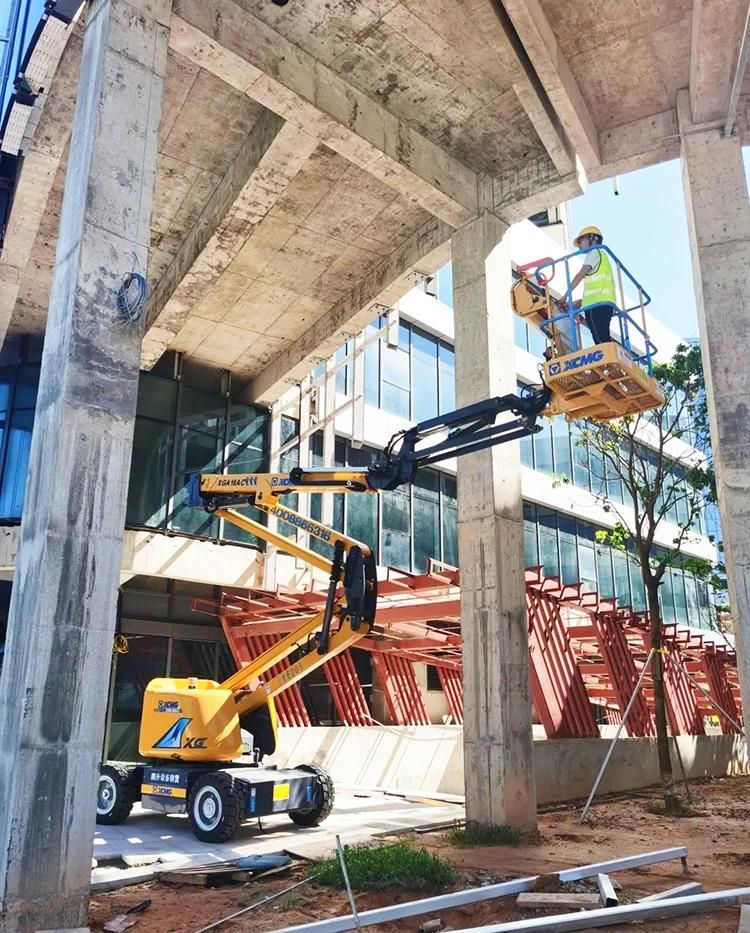

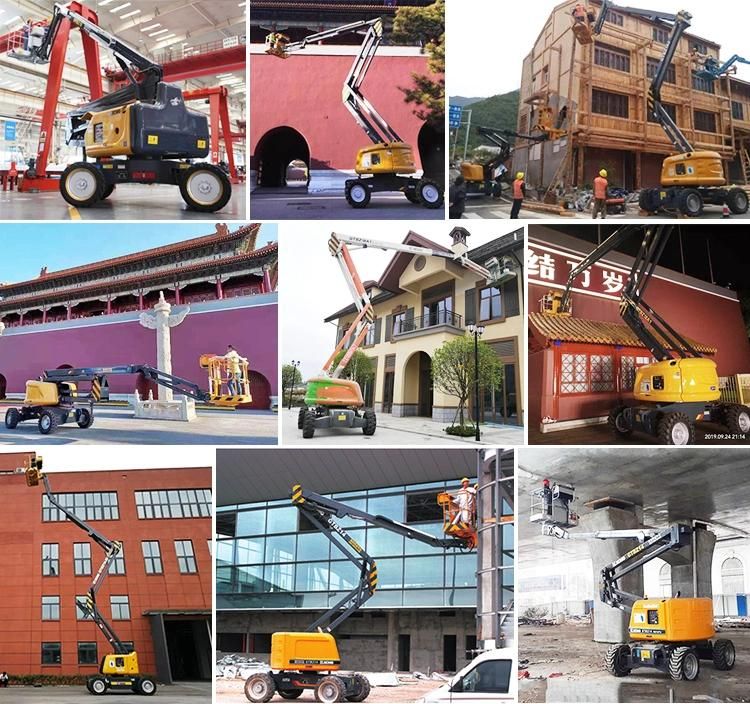

20m articulated mobile elevating work platform features compact composition, obstacle-crossing, precise control, powerful driving and easy operation. The machine is simple, efficient, safe and reliable, meeting demands of users from building construction, bridge and equipment maintenance, shipyard and petrochemical industry and users from rental service.
Product Parameters
Item
Company Profile
FAQ1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
