1ton 2ton Super Low Electric Lifting Platform Table

Jinan PLK Machinery Co., Ltd.
  • After-sales Service：Online Service, Free Express Accessories.
  • Warranty：12 Months
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Weight Level
  • Moves：Stationary

Base Info

  • Model NO.：HY
  • Driven Type：Hydraulic
  • Running Mode：Stationary
  • Feature：Explosion-Proof, Insulating
  • Certification：CE, RoHS, ISO 9001
  • Loading Capacity(Kg)：1000kg 1500kg 2000kg
  • Base Size (mm)：1325X1074 1325X734
  • Min.Platform Height (mm)：85 105
  • Max.Platform Height (mm：860 870
  • Lifting Time (S)：25 30 35
  • Power (V/Hz)：as Per Your Local Standard
  • Transport Package：Wooden Pallet and High Quality Paper Boxes with St
  • Specification：1450*985*100
  • Trademark：PLK LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：5000

Description

Basic Info.

Model NO. HY Driven Type Hydraulic Running Mode Stationary Feature Explosion-Proof, Insulating Certification CE, RoHS, ISO 9001 Loading Capacity(Kg) 1000kg 1500kg 2000kg Base Size (mm) 1325X1074 1325X734 Min.Platform Height (mm) 85 105 Max.Platform Height (mm 860 870 Lifting Time (S) 25 30 35 Power (V/Hz) as Per Your Local Standard Transport Package Wooden Pallet and High Quality Paper Boxes with St Specification 1450*985*100 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 5000

Product Description


1ton 2ton Super Low Electric Lifting Platform Table
 PLKLIFT Brands Low Profile Scissor Lift Table are one of the most Ideal equipment for loading and unloading goods.

Lowest platform height can make goods loading more convenient, peopled can put down the goods easily. And its load capacity are 1000kg, 1500kg and 2000kg.

It is widely used in the warehouse, small shop and other place, to help people lifting the wooden or plastic pallet, goods and material etc.

Data Sheet
ModelLoad Capacity(kg)Max. Platform Height(mm)Platform Size
(mm)		Self Height
(mm)		Net weight
(KG)
HY100110008601325x107485357
HY100210008601325x107485364
HY100310008601325x73485326
HY100410008601325x73485332
HY100510008601325x73485352
HY150115008701325x734105302
HY150215008701325x734105401
HY150315008701325x734105415
HY200120008701427x1114105419
HY200220008701427x734105405


This scissor lift table equipped with safety valve, to protect the safety both for goods and user.

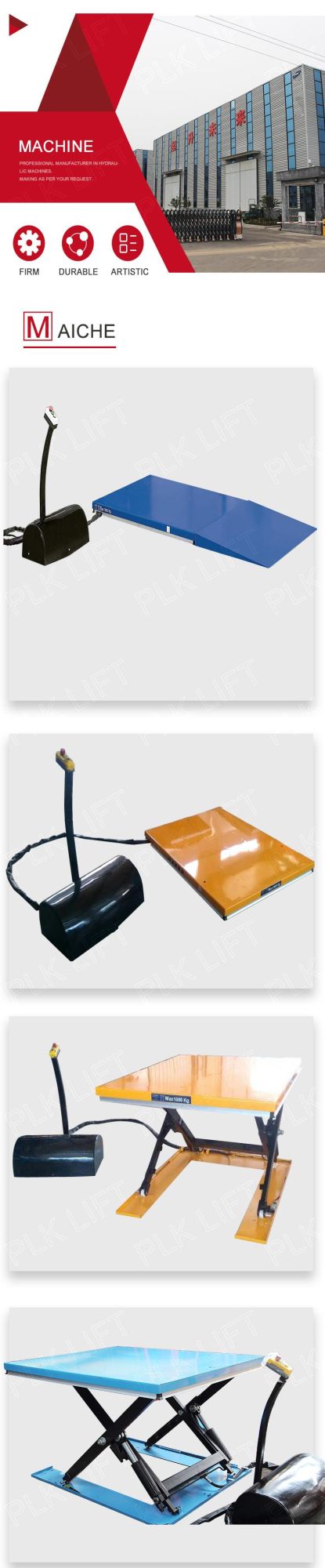

Product Show
1ton 2ton Super Low Electric Lifting Platform Table

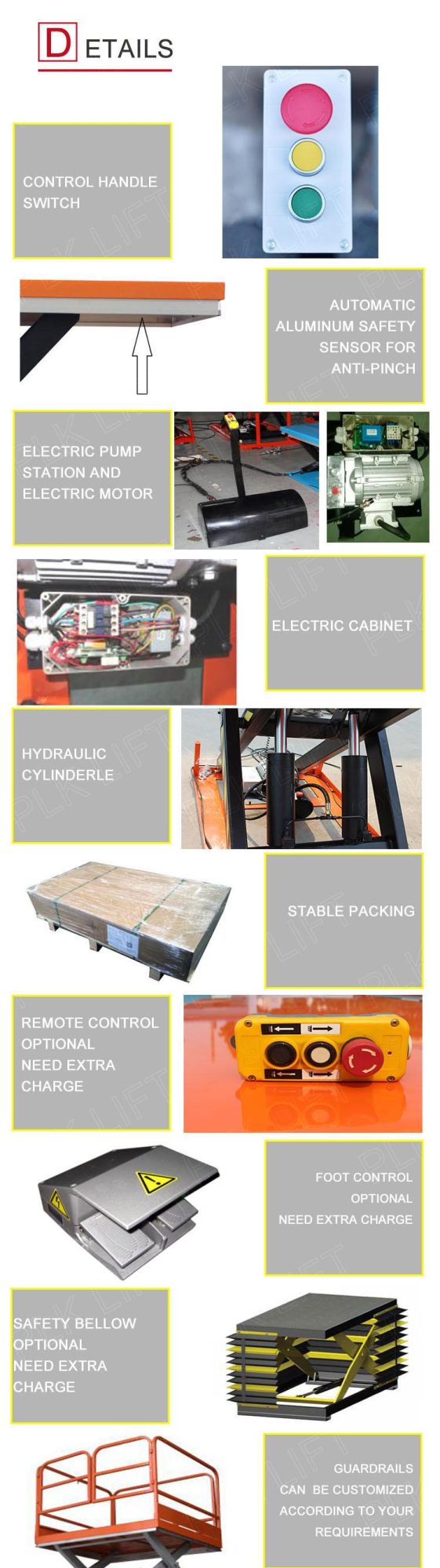

Details Show
1ton 2ton Super Low Electric Lifting Platform Table

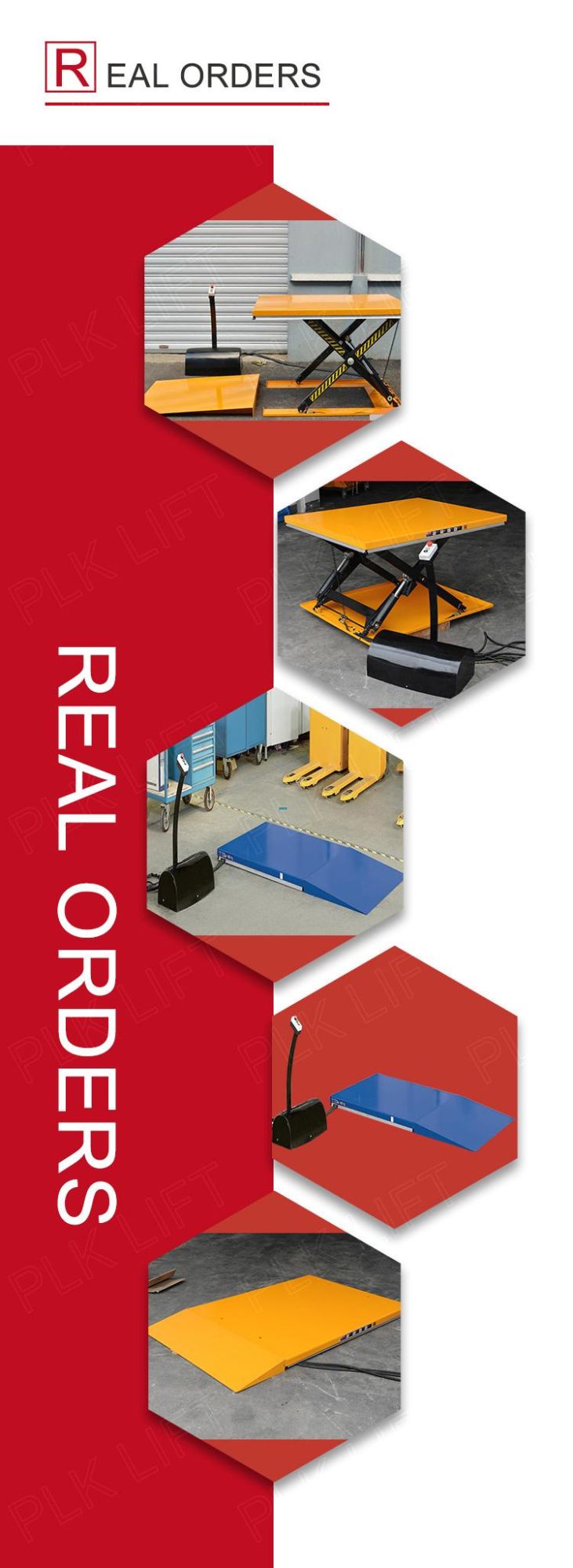

Bulk Order Show

1ton 2ton Super Low Electric Lifting Platform Table


Factory Show
1ton 2ton Super Low Electric Lifting Platform Table
