• Model NO.：EWH-JA
• Certification：CE, ISO9001:2000, GS, TUV
• Condition：New
• Color：Blue
• Rate Load：100, 200- 600, 990t
• Lifting Height：12, 6m as Standard, Others Also Available
• Net Weight：22- 32kg
• Voltage：220V,380V,460V,50,60Hz
• Work Duty：S3-20%-10min
• Current：2.0A
• Hook：High- Class Alloy Steel
• Safety Brake：Brake Features Automatic
• Protection Class：IP54
• Warranty：One Year
• Transport Package：Carton Packing or Wooden Pallet Packing
• Specification：CE GS and TUV
• Trademark：LTN or OEM
• Origin：Hangzhou China
• HS Code：84251100
• Production Capacity：5000 Sets, Month

Basic Info.

Model NO. EWH-JA Certification CE, ISO9001:2000, GS, TUV Condition New Color Blue Rate Load 100/ 200- 600/ 990t Lifting Height 12/ 6m as Standard, Others Also Available Net Weight 22- 32kg Voltage 220V,380V,460V,50/60Hz Work Duty S3-20%-10min Current 2.0A Hook High- Class Alloy Steel Safety Brake Brake Features Automatic Protection Class IP54 Warranty One Year Transport Package Carton Packing or Wooden Pallet Packing Specification CE GS and TUV Trademark LTN or OEM Origin Hangzhou China HS Code 84251100 Production Capacity 5000 Sets/ Month

Product Description

China Supply Quality Electric Hoist PA1000( EWH-JA)
Product Description

01- The emergency stop switch

02- Upper limit function

03- Thermal protection terminal

04- Protection class IP54

05- Insulation class B

06- Group of mechanisms M1

07- Work Duty:S3-20%-10min

08- Rated Volt: 220/230V~50Hz

09- Rated Current: 2.0A

10- Input Power: 500W~1980W

11- Lifting Weight: 100KG(Single-line), 200kg(Duble-line)

12- Lifting Height: 12m(Single-line), 6m(Double-line)

13- Lifting Speed:10m/min(Single-line), 5m/min(Double-line)

14- Cable Length:0.65m

15- Coutrol cable length:1.5m

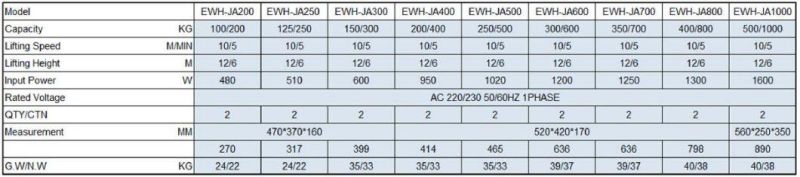

Specification Details
