• Model NO.：DF-3T
• Type：Chain Hoist
• Sling Type：Chain
• Lift Speed：<2m,min
• Maximum Lifting Height：3m
• Chain Falls：1
• Certification：CE
• Condition：New
• Color：Yellow or Black
• Product Name：3ton Df Manual Chain Pulley Block
• Capacity：3ton
• MOQ：5sets
• Lift Height：3m
• OEM：Yes
• Transport Package：Carton. Wooden Case
• Specification：3ton
• Trademark：DELE
• Origin：Zhejiang of China
• HS Code：8425190000
• Production Capacity：100000
• Package size per unit product：39.00cm * 19.00cm * 26.00cm
• Gross weight per unit product：26.500kg

Basic Info.

Model NO. DF-3T Type Chain Hoist Sling Type Chain Lift Speed <2m/min Maximum Lifting Height 3m Chain Falls 1 Certification CE Condition New Color Yellow or Black Product Name 3ton Df Manual Chain Pulley Block Capacity 3ton MOQ 5sets Lift Height 3m OEM Yes Transport Package Carton. Wooden Case Specification 3ton Trademark DELE Origin Zhejiang of China HS Code 8425190000 Production Capacity 100000

Packaging & Delivery

Package size per unit product 39.00cm * 19.00cm * 26.00cm Gross weight per unit product 26.500kg

Product Description

Make by Standard:EN13157
1:Chain hoist Capacity range from 0.5ton to 50 ton
2: Compact sized design product suitable for all application. 3: Suspension and load hooks are made of alloy steel,35CrMo treated heat and fitted with heavy duty safety latches, fitting groove and inspection points. 4:Machined chain sprocket and gears provide smoother,more efficient operation.
5:Hook with safety latch securely can rotate freely 360 degrees.
6: Ergonomic handle design so that the hoist is easy to operate.
7:Hoist has overload protection system.
8: Gears are made up of 20CrMnTi material ,which ensures
toughness and better strength.
9:Fitted with High strength grade 80 alloy steel load chain with galvanized finish for corrosion resistance (comply with EN 818, safety factor 4)*Load chain marked with T8 marks as per EN 818-7.
10:Heavy duty guide rollers for avoiding slippage of load chain.
11: Rugged construction featuring steel gear case and hand wheel cover for hand chain operation.
12: All hoists tested at 1.5 times of WLL.

MODEL	HSH	DF-50	DF-100	DF-150	DF-200	DF-300	DF-500	DF-1000	DF-1500
Capacity load	kg	500kg	1000kg	1500kg	2000kg	3000kg	5000kg	10000kg	15000kg
standard lift	m	3	3	3	3	3	3	3	3
load chain number of fall		1	1	1	1	1	2	3	6
force	N	240	305	340	360	370	370	380	360
running testload	kg	750	1500	2250	3000	4500	7500	15000	22500
load chain diameter x number of falls	mm	5x15	6x18	8x24	8x24	10x30	10x30	10x30	10x30
hang chain diameter x number of falls	mm	5x25	5x25	5x25	5x25	5x25	5x25	5x25	5x25
net weight	kg	5.7	11	17	17	26	40	73	160
Paking weight	kg	6	11.5	17.6	17.6	26.5	40.6	73.6	180
packing size	cm	27.5x14.5x15.5	28x17x18.5	31x17.5x22	31x17.5x22	39x19x26	44x24x26	58x46.5x24.5	47×42×70
add 1m load chain N.W	(kg/m)	0.541	0.77	1.36	1.36	2.2	4.4	6.6	13.2
add 1m hand chain N.W	(kg/m)	0.9	0.9	0.9	0.9	0.9	0.9	0.9	1.8

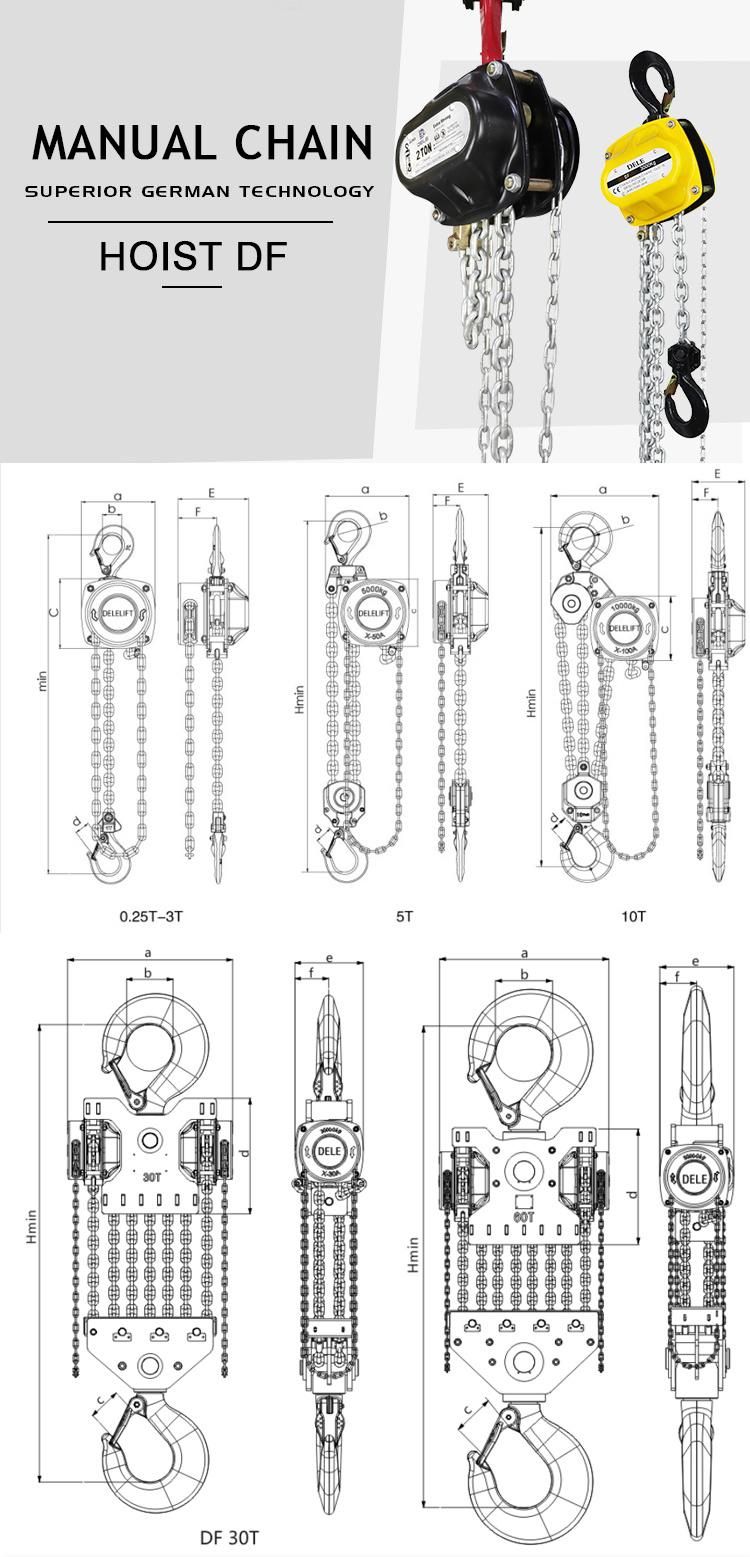

Dimensions(mm)	a	122	152	176	176	216	216	244	441
	b	34	40	52	52	62	65	70	120
	c	118	145	170	170	204	204	204	66
	d	31	31	41	41	45	51	54	400
	e	119	145	157	157	167	167	167	222
	f	65	79	81	81	83	83	83	110
	Hmin	311	361	443	443	431	660	705	1094



MODEL	HSH	DF-2000	DF-3000	DF-5000
Capacity load	kg	20000kg	30000kg	50000kg
standard lift	m	3	3	3
load chain number of fall		8	12	12
force	N	380	400	390
running testload	kg	30000	45000	75000
load chain diameter x number of falls	mm	10×30	10×30	11.2×31
hang chain diameter x number of falls	mm	5×25	5x25	5×25
net weight	kg	125	258	425
Paking weight	kg	200	285	4654
packing size	cm
add 1m load chain N.W	(kg/m)	17.6	26.4	30
add 1m hand chain N.W	(kg/m)	1.8	1.8	1.8
Dimensions(mm)	a	429	533	570
	b	125	150	190
	c	105	105	125
	d	376	373	445
	e	222	220	279
	f	113	109	140
	Hmin	1100	1139	1500

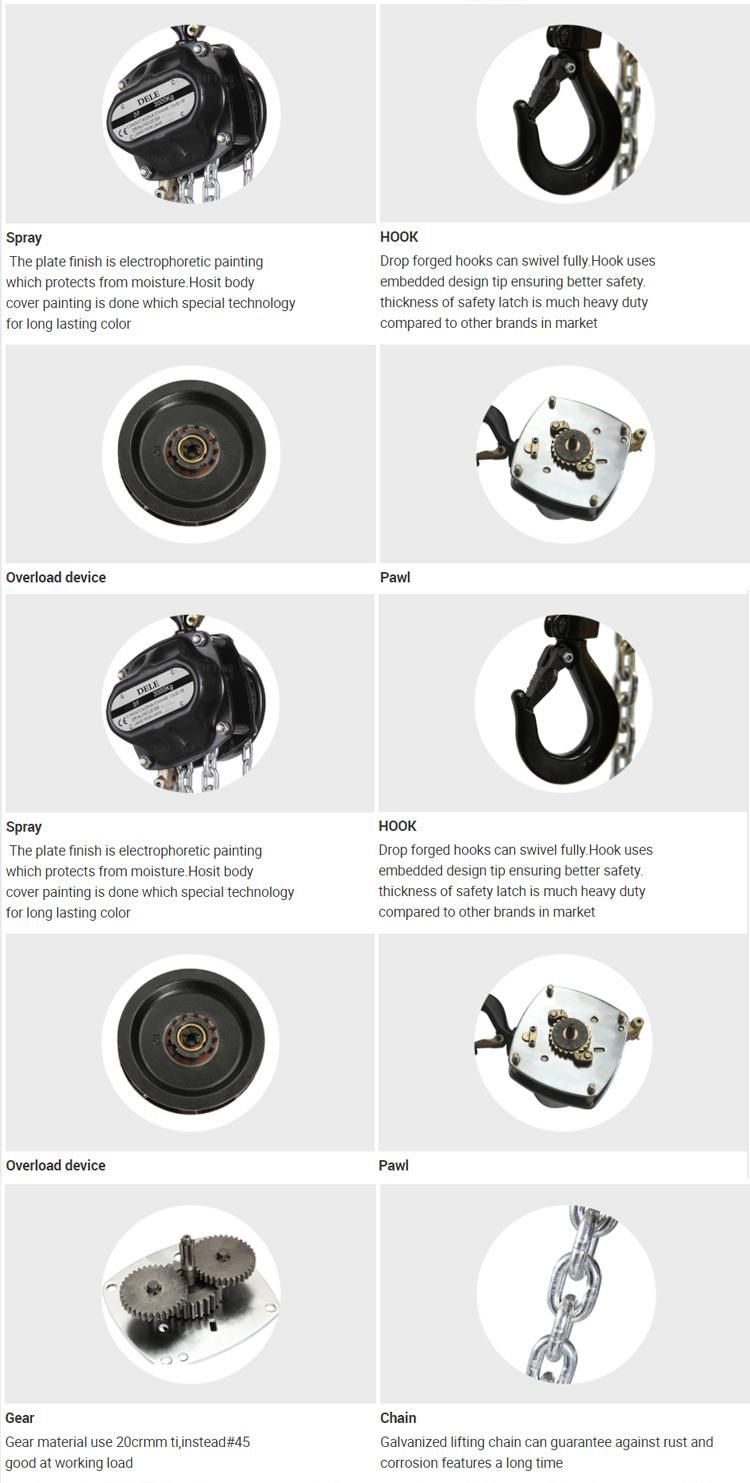

Details Images

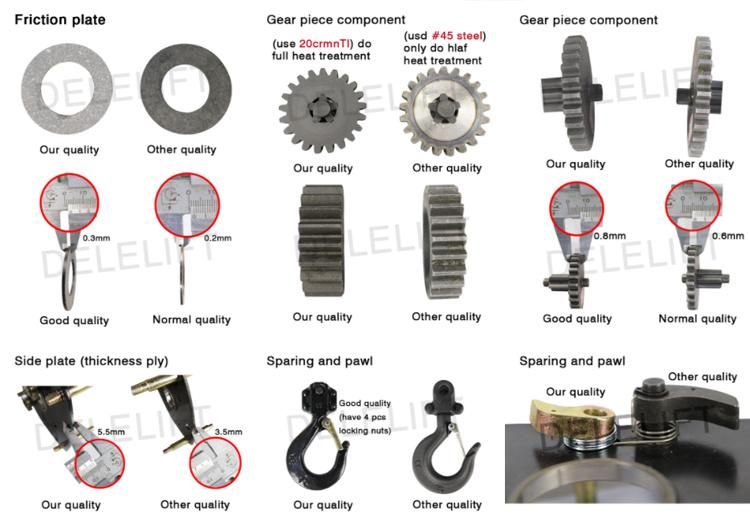

The Quality comparison of spare parts

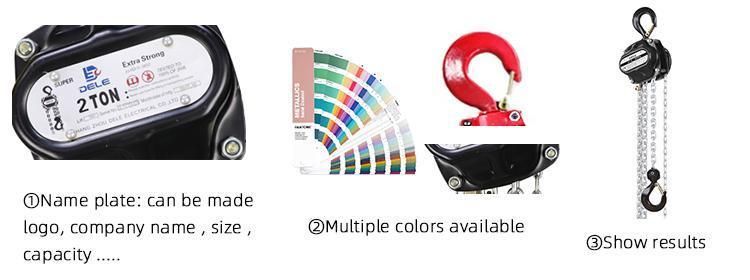

Customized Service

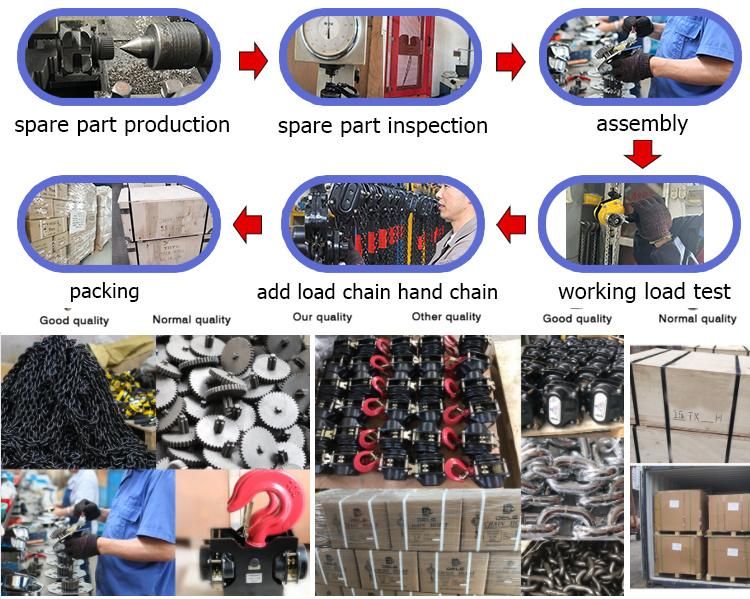

Production process


Certifications

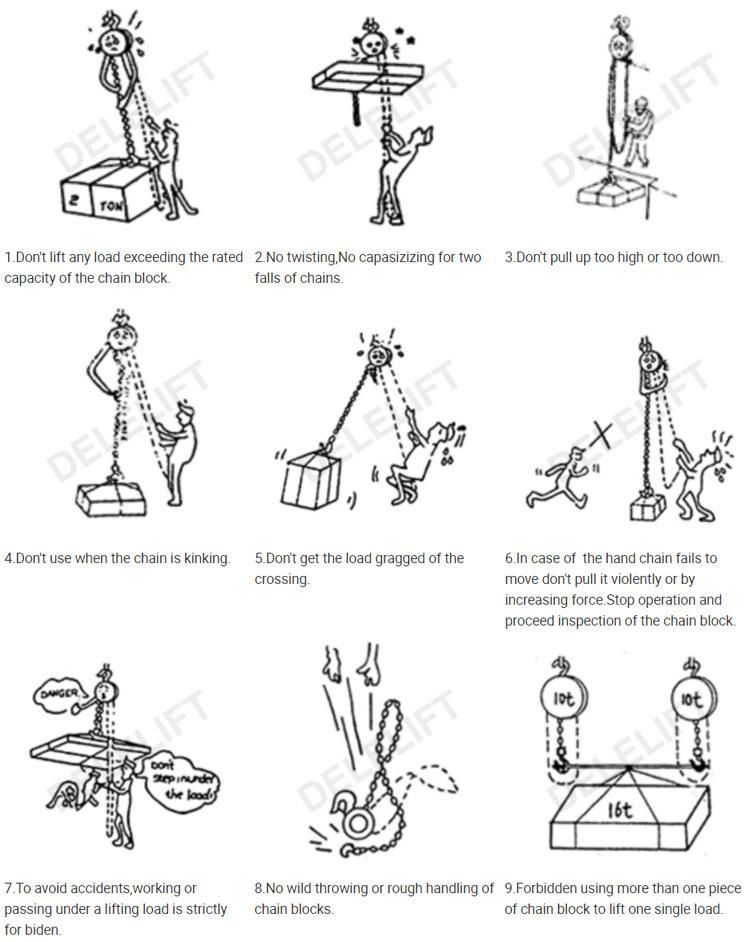

Usage

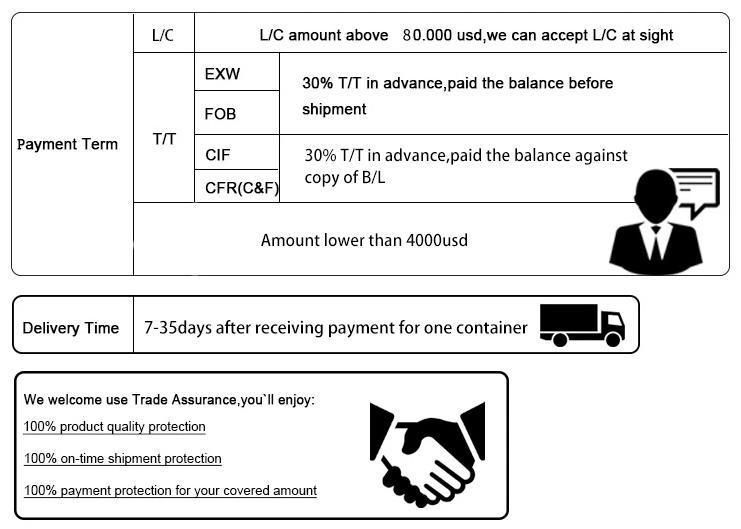

Payment


Our Service


FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?

Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.

Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.

Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.

Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.

Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.

Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
