• Model NO.：KD-T23
• Feature：Insulating
• Certification：CE, ISO 9001
• Working Height：24m
• Platform Height：23m
• Safe Load：200kgs
• Size of Platform：1.2*0.8*1.1m
• Outreach：12.0m
• Rotation of Jib：180°
• Rotation of Work Cage：180°
• Rotation Range：360°
• Overall Length ：6.8m
• Total Weight ：5950kg
• Transport Package：Nude
• Specification：CE
• Trademark：KUDAT
• Origin：China
• HS Code：8428909090
• Production Capacity：100units,Month

Basic Info.

Model NO. KD-T23 Feature Insulating Certification CE, ISO 9001 Working Height 24m Platform Height 23m Safe Load 200kgs Size of Platform 1.2*0.8*1.1m Outreach 12.0m Rotation of Jib 180° Rotation of Work Cage 180° Rotation Range 360° Overall Length  6.8m Total Weight  5950kg Transport Package Nude Specification CE Trademark KUDAT Origin China HS Code 8428909090 Production Capacity 100units/Month

Product Description

KD-R38 Main Specification:

1.Technical data

Type	KD-T23
working height  (m)	24.00
Platform height  (m)	23.00
Safe load     (kg)	200
Size of platform  (m)	1.2×0.8×1.1
Outreach (m)	12.00
Rotation of jib	180°
Rotation of work cage	180°
Turntable Rotation	360° non continuous
Overall length     (m)	6.80
Overall width      (m)	0.92
Overall height     (m)	2.00
Total weight       (kg)	5950
Speed      (km/h)	0-1.5
Climbing	20%
Power	15KW Diesel engine + 2.2KW electric motor

2. Specification
-Made of high strength steel, and the European production of hydraulic, control, parts;
-Pipeline all the built-in, to avoid the sun and rain or foreign objects tangled;
-Shape lightweight, low pressure rubber tracks on the ground, can travel, work on any ground;
-Outrigger separately controlled to bypass obstacles in a limited space work;
-Reliable torque control to ensure that the vehicle will not roll;
-Wired remote control walks, working bucket with 220V outlet;
-Small size, compact and flexible;

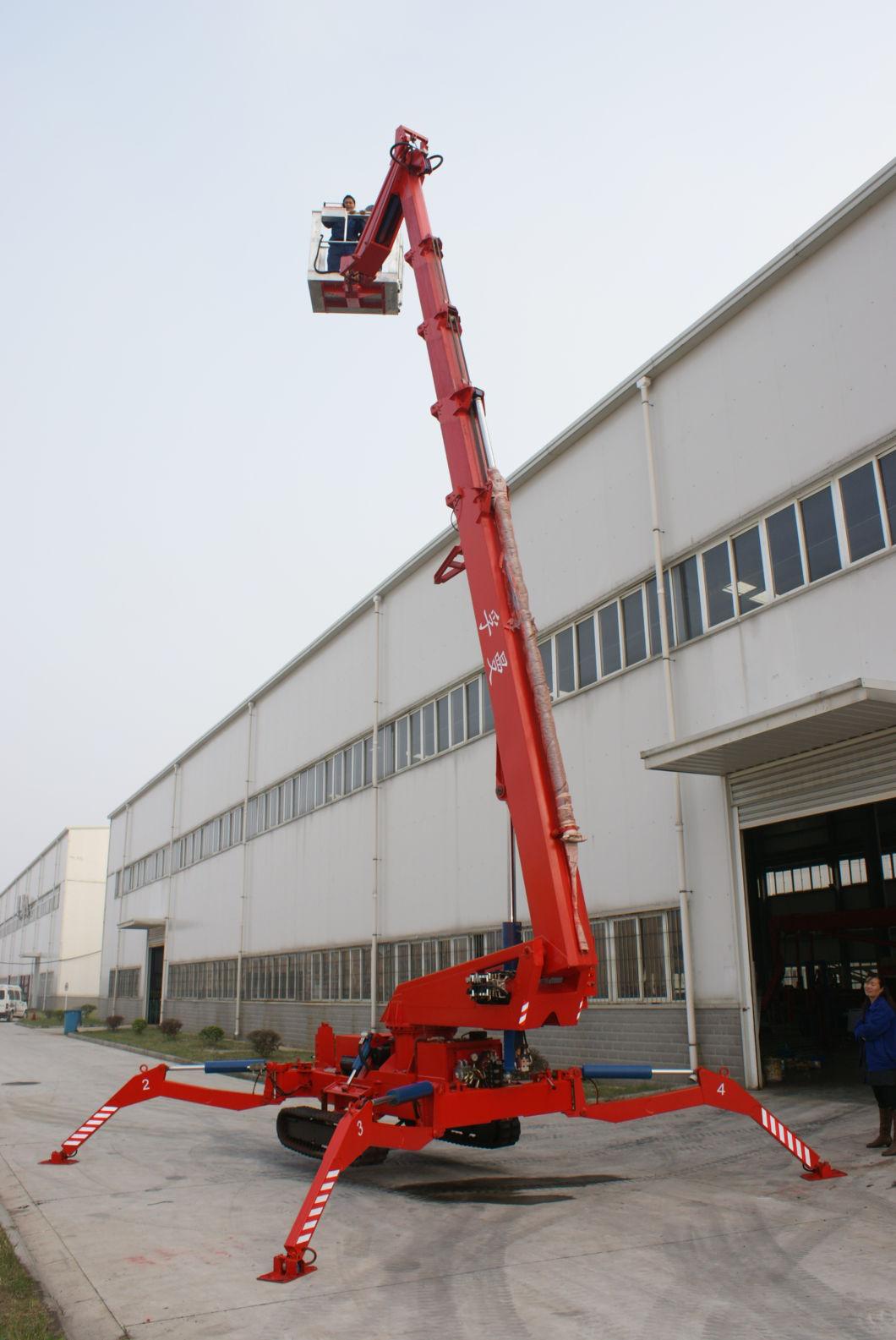

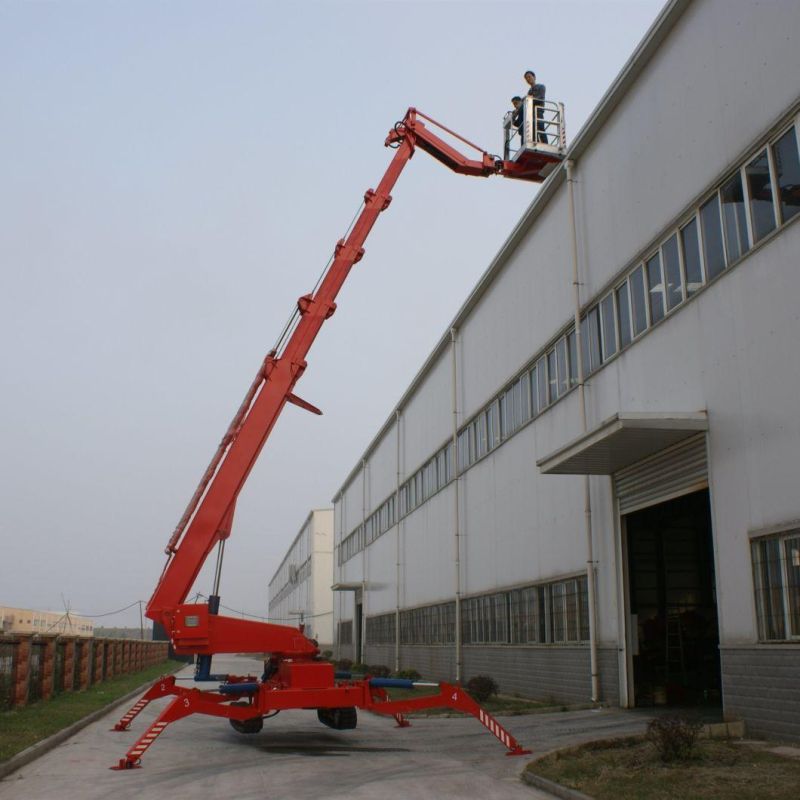

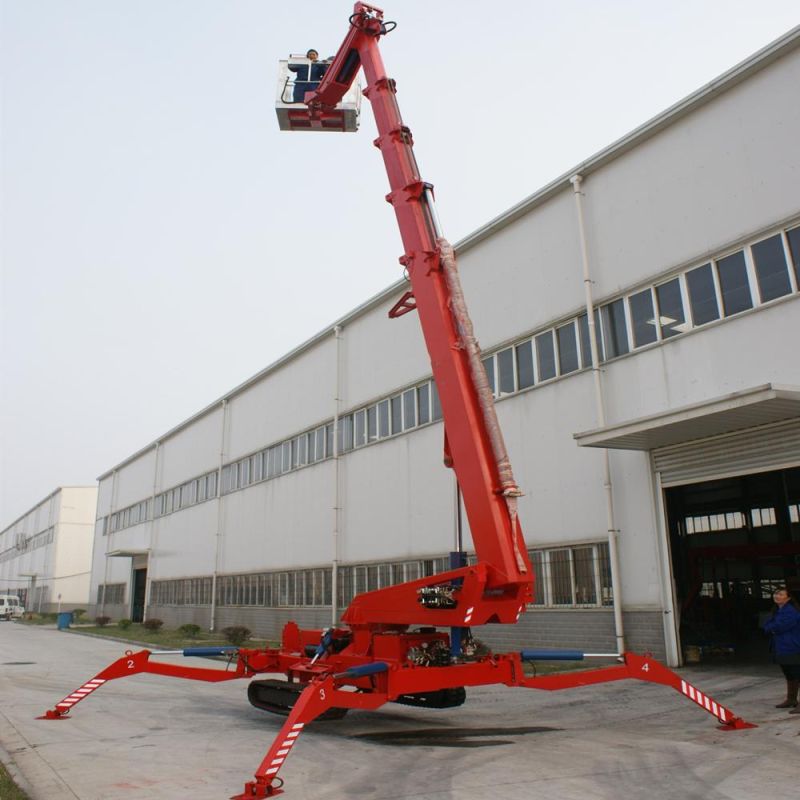

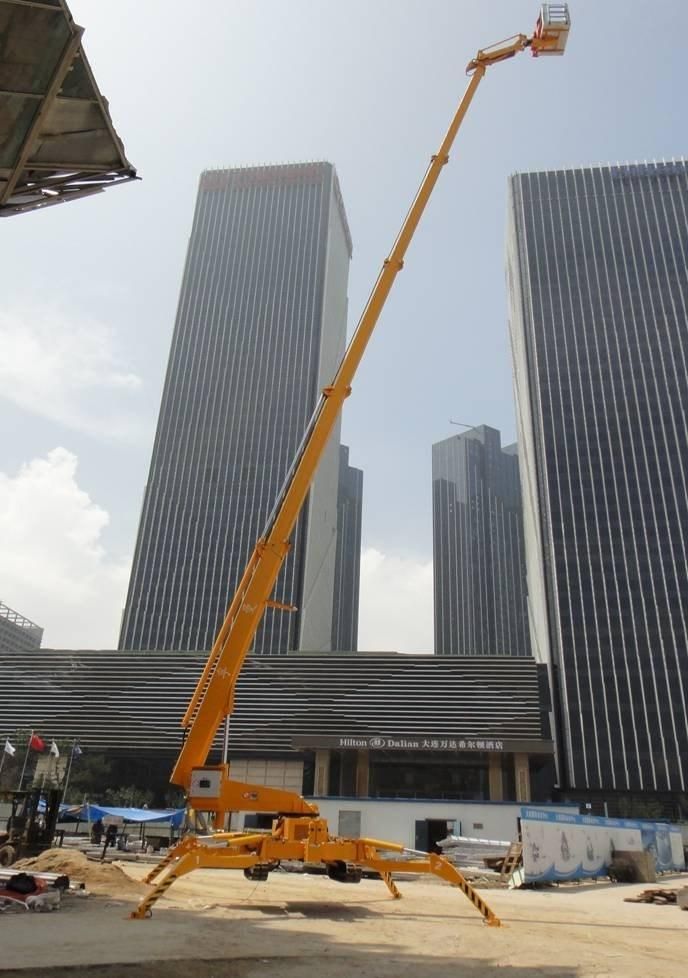

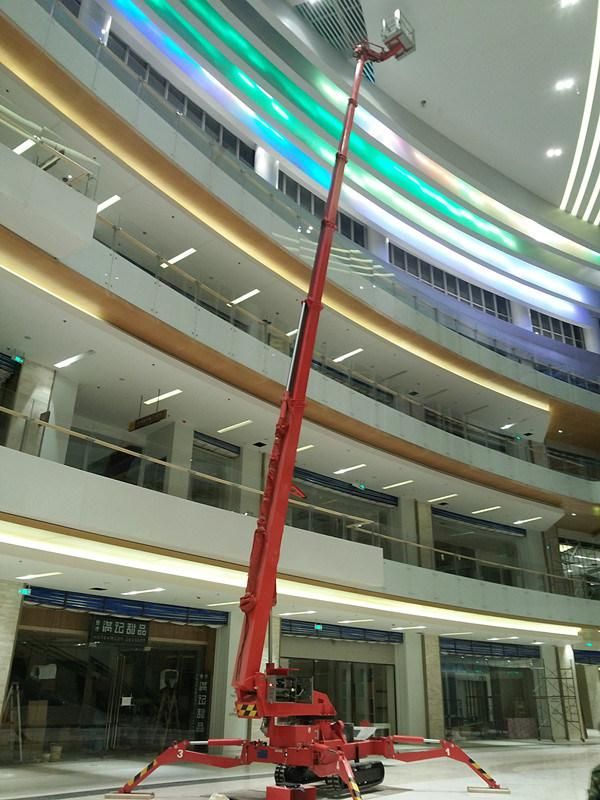

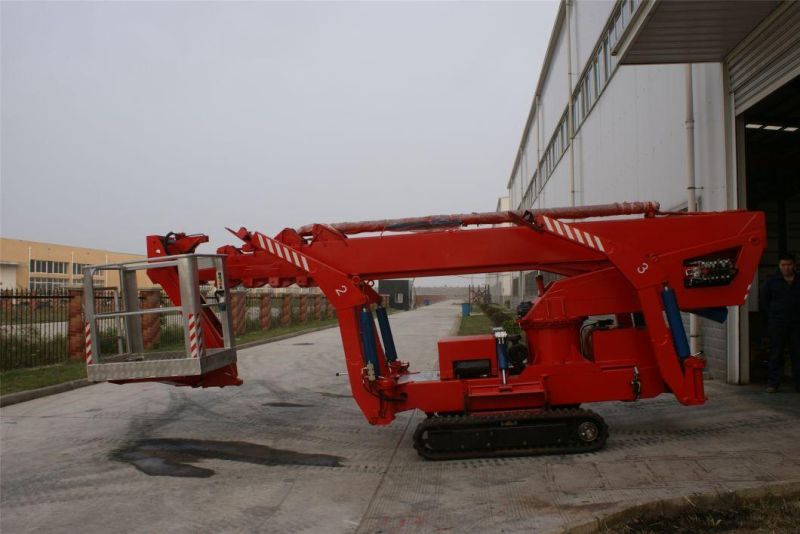

3. Picture
