• Model NO.：VIT
• Running Mode：Moving
• Feature：Portable
• Certification：CE
• Standard：National Standards, Nonstandard
• Name：Hot Style Compact Pulling Tool Outdoor Used Wire R
• Factory：More Than 20 Years Manufactory Experience
• Loading Port：Shanghai Port Tianjin Port
• Warranty：2 Years
• Brand：Hugo
• Net Weight：23 Kg
• Applications：Normal Working Environment
• Painting Color：as Your Order
• After-Sales Service Provided：Overseas Service Provided
• Quantity Control：According to EU Standard
• Transport Package：Packed by Carton, Woodon Case
• Specification：CE, ISO, TUV, SGS
• Trademark：HUGO
• Origin：China-Shanghai
• HS Code：8425190000
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. VIT Running Mode Moving Feature Portable Certification CE Standard National Standards, Nonstandard Name Hot Style Compact Pulling Tool Outdoor Used Wire R Factory More Than 20 Years Manufactory Experience Loading Port Shanghai Port Tianjin Port Warranty 2 Years Brand Hugo Net Weight 23 Kg Applications Normal Working Environment Painting Color as Your Order After-Sales Service Provided Overseas Service Provided Quantity Control According to EU Standard Transport Package Packed by Carton, Woodon Case Specification CE, ISO, TUV, SGS Trademark HUGO Origin China-Shanghai HS Code 8425190000 Production Capacity 100000PCS/Month

Product Description

                              Manual lever Hoist with Wire Rope


Introduction of VIT lever hoist

The introduction of Hot style Compact Pulling Tool Outdoor Used Wire Rope Lever Hoist
Certification: ISO, CE, TUV, SGS

Standard lifting height: According the inquiry.

1)Capacity from 0.8T to 3.2T

2)High quality aluminium body

3)Overload protection

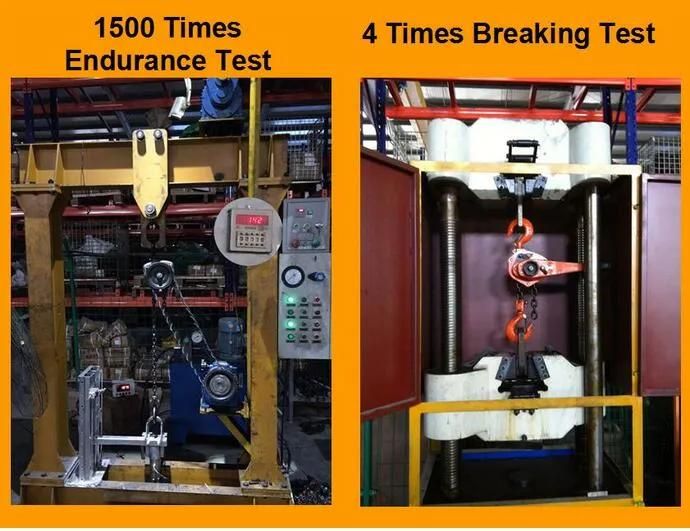

4)four times tested before packed, it is safty and using.

The specifications of Wire Rope Hoist

It has such distinct merits as small cubage, light weight, beautiful appearance, small manual force, safety

And reliability. And long opertional life-span, It is especially used in occasion without power source such

As shipbuilding, post office, mines, electric power, and transportation units in heavy goods

Suspending, equipment fixing, mechanism traction, and aerial exercise, it can rapidly unhitch brake

Equipment under unloaed condition. So that the flying hook can remove fleetly, we also can choose and

Add structure without light load limit according to the needs of clients.

It is a kind of newly designed, uncomplicated structured, convenient-to-use lever hoist with the function of adjusting the beneath-hook quickly, safe and reliable. Its new style, beautiful body, good braking performance and high working efficiency enable it to be able to be widely used in factory, mineral, building site, Harbor and transportation areas and so on. It is the ideal equipment for Equipment installation.

Parameters of VIT Wire Rope Lever Hoist


Model	HX-800	HX-1600	HX-3200
Rated  capacity        (kg)	800	1600	3200
Rated  forward  hand  power            N	343	441	441
Rated  forward  travel          mm	>   52	>   55	>   28
Rope  diameter      mm	8.3	11	16
load  capacity	5	5	5
Load  capacity	5	5	5
Max  traveling  load  kg	1200	2400	4000
Net  weight        (kg)	6	11	22

Factroy View



Our CE Certificate & Service
