• Model NO.：WL-UVL-1300II
• Certification：CE
• Platform Size：1220*751mm,1220*800mm
• Loading Capacity：300kg
• Max Lifting Height：1400 Mm
• Overall Length：1867-2015mm
• Overall Width：1135mm
• Overall Height：133mm
• Door Width Required：1100mm
• Option：Handrail
• Safety：Anti-Skip Platform
• Transport Package：Wooden Box
• Specification：CE certificate, 180kg
• Trademark：xinder
• Origin：Jiangsu. China
• HS Code：84289090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. WL-UVL-1300II Certification CE Platform Size 1220*751mm/1220*800mm Loading Capacity 300kg Max Lifting Height 1400 Mm Overall Length 1867-2015mm Overall Width 1135mm Overall Height 133mm Door Width Required 1100mm Option Handrail Safety Anti-Skip Platform Transport Package Wooden Box Specification CE certificate, 180kg Trademark xinder Origin Jiangsu. China HS Code 84289090 Production Capacity 100 PCS/Month

Product Description

1. INFORMATION

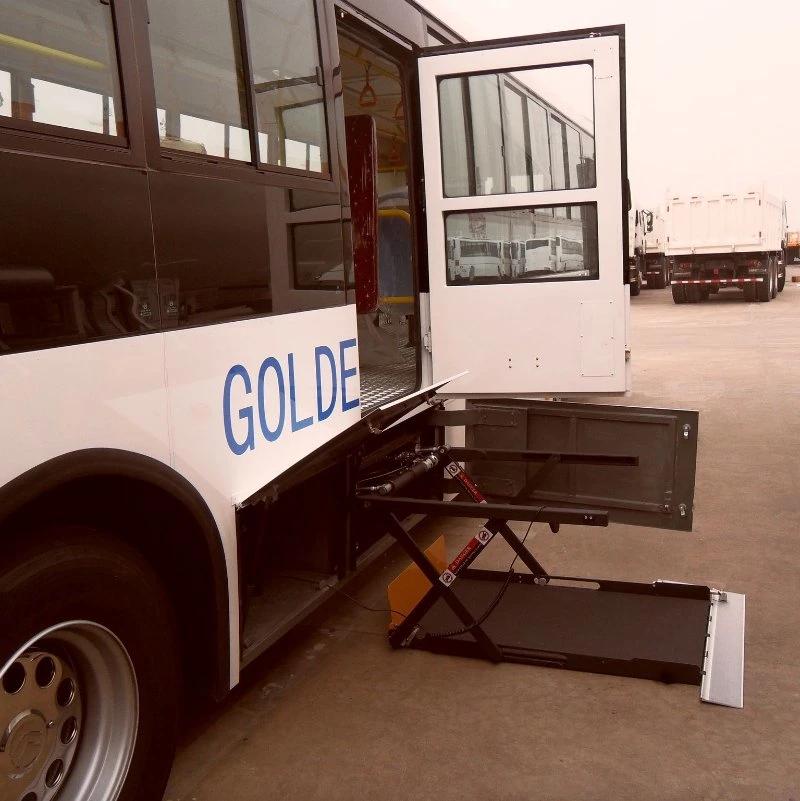

WL-UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 300KG. The wheelchair occupant, attendant or driver can operate it by operating switches.

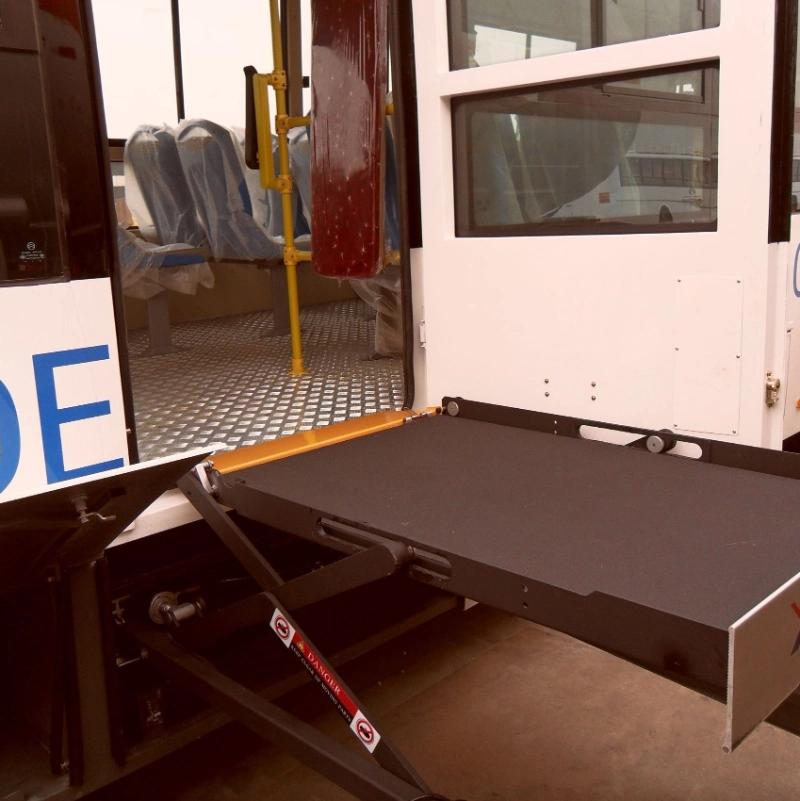

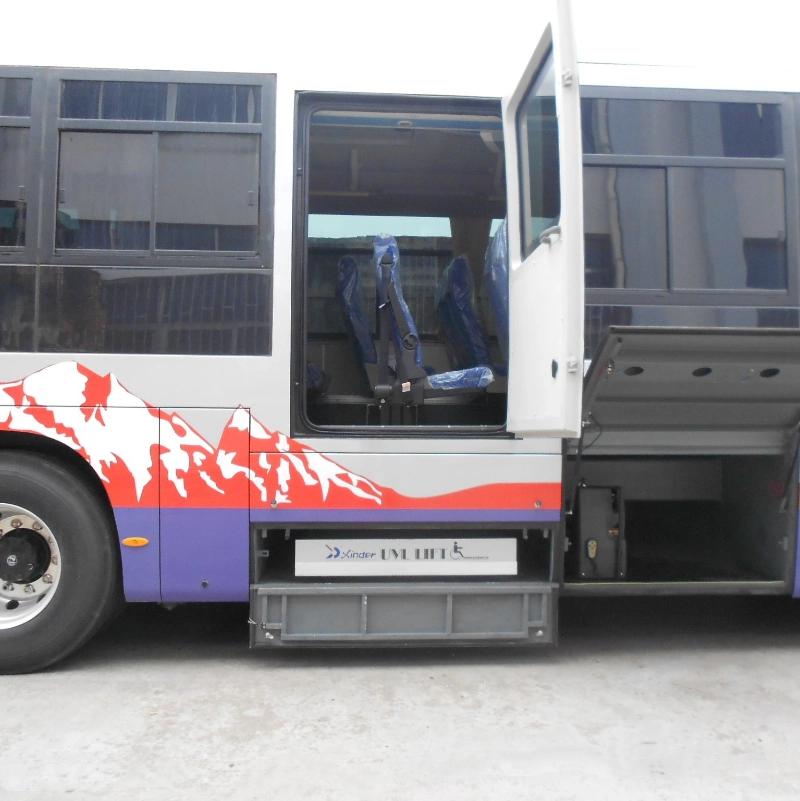

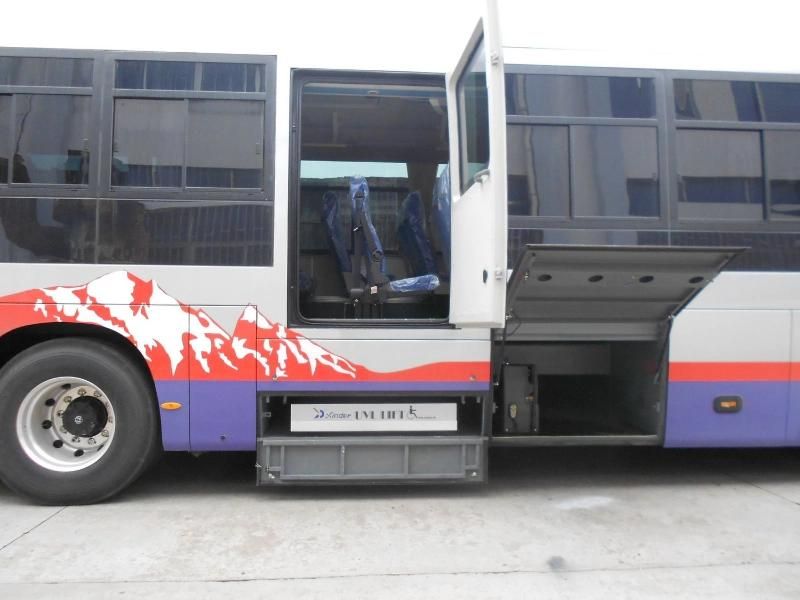

This wheelchair lift platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway. There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down.

2. ADVANTAGES
Ø  Electric outboard rollstop and automatic inboard rollstop
Ø  Super thin compact design
Ø  No-skid aluminum honeycomb platform
Ø  Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs

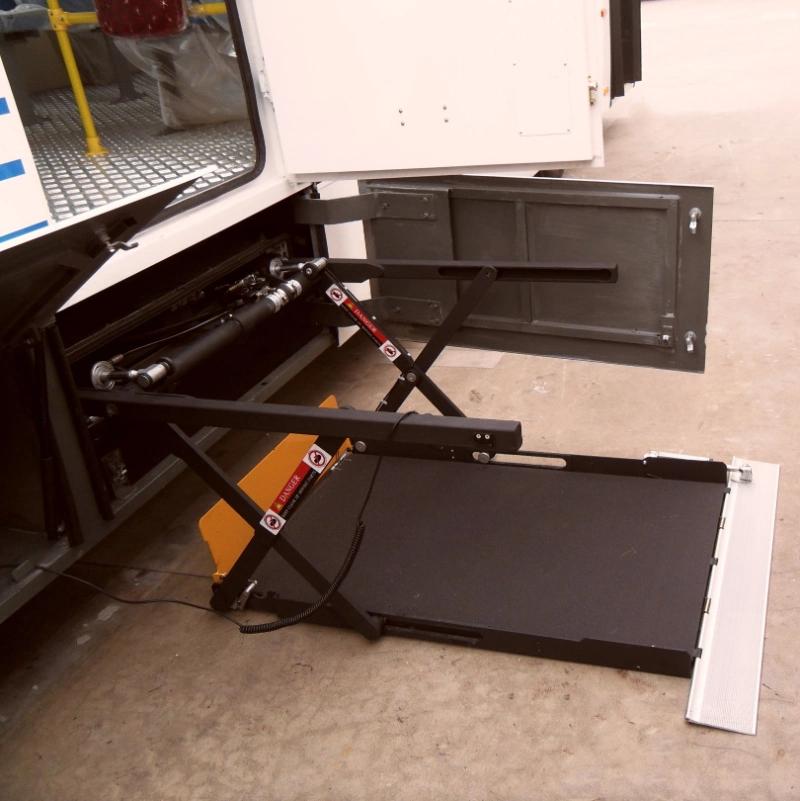

Ø  Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.

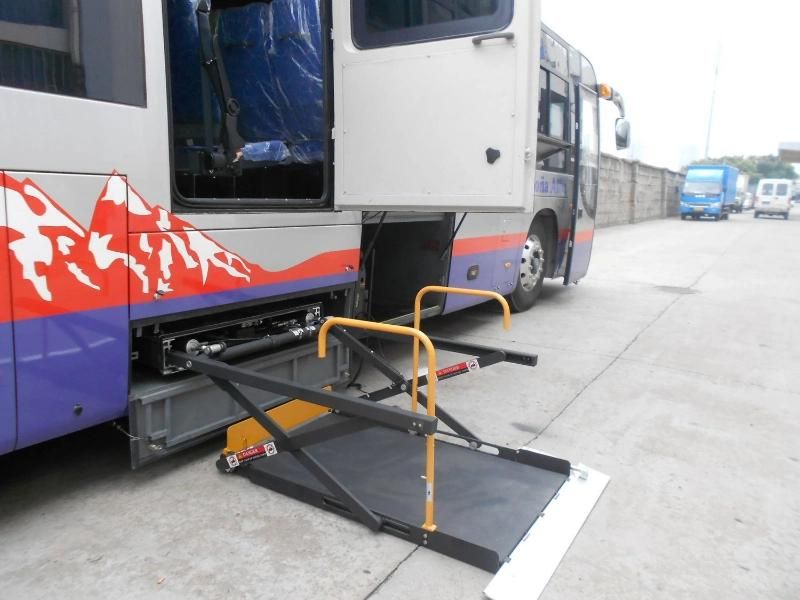

Ø  Side handrails (Option), for increased comfort and security
Ø  Sound and flash light alarm during operation of platform
Ø  Built in manual backup system

3. TECHNICALS
Ø  Raise lift platform: motor drive, hydraulic function;
Ø  Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;
Ø  Raise platform manually: operate manual pump;
Ø  Lower platform manually: rotate button of manual pressure release valve with specialized tool;
Ø  Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);
Ø  Model & Capacity of hydraulic oil: L-HV46

model	platform	dimension	max up stroke	max down stroke	loading capacity	volt	MAX LIFTING HEIGHT
WL-UVL-1300	751*1297	2015*1135*167	760	655	300KG	12-24V	1415mm
WL-UVL-1300-S	751*1297	1887*1135*167	760	655	300KG	12-24V	1415mm
WL-UVL-1300II	751*1297	1974*1135*167	540	750	300KG	12-24V	1290mm
