• Model NO.：BMWR-301
• Feature：Aluminum Wheelchair Ramp
• Certification：Iatf16949
• Platform：Net 2240*810mm
• Fold or Unfold：Foldable
• Loading Capacity/Rate：350kg
• Own Weight：40kg
• Base Width：967mm
• Height When Stowed：850mm
• Platform Width：810mm
• Depth：260mm
• Transport Package：Wooden Case
• Specification：40kg
• Trademark：Xinder
• Origin：China
• HS Code：84289090
• Production Capacity：1000 , Year

Basic Info.

Model NO. BMWR-301 Feature Aluminum Wheelchair Ramp Certification Iatf16949 Platform Net 2240*810mm Fold or Unfold Foldable Loading Capacity/Rate 350kg Own Weight 40kg Base Width 967mm Height When Stowed 850mm Platform Width 810mm Depth 260mm Transport Package Wooden Case Specification 40kg Trademark Xinder Origin China HS Code 84289090 Production Capacity 1000 / Year

Product Description

INTRODUTION:

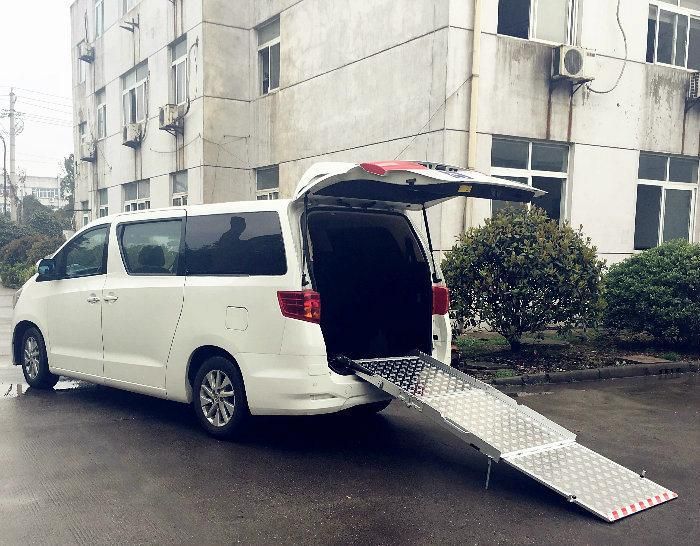

This BMWR-3 series wheelchair ramp can be used for van and minivan.

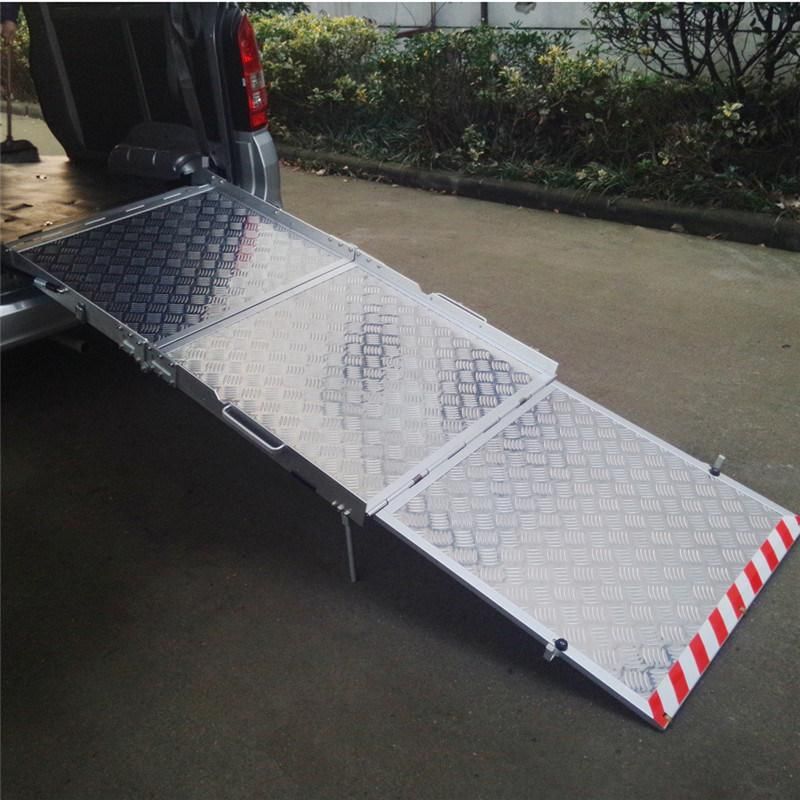

This ramp consists of three honeycombs penal which are hinged joint to fold and unfold. One of the advantages of this ramp is that the operation is completely manual, which is simple, easy, and safety. This is the best choice for the vehicle which floor is a little high and installation space is limited.
The ramp is mainly made from aluminum profile and honeycombs penal. We apply honeycombs penal with figure, which has the advantages of anti-skidding, light weight, high-load capability and so on.
There are air springs at the sides of ramp, which can make the operation easy, and avoid ramp unfolding by itself when emergency brake. There are two supports under the second ramp, which can ensure the reliability.
Because of the compact design, this ramp can be used for mini-vehicle such as wagon, light-van, van, and minivan and so on.

OPERATION:
A. This ramp is locked by two buckles which are at the two sides of ramp. When needed, the operator should unlock the two buckles first.

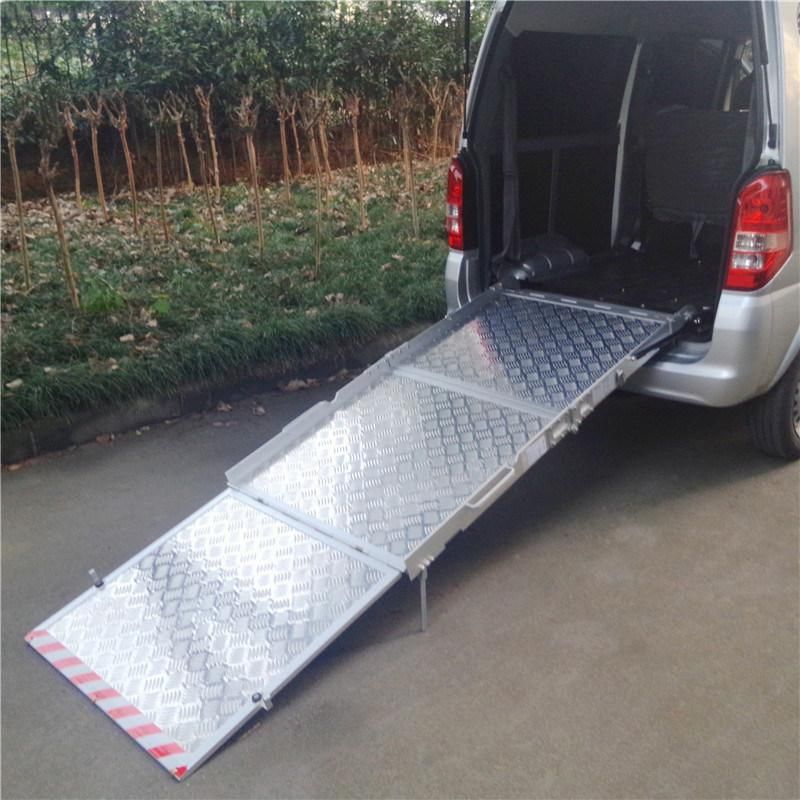

B. After the buckles are unlocked, hold the handrail and pull the ramp forward, so that the two pieces of ramps will form a slop which can help wheelchair get into/out of vehicle.
C. After the wheelchair get into/out of vehicle, fold the two pieces of ramps, and then lock the two buckles. This is the end of the operation

ADVANTAGES
This ramp is operated manually which is safety.
There are two gas springs at the two sides of ramp, which make the operation easy.

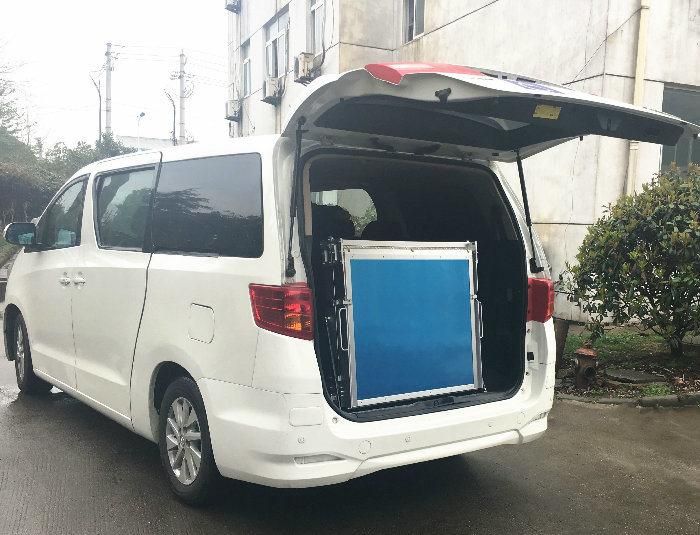

There is a setscrew at the bottom of ramp which can ensure the ramp vertical under the condition of being stowed. Also the setscrew can avoid ramp unfolding by itself. This is one of the safe equipments.



model	platform	overall width	overall length	overall height	loading rate	own weight
BMWR-301	2240*810mm	880mm	265mm	850mm	350kg	50 kg
