3m 4m Hydraulic Aluminum Wheelchair Elevator Home Lift for Sales
Jinan PLK Machinery Co., Ltd.- Application：Wheelchair Elevator
- Lift Mechanism：Lift Chain
- Carrying Capacity：Middle-Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Rated Loading Capacity：250kg 300kg
- Min. Platform Height：80mm
- Max. Platform Height：1m-7m
- Platform Size：1430X1000mm or Customize
- Warranty：12 Months
- Guiderail Material：Aluminum Alloy Good Anti Corrosion
- Control Mode：Automatic Travel Switch
- Machine Weight：500-1300kg
- Enter/Exit Way：90 or 180 Degree Direction
- Voltage：110V, 220V, 240V, 380V, 400V Customize
- Motor Power：1.1kw - 2.2kw
- Lifting Speed：0.06~0.1m,S
- Control Voltage：24V DC
- Drive System：Hydraulic Pump Station and Electric Motor
- Safety Sensor：Platform Stop Lowering Immediately If Any Obstacle
- Transport Package：Wooden Box
- Specification：2000*1430*1300mm
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：1000
Description
- One control panel on the platform
- Install two column switches on ground, which can be fixed at any floor needed.
- Remote control, user can operate lift within 20m.
2. Photos Review:
Features and Advantages:
1. Aluminum Alloy material with great anti corrossion function.
2. High quality pump station make the wheelchair lifts and falls very stably.
3. Automatical Safety sensor at bottom stop lowering when come accorss barrier.
4. Electric magnetic lock works during lifting and lowering to guarantee safety.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.

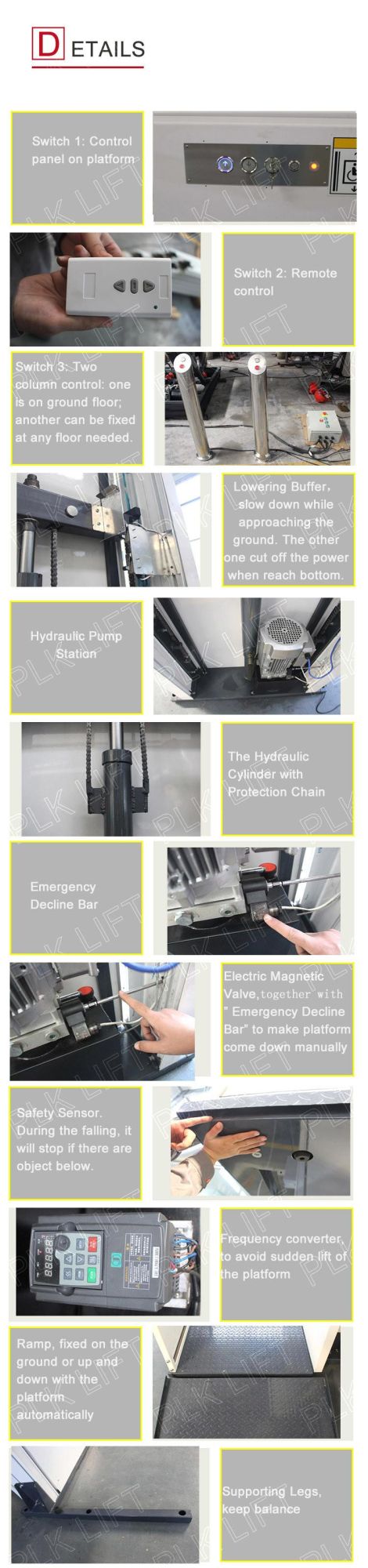

3. Details Display:

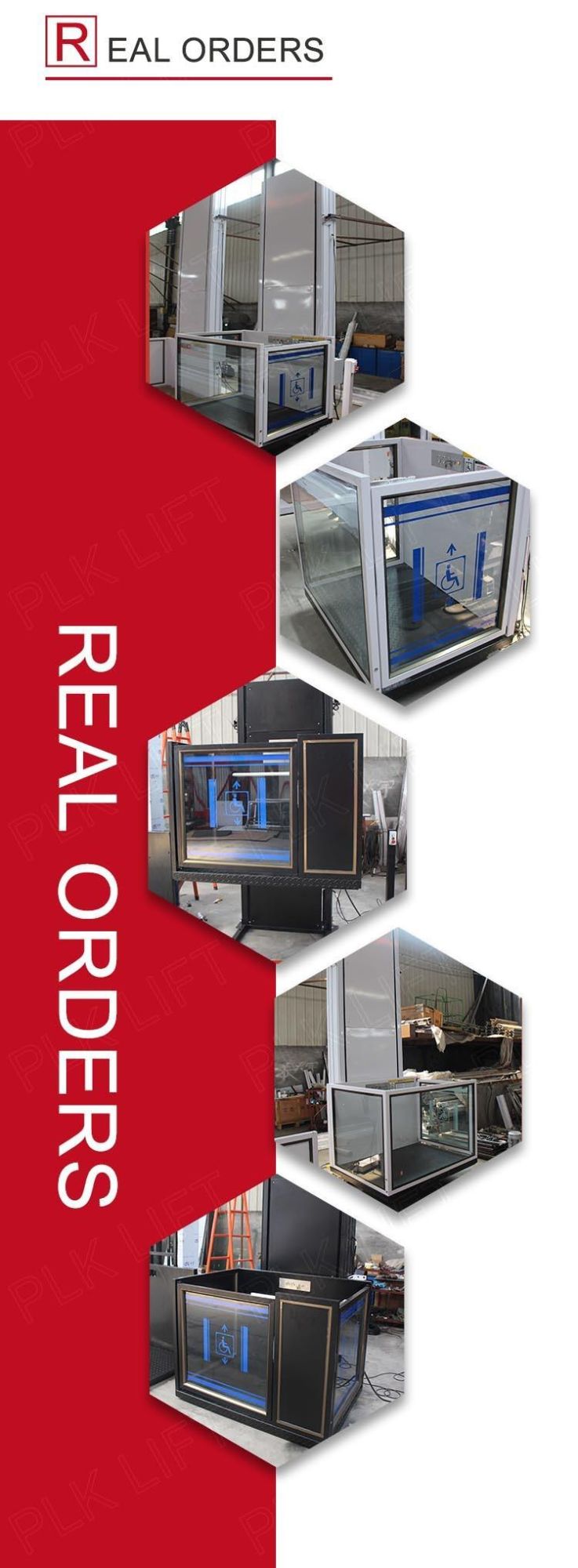

4. Real Orders Show: (We produce our wheelchair lift for both home and abroad, quality is good.)
5. Welcome to visit our factory and place the order with us.
